| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-R250PTC RESET FUSE 30V 2.5A RADIAL |
8,788 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 10.3 s | 25 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.472 L x 0.118 W (12.00mm x 3.00mm) | 0.720 (18.30mm) | - |
|
MF-RX185/72-0PTC RESET FUSE 72V 1.85A RADIAL |
57,443 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.701 L x 0.122 W (17.80mm x 3.10mm) | 0.902 (22.90mm) | - |
|
MF-R400PTC RESET FUSE 30V 4A RADIAL |
19,554 | 0.52 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.567 L x 0.118 W (14.40mm x 3.00mm) | 0.976 (24.80mm) | - |
|

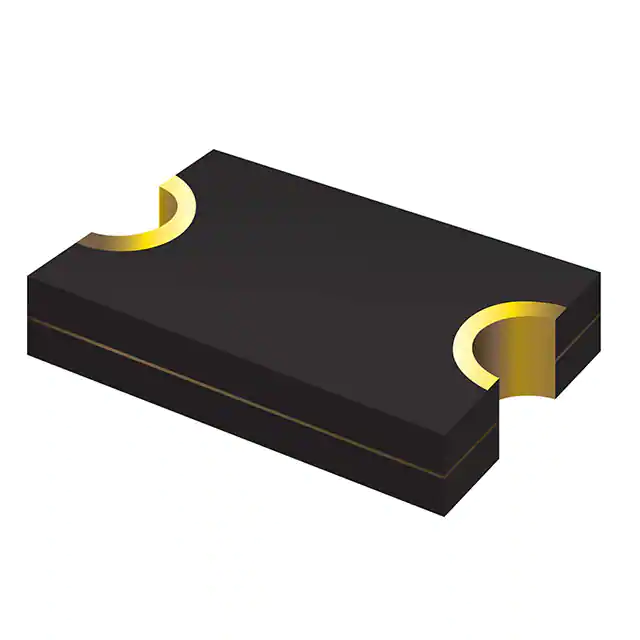

MF-FSML050/8-2PTC RESET FUSE 8V 500MA 0603 |
27,283 | 1.29 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-FSML | Active | Polymeric | 8V | 50 A | 500 mA | 1 A | 60 ms | 60 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.065 L x 0.033 W (1.65mm x 0.85mm) | - | 0.028 (0.70mm) |
|
MF-ASML010/6-2PTC RESET FUSE 6V 100MA 0402 |
56,624 | 1.45 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-ASML/X | Active | Polymeric | 6V | 50 A | 100 mA | 300 mA | 1 s | 150 mOhms | 3 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
|
MF-ASML050/6-2PTC RESET FUSE 6V 500MA 0402 |
26,307 | 1.45 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-ASML/X | Active | Polymeric | 6V | 50 A | 500 mA | 1 A | 100 ms | 500 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
MF-GSMF300/36X-2PTC RESET FUSE 36V 3A SMD |
12,078 | 1.42 |
RFQ |
Datasheet |
Nonstandard SMD | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-GSMF | Active | Polymeric | 36V | 20 A | 3 A | 5.2 A | 20 s | 10 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.341 L x 0.250 W (8.65mm x 6.35mm) | - | 0.063 (1.60mm) |
|
MF-S350PTC RESET FUSE 30V 3.5A STRAP |
18,531 | 0.63 |
RFQ |
Datasheet |
Strap | Bulk | Multifuse®, MF-S | Active | Polymeric | 30V | 100 A | 3.5 A | 6.3 A | 3 s | 17 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.185 L x 0.522 W (30.10mm x 13.25mm) | - | 0.043 (1.10mm) |
|
MF-RX160/72-2PTC RESET FUSE 72V 1.6A RADIAL |
140,638 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.642 L x 0.122 W (16.30mm x 3.10mm) | 0.839 (21.30mm) | - |
|
|
MF-R900PTC RESET FUSE 30V 9A RADIAL |
6,232 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.953 L x 0.118 W (24.20mm x 3.00mm) | 1.295 (32.90mm) | - |
|
MF-RX375/72-0PTC RESET FUSE 72V 3.75A RADIAL |
4,754 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.926 L x 0.122 W (23.51mm x 3.10mm) | 1.161 (29.50mm) | - |
|
MF-RM016/240-2PTC RESET FUSE 240V 160MA RADIAL |
3,530 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-RM | Active | Polymeric | 240V (265V Int) | 2 A | 160 mA | 370 mA | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.390 Dia x 0.150 T (9.90mm x 3.80mm) | 0.543 (13.80mm) | - |
|
MF-USMF110-2PTC RESET FUSE 6V 1.1A 1210 |
38,487 | 0.34 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-USMF | Active | Polymeric | 6V | 40 A | 1.1 A | 2.2 A | 1 s | 50 mOhms | 210 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.033 (0.85mm) |
|
MF-PSMF075X-2PTC RESET FUSE 6V 750MA 0805 |
35,493 | 0.32 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-PSMF | Active | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.049 (1.25mm) |
|
MF-PSMF020X-2PTC RESET FUSE 9V 200MA 0805 |
4,578 | 0.32 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-PSMF | Active | Polymeric | 9V | 40 A | 200 mA | 500 mA | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.033 (0.85mm) |
|
MF-R010-2PTC RESET FUSE 60V 100MA RADIAL |
16,895 | 0.36 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-R | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
.JPG)
|
MF-NSMF035-2PTC RESET FUSE 6V 350MA 1206 |
19,889 | 0.36 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSMF | Active | Polymeric | 6V | 100 A | 350 mA | 750 mA | 100 ms | 300 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) |
|
|
MF-PSMF050X-2PTC RESET FUSE 6V 500MA 0805 |
59,121 | 0.34 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-PSMF | Active | Polymeric | 6V | 40 A | 500 mA | 1 A | 100 ms | 150 mOhms | 900 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.033 (0.85mm) |
|
|
MF-NSMF110-2PTC RESET FUSE 6V 1.1A 1206 |
95,081 | 0.34 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSMF | Active | Polymeric | 6V | 100 A | 1.1 A | 2.2 A | 100 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.028 (0.70mm) |
|
|
MF-NSMF200-2PTC RESET FUSE 6V 2A 1206 |
24,752 | 0.34 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSMF | Active | Polymeric | 6V | 100 A | 2 A | 4 A | 1 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.128 L x 0.063 W (3.25mm x 1.60mm) | - | 0.063 (1.60mm) |
