| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-NSML350/12-2PTC RESET FUSE 12V 3.5A 1206 |
3,054 | 0.94 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSML/X | Active | Polymeric | 12V | 50 A | 3.5 A | 7 A | 5 s | 2 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.063 W (3.25mm x 1.60mm) | - | 0.055 (1.40mm) |
|
|
MF-NSML300/12-2PTC RESET FUSE 12V 3A 1206 |
2,796 | 0.94 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSML/X | Active | Polymeric | 12V | 50 A | 3 A | 6 A | 5 s | 3 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.063 W (3.25mm x 1.60mm) | - | 0.055 (1.40mm) |
|
MF-USHT010KX-2PTC RESET FUSE 30V 100MA 1210 |
2,070 | 0.94 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-USHT | Active | Polymeric | 30V | 20 A | 100 mA | 500 mA | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.033 (0.85mm) |
|
MF-R600-2PTC RESET FUSE 30V 6A RADIAL |
1,998 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.760 L x 0.118 W (19.30mm x 3.00mm) | 1.256 (31.90mm) | - |
|
|
MF-USHT020KX-2PTC RESET FUSE 30V 200MA 1210 |
1,924 | 0.94 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-USHT | Active | Polymeric | 30V | 20 A | 200 mA | 1 A | 100 ms | 600 mOhms | 5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.033 (0.85mm) |
|
|
MF-NSML150/12-2PTC RESET FUSE 12V 1.5A 1206 |
1,626 | 0.94 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSML/X | Active | Polymeric | 12V | 50 A | 1.5 A | 3 A | 5 s | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.063 W (3.25mm x 1.60mm) | - | 0.028 (0.70mm) |
|
|
MF-USHT110KX-2PTC RESET FUSE 16V 1.1A 1210 |
1,389 | 0.94 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-USHT | Active | Polymeric | 16V | 20 A | 1.1 A | 5.5 A | 5 s | 60 mOhms | 500 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.063 (1.60mm) |
|
|
MF-USHT150KX-2PTC RESET FUSE 12V 1.5A 1210 |
1,039 | 0.94 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-USHT | Active | Polymeric | 12V | 40 A | 1.5 A | 4.5 A | 5 s | 25 mOhms | 250 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.063 (1.60mm) |
|
MF-LSMF300X-2PTC RESET FUSE 6V 3A 2920 |
1,550 | 0.97 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-LSMF | Active | Polymeric | 6V | 40 A | 3 A | 5 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.033 (0.85mm) |
|
MF-NSHT010KX-2PTC RESET FUSE 30V 100MA 1206 |
2,683 | 1.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSHT | Active | Polymeric | 30V | 20 A | 100 mA | 500 mA | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) |
|
|
MF-NSHT016KX-2PTC RESET FUSE 30V 160MA 1206 |
2,191 | 1.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSHT | Active | Polymeric | 30V | 20 A | 160 mA | 800 mA | 100 ms | 700 mOhms | 6 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) |
|
MF-RHT700-2PTC RESET FUSE 16V 7A RADIAL |
1,366 | 1.03 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-RHT | Active | Polymeric | 16V | 100 A | 7 A | 13 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.862 (21.90mm) | - |
|
|
MF-R900-2PTC RESET FUSE 30V 9A RADIAL |
2,754 | 1.07 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-R | Active | Polymeric | 30V | 40 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.953 L x 0.118 W (24.20mm x 3.00mm) | 1.295 (32.90mm) | - |
|
MF-PSHT010KX-2PTC RESET FUSE 16V 100MA 0805 |
1,575 | 1.07 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-PSHT | Active | Polymeric | 16V | 40 A | 100 mA | 500 mA | 1.5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.031 (0.80mm) |
|

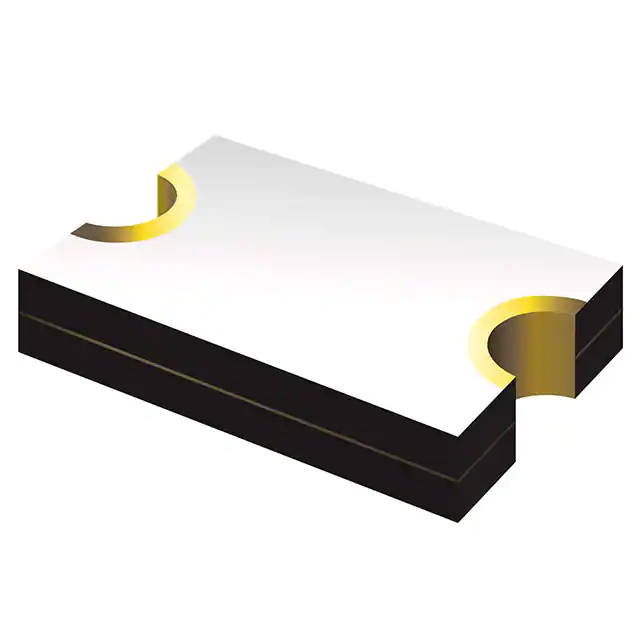

MF-FSHT010KX-20603 HIGH TEMP SMD POLYMER PTC 0 |
4,692 | 1.13 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-FSHT | Active | Polymeric | 12V | 40 A | 100 mA | 500 mA | 1.5 s | 900 mOhms | 8.5 Ohms | - | -40°C ~ 125°C | - | Surface Mount | 0.065 L x 0.033 W (1.65mm x 0.85mm) | - | 0.026 (0.65mm) |
|
|
MF-FSHT005KX-20603 HIGH TEMP SMD POLYMER PTC 0 |
4,177 | 1.13 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-FSHT | Active | Polymeric | 12V | 40 A | 50 mA | 250 mA | 1.5 s | 1.5 Ohms | 30 Ohms | - | -40°C ~ 125°C | - | Surface Mount | 0.065 L x 0.033 W (1.65mm x 0.85mm) | - | 0.026 (0.65mm) |
|
|
MF-FSHT016KX-20603 HIGH TEMP SMD POLYMER PTC 0 |
4,082 | 1.13 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-FSHT | Active | Polymeric | 12V | 40 A | 160 mA | 800 mA | 100 ms | 600 mOhms | 6 Ohms | - | -40°C ~ 125°C | - | Surface Mount | 0.065 L x 0.033 W (1.65mm x 0.85mm) | - | 0.026 (0.65mm) |
|
MF-LSMF330/16X-22920 RESETTABLE SMD PPTC 3.3A/16 |
2,990 | 1.13 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-LSMF | Active | Polymeric | 16V | - | 3.3 A | - | - | - | - | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | - |
|
|
MF-LSMF600/12X-22920 RESETTABLE SMD PPTC 6.0A/12 |
2,942 | 1.13 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-LSMF | Active | Polymeric | 12V | - | 6 A | - | - | - | - | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | - |
|
MF-MSHT150KX-21812 HIGH TEMP SMD POLYMER PTC 1 |
1,400 | 1.13 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse® MF-MSHT | Active | Polymeric | 9V | 40 A | 1.5 A | 6 A | 5 s | 22 mOhms | 200 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.063 (1.60mm) |
