| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD2920P300TSA/15PTC RESET FUSE 15V 3A 2920 |
2,667 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, SMD2920 | Obsolete | Polymeric | 15V | 40 A | 3 A | 6 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.039 (1.00mm) |
|
1206L160PRPTC RESET FUSE 6V 1.6A 1206 |
3,879 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1206L | Obsolete | Polymeric | 6V | 100 A | 1.6 A | 3.2 A | 400 ms | 25 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.063 (1.60mm) |
|
1812L125ZRPTC RESET FUSE 1.25A 1812 |
2,931 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | - | 100 A | 1.25 A | 2.5 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
1812L150ZRTPTC RESET FUSE 8V 1.25A 1812 |
3,020 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | 8V | 100 A | 1.25 A | 3 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
1812L160ZRTPTC RESET FUSE 8V 1.6A 1812 |
2,306 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, 1812L | Obsolete | Polymeric | 8V | 100 A | 1.6 A | 2.8 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.030 (0.75mm) |
|
|
LTP070FPTC RESET FUSE 15V 700MA STRAP |
2,469 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LTP | Obsolete | Polymeric | 15V | 100 A | 700 mA | 1.45 A | 5 s | 100 mOhms | 340 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.417 L x 0.199 W (36.00mm x 5.05mm) | - | 0.047 (1.20mm) |
|
|
LTP190FPTC RESET FUSE 24V 1.9A STRAP |
3,427 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch® | Obsolete | Polymeric | 24V | 100 A | 1.9 A | 4.2 A | 3 s | 30 mOhms | 100 mOhms | - | - | - | User Defined | 0.880 L x 0.417 W (22.35mm x 10.60mm) | - | 0.043 (1.10mm) |
|
|
LTP260FPTC RESET FUSE 24V 2.6A STRAP |
3,727 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LTP | Obsolete | Polymeric | 24V | 100 A | 2.6 A | 5.2 A | 5 s | 25 mOhms | 76 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.447 W (25.00mm x 11.35mm) | - | 0.039 (1.00mm) |
|
|
LTP340FPTC RESET FUSE 24V 3.4A STRAP |
2,357 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LTP | Obsolete | Polymeric | 24V | 100 A | 3.4 A | 6.8 A | 5 s | 16 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.604 W (25.00mm x 15.35mm) | - | 0.039 (1.00mm) |
|
|
LTP300FPTC RESET FUSE 24V 3A STRAP |
2,601 | 0.00 |
RFQ |
Strap | Bulk | PolySwitch®, LTP | Obsolete | Polymeric | 24V | 100 A | 3 A | 6.3 A | 4 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.185 L x 0.522 W (30.10mm x 13.25mm) | - | 0.043 (1.10mm) | |
|
|
LTP310FPTC RESET FUSE 24V 3.1A STRAP |
3,936 | 0.00 |
RFQ |
Strap | Bulk | PolySwitch®, LTP | Discontinued at Mosen | Polymeric | 24V | 100 A | 3.1 A | 6 A | 5 s | - | - | - | - | - | User Defined | - | - | - | |
|

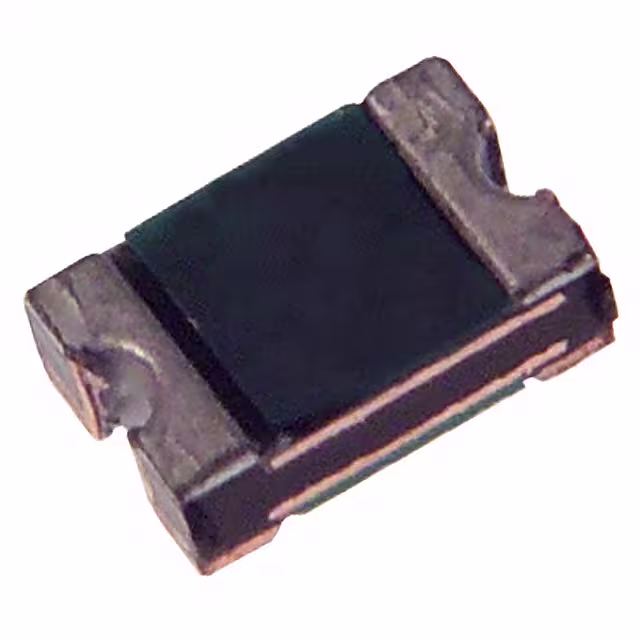

SMD0805P010TFAPTC RESET FUSE 15V 100MA 0805 |
3,240 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 15V | 40 A | 100 mA | 300 mA | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
SMD0805P020TFAPTC RESET FUSE 9V 200MA 0805 |
3,068 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 9V | 40 A | 200 mA | 500 mA | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
SMD0805P035TFAPTC RESET FUSE 6V 350MA 0805 |
3,617 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 6V | 40 A | 350 mA | 750 mA | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.024 (0.60mm) |
|
|
SMD0805P050TFAPTC RESET FUSE 6V 500MA 0805 |
2,884 | 0.00 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, SMD0805 | Obsolete | Polymeric | 6V | 40 A | 500 mA | 1 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.039 (1.00mm) |
|
|
RLD30P090UFFPTC RESET FUSE 30V 900MA RADIAL |
3,568 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
|
RLD30P110UFFPTC RESET FUSE 30V 1.1A RADIAL |
3,187 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.1 A | 2.2 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
|
RLD30P135UFFPTC RESET FUSE 30V 1.35A RADIAL |
3,230 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
|
RLD30P160UFFPTC RESET FUSE 30V 1.6A RADIAL |
2,590 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.6 A | 3.2 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
|
RLD30P185UFFPTC RESET FUSE 30V 1.85A RADIAL |
3,259 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, RLD30 | Obsolete | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
