| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1812L200THPRPTC RESET FUSE 8V 2A 1812 |
12,250 | 0.56 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 8V | 100 A | 2 A | 3.5 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.60mm) |
|
1206L010/30WRPTC RESET FUSE 30V 100MA 1206 |
81,071 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 30V | 10 A | 100 mA | 250 mA | 1.5 s | 1.5 Ohms | 10 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | - |
|
MICROASMD005F-2PTC RESET FUSE 30V 50MA 1210 |
18,900 | 0.57 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 30V | 10 A | 50 mA | 150 mA | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.026 (0.67mm) |
|
|
MICROASMD010F-2PTC RESET FUSE 30V 100MA 1210 |
15,282 | 0.57 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 30V | 10 A | 100 mA | 250 mA | 1 s | 2.1 Ohms | 15 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.026 (0.67mm) |
|
RXEF110K-2PTC RESET FUSE 72V 1.1A RADIAL |
10,695 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
RXEF110-2PTC RESET FUSE 72V 1.1A RADIAL |
7,500 | 0.24 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
|
1812L260THDRPTC RESET FUSE 8V 2.6A 1812 |
16,230 | 0.56 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 8V | 100 A | 2.6 A | 5.2 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.039 (1.00mm) |
|

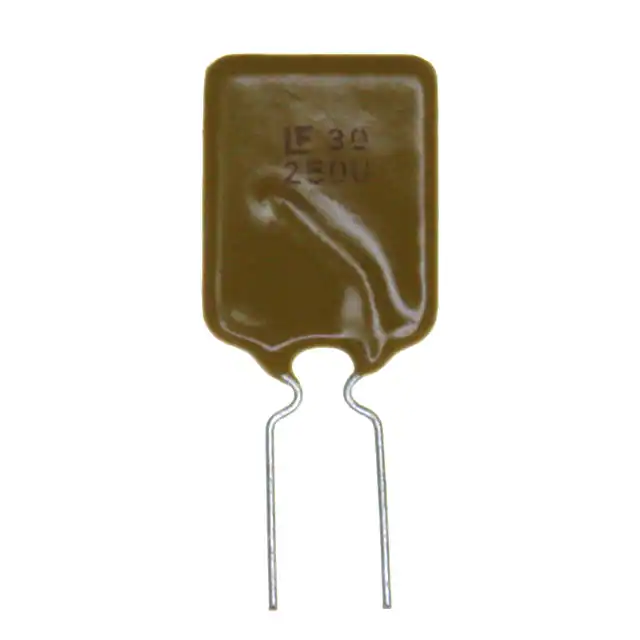

30R250UPRPTC RESET FUSE 30V 2.5A RADIAL |
3,404 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
RUSBF090-2PTC RESET FUSE 16V 900MA RADIAL |
5,673 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 900 mA | 1.8 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.122 W (7.40mm x 3.10mm) | 0.480 (12.20mm) | - |
|
60R110XMRPTC RESET FUSE 60V 1.1A RADIAL |
24,297 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.512 Dia x 0.122 T (13.00mm x 3.10mm) | 0.717 (18.20mm) | - |
|
1812L160/12DRPTC RESET FUSE 12V 1.6A 1812 |
14,057 | 0.58 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 12V | 100 A | 1.6 A | 2.8 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
1812L150/12DRPTC RESET FUSE 12V 1.5A 1812 |
4,930 | 0.58 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 12V | 100 A | 1.5 A | 3 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
1812L150/16DRPTC RESET FUSE 16V 1.5A 1812 |
4,600 | 0.58 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 16V | 100 A | 1.5 A | 3 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
RXEF110K-APPTC RESET FUSE 72V 1.1A RADIAL |
29,015 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
RXEF135-2PTC RESET FUSE 72V 1.35A RADIAL |
4,289 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia x 0.118 T (14.50mm x 3.00mm) | 0.752 (19.10mm) | - |
|
RUEF300-2PTC RESET FUSE 30V 3A RADIAL |
10,431 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - |
|
|
1206L200PRPTC RESET FUSE 6V 2A 1206 |
10,602 | 0.61 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 6V | 100 A | 2 A | 3.5 A | 1.5 s | 18 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.063 (1.60mm) |
|
SMD150F/33-2920-2PTC RESET FUSE 33V 1.5A 2SMD |
13,721 | 0.63 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 33V | 40 A | 1.5 A | 3 A | 5 s | 80 mOhms | - | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.118 (3.00mm) |
|
|
SMD100F-2018-2PTC RESET FUSE 15V 1.1A 2SMD |
12,338 | 0.65 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 15V | 40 A | 1.1 A | 2.2 A | 500 ms | 100 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.180 W (5.08mm x 4.58mm) | - | 0.060 (1.52mm) |
|
RGEF300-2PTC RESET FUSE 16V 3A RADIAL |
15,581 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.433 (11.00mm) | - |
