| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTCCL07H171FBEPTC RESET FUSE 145V 170MA RADIAL |
2,336 | 0.67 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 1 A | 170 mA | 255 mA | - | - | - | 19 Ohms | 0°C ~ 70°C | - | Through Hole | 0.276 Dia x 0.197 T (7.00mm x 5.00mm) | 0.472 (12.00mm) | - |
|
|
PTCCL07H211FBEPTC RESET FUSE 145V 210MA RADIAL |
3,270 | 0.67 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 1.4 A | 210 mA | 315 mA | - | - | - | 12 Ohms | 0°C ~ 70°C | - | Through Hole | 0.276 Dia x 0.197 T (7.00mm x 5.00mm) | 0.472 (12.00mm) | - |
|
|
PTCCL09H271FBEPTC RESET FUSE 145V 270MA RADIAL |
3,342 | 0.67 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 2.2 A | 270 mA | 405 mA | - | - | - | 8 Ohms | 0°C ~ 70°C | - | Through Hole | 0.335 Dia x 0.197 T (8.50mm x 5.00mm) | 0.532 (13.50mm) | - |
|
PTCTL4MR350STEPTC RESET FUSE 600V 70MA RADIAL |
2,289 | 0.70 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | - | Active | Ceramic | 600V | 1 A | 70 mA | 600 mA | 3 s | - | - | 35 Ohms | 0°C ~ 70°C | - | Through Hole | 0.315 Dia x 0.197 T (8.00mm x 5.00mm) | 0.433 (11.00mm) | - |
|
|
PTCTL6MR250STEPTC RESET FUSE 600V 70MA RADIAL |
3,706 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | - | Active | Ceramic | 600V | 2 A | 70 mA | 170 mA | 5 s | - | - | 25 Ohms | 0°C ~ 70°C | - | Through Hole | 0.413 Dia x 0.197 T (10.50mm x 5.00mm) | 0.496 (12.60mm) | - |
|
|
PTCCL11H701DTEPTC RESET FUSE 30V 700MA RADIAL |
2,341 | 2.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PTCCL - 30V | Active | Ceramic | 30V | 8 A | 700 mA | 1.05 A | - | - | - | 1.3 Ohms | -40°C ~ 85°C | - | Through Hole | 0.413 Dia x 0.157 T (10.50mm x 4.00mm) | 0.610 (15.50mm) | - |
|
|
PTCCL11H611DBEPTC RESET FUSE 30V 610MA RADIAL |
2,000 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 30V | Active | Ceramic | 30V | 7 A | 610 mA | 915 mA | - | - | - | 1.7 Ohms | -40°C ~ 85°C | - | Through Hole | 0.413 Dia x 0.157 T (10.50mm x 4.00mm) | 0.610 (15.50mm) | - |
|
|
PTCCL11H211HBEPTC RESET FUSE 265V 210MA RADIAL |
3,995 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 265V | Active | Ceramic | 265V | 1.3 A | 210 mA | 315 mA | - | - | - | 17 Ohms | 0°C ~ 70°C | - | Through Hole | 0.413 Dia x 0.217 T (10.50mm x 5.50mm) | 0.610 (15.50mm) | - |
|
|
PTCCL05H131EBEPTC RESET FUSE 60V 130MA RADIAL |
2,318 | 1.37 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 60V | Active | Ceramic | 60V | 1.2 A | 130 mA | 195 mA | - | - | - | 25 Ohms | -40°C ~ 85°C | - | Through Hole | 0.197 Dia x 0.157 T (5.00mm x 4.00mm) | 0.394 (10.00mm) | - |
|
|
PTCTL8NR100HBEPTC RESET FUSE 250V 100MA RADIAL |
3,486 | 1.39 |
RFQ |
Datasheet |
Radial, Disc | Bulk | - | Active | Ceramic | 250V | 10 A | 100 mA | 450 mA | 40 s | - | - | 10 Ohms | 0°C ~ 70°C | - | Through Hole | 0.535 Dia x 0.236 T (13.60mm x 6.00mm) | 0.732 (18.60mm) | - |
|
|
PTCCL13H831DBEPTC RESET FUSE 30V 830MA RADIAL |
3,626 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 30V | Active | Ceramic | 30V | 10 A | 830 mA | 1.245 A | - | - | - | 1.1 Ohms | -40°C ~ 85°C | - | Through Hole | 0.492 Dia x 0.157 T (12.50mm x 4.00mm) | 0.689 (17.50mm) | - |
|
|
PTCCL13H411FBEPTC RESET FUSE 145V 410MA RADIAL |
3,524 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 4.5 A | 410 mA | 615 mA | - | - | - | 4.6 Ohms | 0°C ~ 70°C | - | Through Hole | 0.492 Dia x 0.197 T (12.50mm x 5.00mm) | 0.689 (17.50mm) | - |
|
|
PTCCL05H181DBEPTC RESET FUSE 30V 180MA RADIAL |
3,954 | 1.37 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 30V | Active | Ceramic | 30V | 1.7 A | 180 mA | 270 mA | - | - | - | 13 Ohms | -40°C ~ 85°C | - | Through Hole | 0.197 Dia x 0.157 T (5.00mm x 4.00mm) | 0.394 (10.00mm) | - |
|
|
PTCCL09H191HBEPTC RESET FUSE 265V 190MA RADIAL |
3,471 | 1.68 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 265V | Active | Ceramic | 265V | 1 A | 190 mA | 285 mA | - | - | - | 18 Ohms | 0°C ~ 70°C | - | Through Hole | 0.335 Dia x 0.217 T (8.50mm x 5.50mm) | 0.532 (13.50mm) | - |
|
|
PTCCL17H601FBEPTC RESET FUSE 145V 600MA RADIAL |
3,674 | 1.94 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 7.2 A | 600 mA | 900 mA | - | - | - | 2.9 Ohms | 0°C ~ 70°C | - | Through Hole | 0.650 Dia x 0.197 T (16.50mm x 5.00mm) | 0.846 (21.50mm) | - |
|
|
PTCCL17H711FBEPTC RESET FUSE 145V 710MA RADIAL |
3,166 | 1.94 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 8.5 A | 710 mA | 1.065 A | - | - | - | 2.1 Ohms | 0°C ~ 70°C | - | Through Hole | 0.650 Dia x 0.197 T (16.50mm x 5.00mm) | 0.846 (21.50mm) | - |
|
PTCTT95R500GTEPTC RESET FUSE 240V 90MA 4SMD |
2,534 | 2.20 |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR) | - | Active | Ceramic | 240V | 2.5 A | 90 mA | 190 mA | 1.2 s | - | - | 50 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.354 L x 0.283 W (9.00mm x 7.20mm) | - | 0.272 (6.90mm) |
|
PTCCL21H881FBEPTC RESET FUSE 145V 880MA RADIAL |
2,667 | 2.95 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 145V | Active | Ceramic | 145V | 11 A | 880 mA | 1.32 A | - | - | - | 1.7 Ohms | 0°C ~ 70°C | - | Through Hole | 0.807 Dia x 0.197 T (20.50mm x 5.00mm) | 1.004 (25.50mm) | - |
|

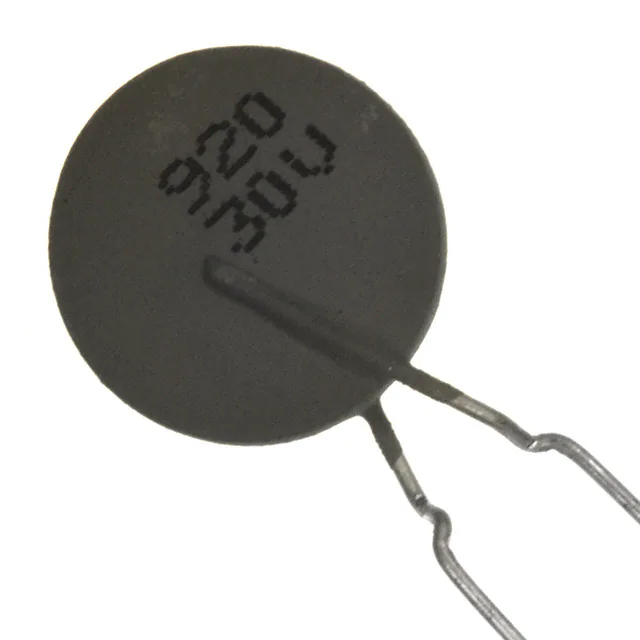

PTCCL13H921DBEPTC RESET FUSE 30V 920MA RADIAL |
3,995 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PTCCL - 30V | Active | Ceramic | 30V | 11 A | 920 mA | 1.38 A | - | - | - | 900 mOhms | -40°C ~ 85°C | - | Through Hole | 0.492 Dia x 0.157 T (12.50mm x 4.00mm) | 0.689 (17.50mm) | - |
|
2322 661 97203PTC RESET FUSE 300V 150MA 2SMD |
3,486 | 0.00 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | Ceramic | 300V | - | 150 mA | 250 mA | 3 s | - | - | 10 Ohms | - | - | Surface Mount | 0.283 L x 0.394 W (7.20mm x 10.00mm) | - | 0.142 (3.60mm) |
