| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSMD110-24RRESETTABLE FUSE - SMD, 1812 SIZE |
1,500 | 0.25 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 24V | 100 A | 1.1 A | 2.2 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.051 (1.30mm) |
|
|
FSMD160-12RRESETTABLE FUSE - SMD, 1812 SIZE |
2,000 | 0.25 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 12V | 100 A | 1.6 A | 3.2 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.053 (1.35mm) |
|
|
FSMD150-12RRESETTABLE FUSE - SMD, 1812 SIZE |
2,000 | 0.25 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 12V | 100 A | 1.5 A | 3 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.043 (1.10mm) |
|
|
FSMD160-16RRESETTABLE FUSE - SMD, 1812 SIZE |
2,000 | 0.25 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 16V | 100 A | 1.6 A | 3.2 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.053 (1.35mm) |
|
|
FSMD075-24RRESETTABLE FUSE - SMD, 1812 SIZE |
1,500 | 0.25 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 24V | 100 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.061 (1.55mm) |
|
FRX075-90FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.25 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRX90 | Active | - | 72V (90V Int) | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.409 Dia (10.40mm) | 0.598 (15.20mm) | - |
|
|
FRX090-90FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.25 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRX90 | Active | - | 72V (90V Int) | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.461 Dia (11.70mm) | 0.622 (15.80mm) | - |
|

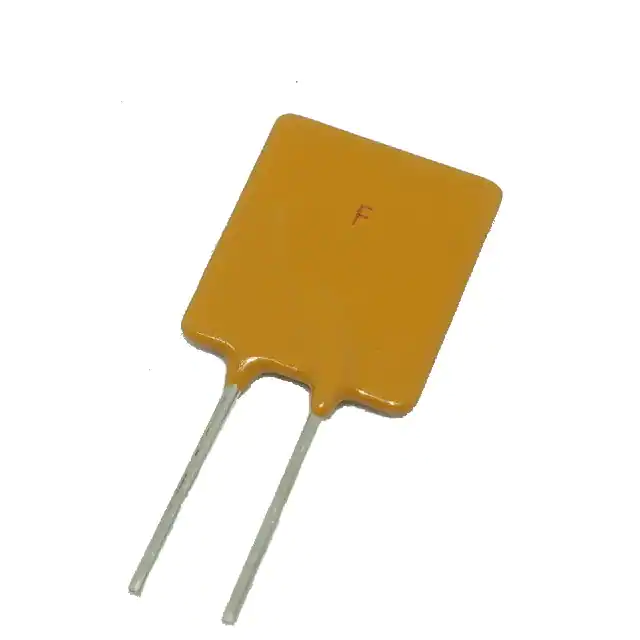

FRU160-30FRESETTABLE FUSE - PPTC RADIAL LE |
590 | 0.26 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRU | Active | - | 30V | 100 A | 1.6 A | 3.2 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
FSMD010-1206-RRESETTABLE FUSE - SMD, 1206 SIZE |
12,000 | 0.26 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR) | FSMD1206 | Active | - | 60V | 100 A | 100 mA | 250 mA | 1 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.033 (0.85mm) |
|
|
FRU185-30FRESETTABLE FUSE - PPTC RADIAL LE |
600 | 0.27 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRU | Active | - | 30V | 100 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
FSMD110-0805RRESETTABLE FUSE - SMD, 0805 SIZE |
3,000 | 0.27 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | FSMD0805 | Active | - | 6V | 100 A | 1.1 A | 2.2 A | 200 ms | 50 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.071 (1.80mm) |
|
|
FSMD100-0805RRESETTABLE FUSE - SMD, 0805 SIZE |
3,000 | 0.27 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR) | FSMD0805 | Active | - | 6V | 100 A | 1 A | 1.95 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.085 L x 0.053 W (2.15mm x 1.35mm) | - | 0.071 (1.80mm) |
|
FSMD200-24-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
2,000 | 0.28 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR) | FSMD2920 | Active | - | 24V | 100 A | 2 A | 4 A | 5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.031 (0.80mm) |
|
|
FSMD075-60-2920-RRESETTABLE FUSE - SMD, 2920 SIZE |
1,800 | 0.28 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR) | FSMD2920 | Active | - | 60V | 100 A | 750 mA | 1.5 A | 300 ms | 180 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.045 (1.15mm) |
|
|
FRX135-90FRESETTABLE FUSE - PPTC RADIAL LE |
400 | 0.29 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRX90 | Active | - | 72V (90V Int) | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia (14.50mm) | 0.772 (19.60mm) | - |
|
|
FSMD300RRESETTABLE FUSE - SMD, 1812 SIZE |
1,500 | 0.29 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 6V | 100 A | 3 A | 5 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.061 (1.55mm) |
|
|
FSMD260-13RRESETTABLE FUSE - SMD, 1812 SIZE |
1,500 | 0.29 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | FSMD1812 | Active | - | 13.2V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.061 (1.55mm) |
|
|
FSMD200-1206RRESETTABLE FUSE - SMD, 1206 SIZE |
2,000 | 0.29 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR) | FSMD1206 | Active | - | 6V | 100 A | 2 A | 3.5 A | 1.5 s | 18 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.063 (1.60mm) |
|
|
FRX017-60FRESETTABLE FUSE - PPTC RADIAL LE |
990 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRX60 | Active | - | 60V | 40 A | 170 mA | 340 mA | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia (7.40mm) | 0.500 (12.70mm) | - |
|
|
FRX010-60FRESETTABLE FUSE - PPTC RADIAL LE |
990 | 0.30 |
RFQ |
Datasheet |
Radial, Disc | Bulk | FRX60 | Active | - | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia (7.40mm) | 0.500 (12.70mm) | - |
