| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPX2050DPIC PRESSURE SENSOR 4-PIN |
3,963 | 23.17 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2050 | Active | Board Mount | Differential | 7.25PSI (50kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.93mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 125°C |
|
MPXV7002GC6USENSOR PRESSURE 8SOP AXIAL PORT |
2,128 | 25.60 |
RFQ |
Datasheet |
8-SMD, Gull Wing, Top Port | Tube | MPXV7002 | Active | Board Mount | Compound | ±0.29PSI (±2kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | ±10.88PSI (±75kPa) | 10°C ~ 60°C |
|
MPX2100APSENSOR ABS PRESS 14.5PSI MAX |
3,171 | 23.17 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2100 | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX2200ASENSOR ABS PRESS 29PSI MAX |
3,037 | 22.44 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2200 | Active | Board Mount | Absolute | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | - | No Port | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C |
|
MPX2010GSXPRESSURE SENSOR GAUGE AXL 4SIP |
3,672 | 22.44 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19 (4.92mm) Tube | Barbed | Temperature Compensated | PC Pin | 10.88PSI (75kPa) | -40°C ~ 125°C |
|
MPXA6115A6UPRESSURE SENS 16.7PSI MAX 8-SOP |
3,247 | 24.35 |
RFQ |
Datasheet |
8-SMD Module | Tube | MPXA6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPX2200GPSENSOR GAUGE PRESS 29 PSI MAX |
3,220 | 25.42 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2200 | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 116.03PSI (800kPa) | -40°C ~ 125°C |
|
MPX5100GPSENSOR GAUGE PRESS 14.5 PSI MAX |
2,357 | 30.55 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX5100 | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPX4250DSENSOR DIFF PRESS 36.3PSI MAX |
3,565 | 34.97 |
RFQ |
Datasheet |
6-SIP Module | Tray | MPX4250 | Active | Board Mount | Differential | 36.26PSI (250kPa) | Analog Voltage | 0.2 V ~ 4.9 V | ±1.4% | 4.85V ~ 5.35V | - | No Port | Temperature Compensated | PC Pin | 145.04PSI (1000kPa) | -40°C ~ 125°C |
|
MPXV5100GPIC PRESSURE SENSOR 8-SOP |
2,519 | 23.29 |
RFQ |
Datasheet |
8-SMD, Gull Wing, Side Port | Tray | MPXV5100 | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±2.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXM2102ASENS PRESSURE 14.5 PSI MAX MPAK |
600 | 15.15 |
RFQ |
Datasheet |
5-SMD Module | Tube | MPXM2102 | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | - | No Port | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXM2010GSSENS PRESSURE 1.45 PSI MAX MPAK |
2,099 | 15.90 |
RFQ |
Datasheet |
5-SMD Module, Top Port | Tube | MPX2010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (10V) | ±1% | 10V ~ 16V | Male - 0.12 (2.97mm) Tube | Barbless | Temperature Compensated | Gull Wing | 10.88PSI (75kPa) | -40°C ~ 125°C |
|

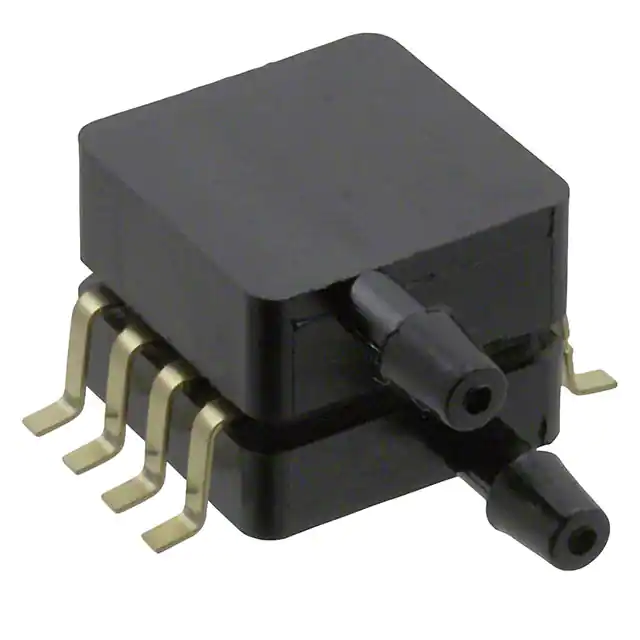

MPXV2202DPT1SENSOR PRESSURE DIFF DUAL 8SOP |
3,996 | 20.94 |
RFQ |
Datasheet |
8-BSOP (0.475, 12.06mm Width) Dual Ports, Same Side | Tape & Reel (TR),Cut Tape (CT) | MPX2202 | Active | Board Mount | Differential | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.13 (3.3mm) Tube, Dual | Barbed | Temperature Compensated | SMD (SMT) Tab | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPVZ5004GW7UPRESSURE SENSOR VERT 8-DIP |
3,680 | 20.34 |
RFQ |
Datasheet |
8-DIP Module | Tube | MPVZ5004G | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | ±6.25% | 4.75V ~ 5.25V | Male - 0.22 (5.59mm) Tube | Barbless | Temperature Compensated | PC Pin | 2.32PSI (16kPa) | 0°C ~ 85°C |
|
|
MPX2202GPSENSOR GAUGE PRESS 29PSI MAX |
2,414 | 20.85 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2202 | Active | Board Mount | Vented Gauge | 29.01PSI (200kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | - | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXV5010GC7USENSOR INTEG SILICON PRESSURE |
3,011 | 23.32 |
RFQ |
Datasheet |
8-DIP (0.550, 13.97mm), Top Port | Tube | MPXV5010 | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 5.8PSI (40kPa) | -40°C ~ 125°C |
|
|
MPXV5004GC6USENSOR GAUGE PRESS 0.57 PSI MAX |
2,255 | 23.78 |
RFQ |
Datasheet |
8-SMD, Gull Wing, Top Port | Tube | MPXV5004 | Active | Board Mount | Vented Gauge | 0.57PSI (3.92kPa) | Analog Voltage | 1 V ~ 4.9 V | - | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 2.32PSI (16kPa) | 0°C ~ 85°C |
|
|
MPX2102APSENSOR ABS PRESS 14.5PSI MAX |
2,242 | 22.44 |
RFQ |
Datasheet |
4-SIP Module | Tray | MPX2102 | Active | Board Mount | Absolute | 14.5PSI (100kPa) | Wheatstone Bridge | 0 mV ~ 40 mV (10V) | ±1% | 10V ~ 16V | Male - 0.19 (4.93mm) Tube | Barbed | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
|
MPXAZ6115AC6T1SENSOR PRESSURE ABS AXIAL 8-SOP |
2,446 | 27.77 |
RFQ |
Datasheet |
8-SMD, Gull Wing, Top Port | Tape & Reel (TR),Cut Tape (CT) | MPXAZ6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | Gull Wing | 58.02PSI (400kPa) | -40°C ~ 125°C |
|
MPXA6115AC7UPRESSURE SENSOR ABS AXIAL 8-DIP |
3,505 | 24.57 |
RFQ |
Datasheet |
8-DIP (0.550, 13.97mm), Top Port | Tube | MPXA6115A | Active | Board Mount | Absolute | 2.18PSI ~ 16.68PSI (15kPa ~ 115kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±1.5% | 4.75V ~ 5.25V | Male - 0.13 (3.17mm) Tube | Barbless | Temperature Compensated | PC Pin | 58.02PSI (400kPa) | -40°C ~ 125°C |
