| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
86-500A-RSENSOR 500PSIA RIBBON W/CONN |
2,235 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Absolute | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
|
86-100A-RSENSOR 100PSIA RIBBON W/CONN |
3,435 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|
M325M-000005-250PGPRESS XDCR M325M-000005-250PG |
3,126 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 250PSI (1723.69kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 500PSI (3447.38kPa) | -40°C ~ 125°C |
|
M3431-000006-01KPGSENSOR 1KPSIG 1/8NPT .5-4.5V |
289 | 139.02 |
RFQ |
Datasheet |
Cylinder | Bulk | MSP340 | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | Male - 1/8 (3.18mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable 2' | 2000PSI (13789.51kPa) | -20°C ~ 85°C |
|
SM9333-BBE-S-125-000125PA DIFF. DIGITAL PRESSURE SEN |
3,924 | 49.00 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Box | SM9333 | Active | - | Differential | -0.02 ~ 0.02PSI (-0.12 ~ 0.13kPa) | I²C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 1.02PSI (7kPa) | -20°C ~ 85°C |
|
4515-DS5B002DPSENSOR PRESS DIFF |
3,287 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C |
|
4515DO-DS3BK005DPSENSOR PRESS GAUGE |
2,122 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | Board Mount | Differential | 0.18PSI (1.25kPa) | I²C | 14 b | ±0.25% | 3.3V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C |
|
|
4515DO-DS3BK030DPLSENSOR PRESS DIFF 1.08PSI 8DIP |
3,507 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | Board Mount | Differential | 1.08PSI (7.48kPa) | I²C | 14 b | ±0.25% | 3.3V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -10°C ~ 85°C |
|
86-300G-RSENSOR PRESSURE 300PSIG STEEL |
3,806 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|
|
86-500G-RSENSOR PRESSURE 500PSIG STEEL |
2,268 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
M323M-000004-070BGPRESS XDCR M323M-000004-070BG |
3,321 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 1015.26PSI (7000kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 7/16 (0.44mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2031PSI (14000kPa) | -40°C ~ 125°C |
|
85-015A-8RSENSOR 15PSIA 1/4NPT RIBN W/CONN |
2,783 | 112.68 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
154N-050A-RSENSOR PRESSURE |
3,430 | 178.07 |
RFQ |
Datasheet |
Module | Tube | - | Active | Board Mount | Absolute | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 150PSI (1034.21kPa) | -40°C ~ 125°C |
|
86-100A-CSENSOR 100PSIA RIBBON W/CONN |
2,397 | 49.50 |
RFQ |
Datasheet |
Cylinder | Bulk,Box | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|
86-005G-CSENSOR PRESSURE 5PSIG STEEL |
2,606 | 66.80 |
RFQ |
Datasheet |
Cylinder | Bulk,Box | - | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | - | No Port | Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 70°C |
|
4425-015ASENSOR ABS PRESS 15PSI 6-DIP PCB |
3,350 | 42.62 |
RFQ |
Datasheet |
6-DIP Module | Tray | 4425 | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 90 mV (12V) | ±0.15% | 12V ~ 20V | Male - 0.13 (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 85°C |
|
M3239-000005-150PGPRESSURE TRANSDUCER |
3,437 | 44.28 |
RFQ |
- | Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

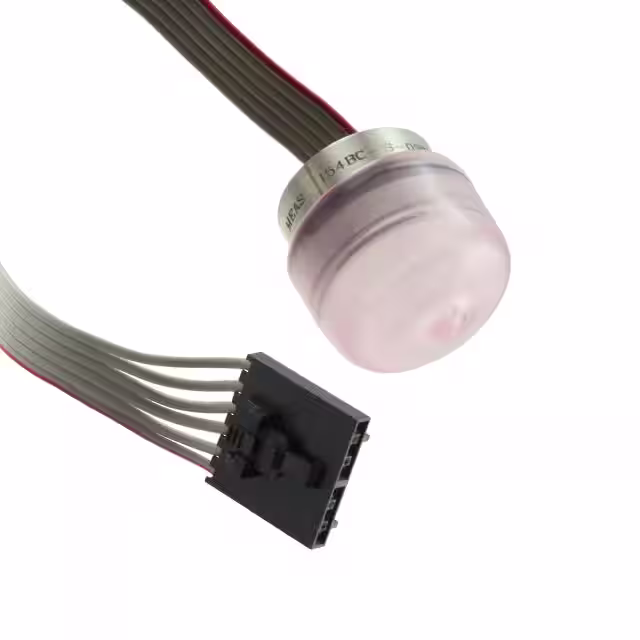

154BC-S-028BA-CSENSOR PRESSURE |
2,801 | 74.28 |
RFQ |
Datasheet |
Module | Tube | - | Active | Board Mount | Absolute | 406.11PSI (2800kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.3% | - | - | No Port | Temperature Compensated | Connector | 812.21PSI (5600kPa) | -40°C ~ 125°C |
|
4515DO-DS5BS002DSSENSOR PRESS GAUGE |
3,257 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | SPI | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C |
|
|
86-300G-RTSENSOR PRESSURE 300PSIG STEEL |
3,557 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
