| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4525-SS5A005GPSENSOR GAUGE PRESS 5PSI PCB 8DIP |
2,618 | 56.98 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525 | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C |
|
4525-SS5B050ASPRESS XDUCER ANLG 50PSI ABS J LD |
2,396 | 56.98 |
RFQ |
Datasheet |
8-DIP (0.500, 12.70mm), Side Port | Tray | MS4525 | Active | - | Absolute | 50PSI (344.74kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 105°C |
|
|
4525-DS3A005DPPRESS XDUCER ANLG 5PSI DIFF TH |
2,127 | 56.98 |
RFQ |
Datasheet |
8-DIP (0.500, 12.70mm), Dual Ports, Same Side | Tray | MS4525 | Active | - | Differential | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 3.3V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 105°C |
|
|
4525-DS5B100DPPRESS XDUCER ANLG 100PSI DIFF TH |
3,444 | 56.98 |
RFQ |
Datasheet |
8-DIP (0.500, 12.70mm), Dual Ports, Same Side | Tray | MS4525 | Active | - | Differential | 100PSI (689.48kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 105°C |
|
|
4525-SS5B015APPRESS XDUCER ANLG 15PSI ABS TH |
2,842 | 56.98 |
RFQ |
Datasheet |
8-DIP (0.500, 12.70mm), Side Port | Tray | MS4525 | Active | - | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.25 V ~ 4.75 V | ±1% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -25°C ~ 105°C |
|

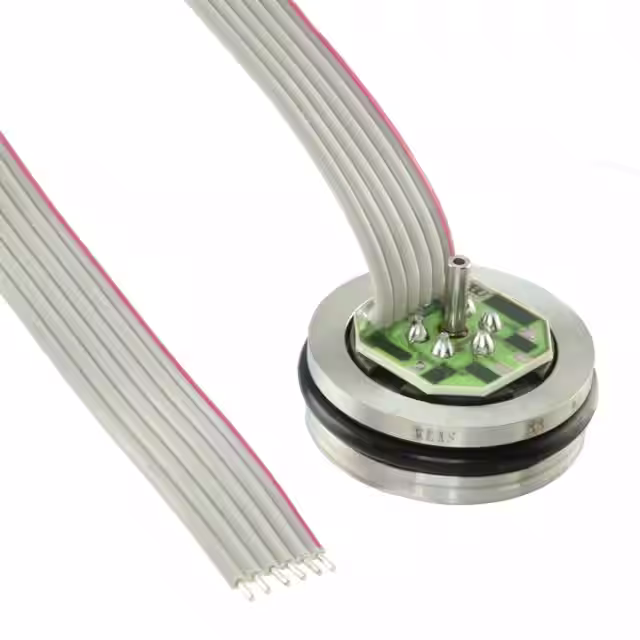

82-050G-RTSENSOR 50PSIG RIBBON W/CONN |
3,464 | 410.60 |
RFQ |
Datasheet |
- | Tube,Box | - | Active | Board Mount | Vented Gauge | 50PSI (344.74kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Flex Cable | 150PSI (1034.21kPa) | -40°C ~ 125°C |
|

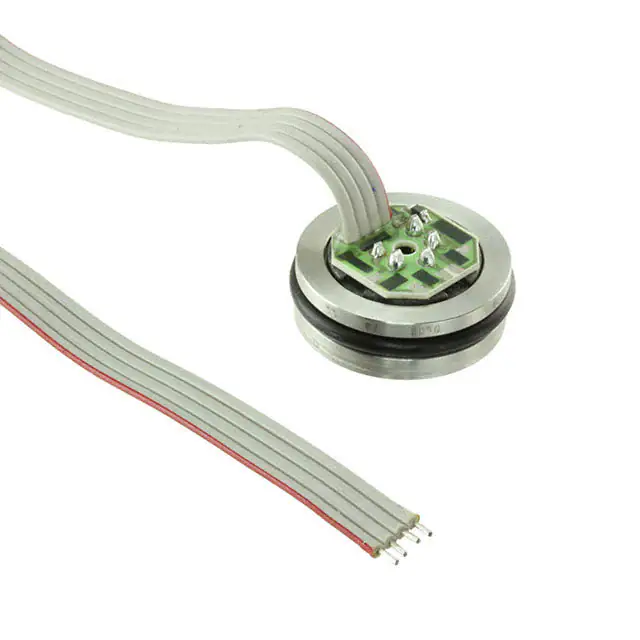

82CV-015G-RSNSR PRES |
2,543 | 61.22 |
RFQ |
Datasheet |
Cylinder | Tube,Box | - | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.1% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
82CV-300G-RSNSR PRES |
3,361 | 65.66 |
RFQ |
Datasheet |
Cylinder | Tube,Box | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV (10V) | ±0.1% | 10V ~ 14V | - | No Port | Temperature Compensated | Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|

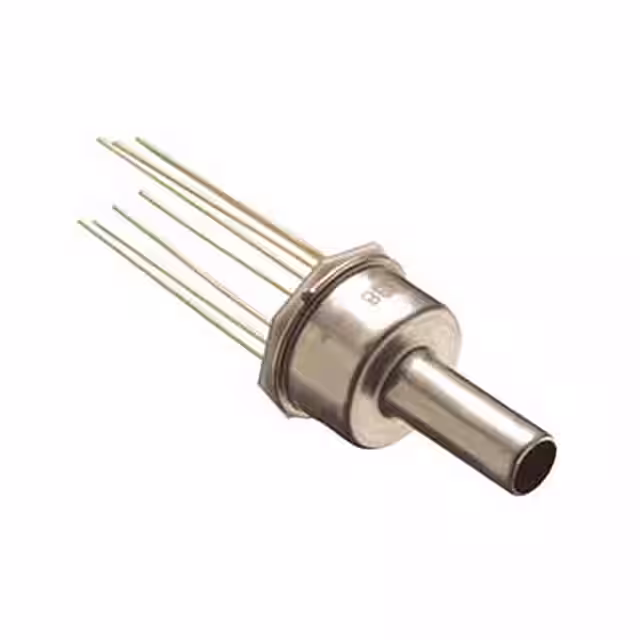

17-030GSENSOR PRES 30PSIG 0-100MV TO-8 |
2,019 | 87.40 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Bulk | 17 | Obsolete | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19 (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C |
|
4515DO-DS5AI002DPSENSOR PRESS GAUGE 2 H2O 8DIP |
3,637 | 62.06 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | - | Differential | 0.07PSI (0.5kPa) | I²C | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C |
|
|

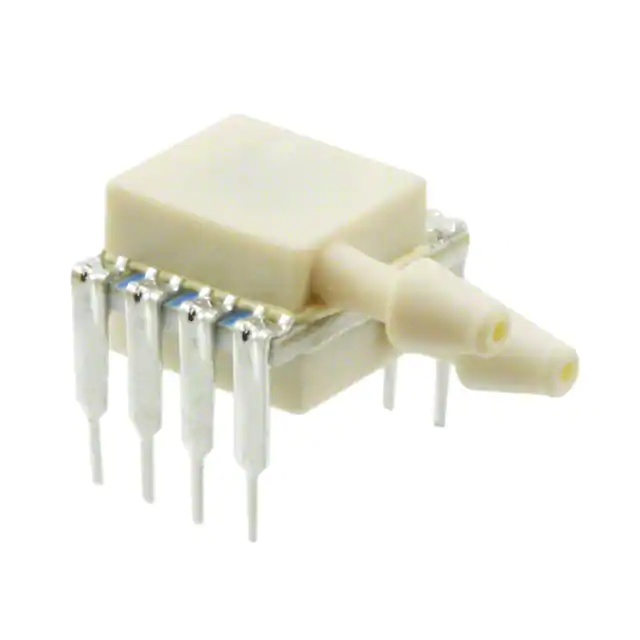

4515DO-DS5AI020DPSENSOR PRESS GAUGE 20 H2O 8DIP |
2,207 | 62.06 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | - | Differential | 0.72PSI (4.98kPa) | I²C | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -10°C ~ 85°C |
|

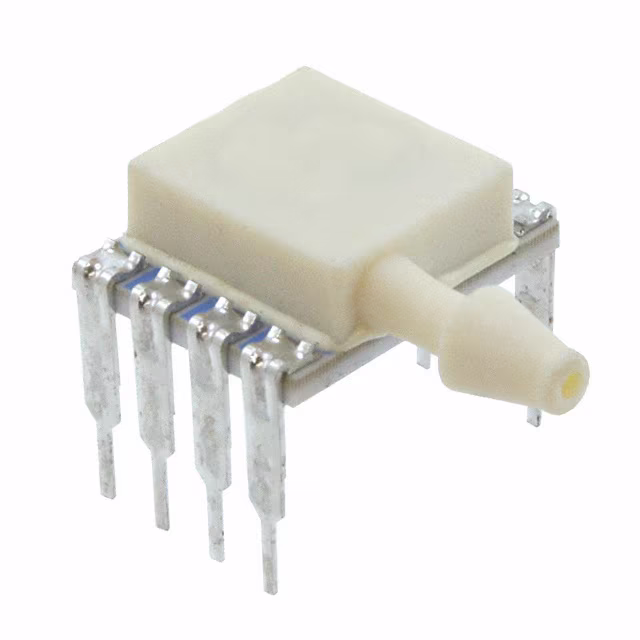

4525DO-SS5AI005GPSENSOR GAUGE PRESS 5PSI 8DIP PCB |
2,122 | 62.06 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525DO | Active | - | Vented Gauge | 5PSI (34.47kPa) | I²C | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C |
|

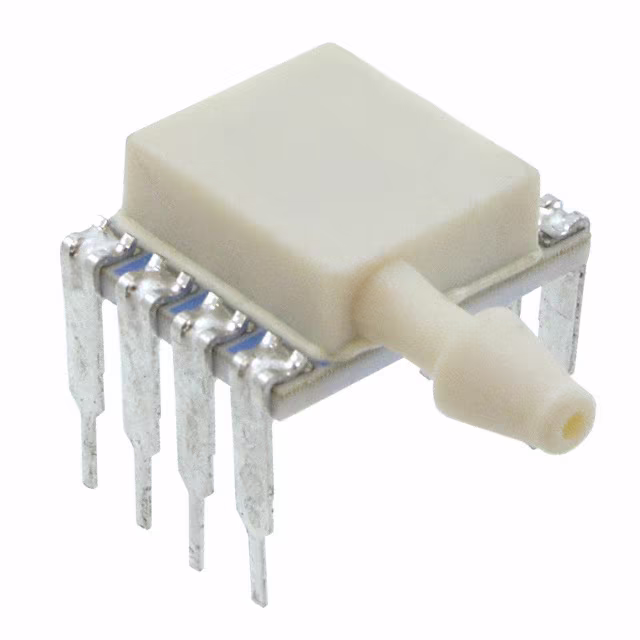

4525DO-SS5AI030GPSENSOR GAUGE PRESS 30PSI 8DIP PC |
3,989 | 62.06 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525DO | Active | - | Vented Gauge | 30PSI (206.84kPa) | I²C | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | 200PSI (1378.95kPa) | -25°C ~ 105°C |
|

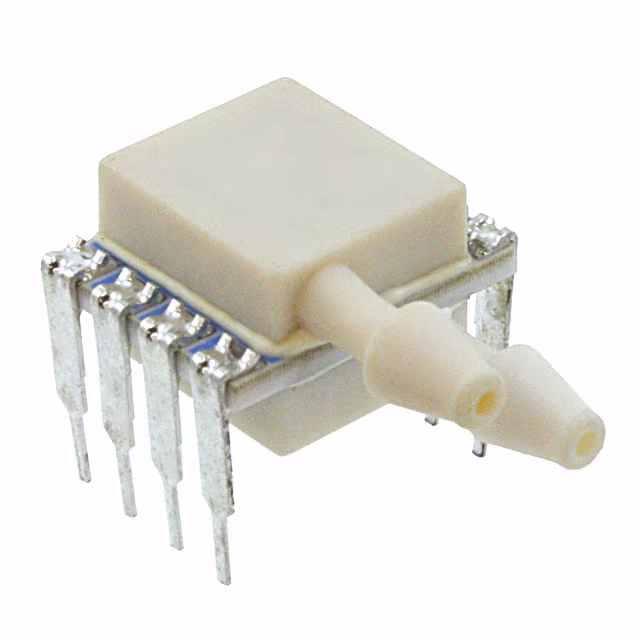

4525DO-DS5AI015DPSENSOR DIFF PRESS 15PSI 8DIP PCB |
3,578 | 59.99 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525DO | Active | - | Differential | 15PSI (103.42kPa) | I²C | 14 b | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -25°C ~ 105°C |
|
86-100G-CSENSOR PRESSURE 100PSIG STEEL |
3,378 | 66.80 |
RFQ |
Datasheet |
Cylinder | Bulk,Box | - | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|

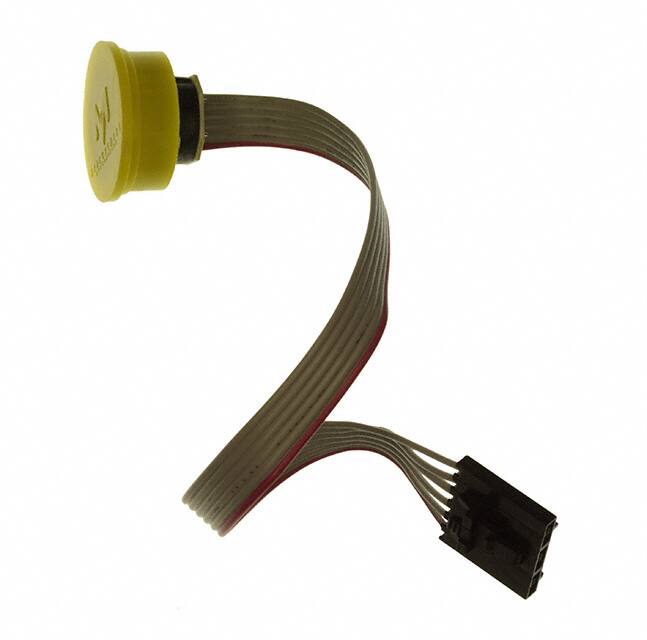

86-500G-CSENSOR PRESSURE 500PSIG STEEL |
2,162 | 133.85 |
RFQ |
Datasheet |
Cylinder | Bulk,Bulk | - | Active | - | Vented Gauge | 500PSI (3447.38kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 1500PSI (10342.14kPa) | -40°C ~ 125°C |
|
86-015A-CSENSOR 15PSIA RIBBON W/CONN |
3,641 | 49.50 |
RFQ |
Datasheet |
Cylinder | Bulk,Box | - | Active | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
82-100A-CSENSOR 100PSIA RIBBON W/CONN |
2,674 | 67.60 |
RFQ |
Datasheet |
- | Bulk | - | Active | Board Mount | Absolute | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|
82-300A-CSENSOR 300PSIA RIBBON W/CONN |
3,237 | 45.09 |
RFQ |
Datasheet |
- | Tube,Box | - | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|
1230-030D-3SSENSOR PRESSURE |
2,052 | 51.79 |
RFQ |
Datasheet |
8-DIP Module | Tray | 1230 | Obsolete | Board Mount | Differential | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.13 (3.18mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -40°C ~ 125°C |
