| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NSCDJJN040MDUNVSENSOR PRESS DIFFERENTIAL |
2,488 | 0.00 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Dual Ports, Same Side | Tray | TruStability® NSC | Active | Board Mount | Differential | ±0.58PSI (±4kPa) | Wheatstone Bridge | 0 mV ~ 37.5 mV (5V) | ±0.25% | 2.7V ~ 6.5V | Male - 0.09 (2.34mm) Tube, Dual | Barbless | - | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C |
|
TSCSNBN030PGUCVSENSOR PRESSURE GAUGE |
2,020 | 20.88 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Bulk,Tray | TruStability® TSC | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 85°C |
|
|
TSCSNBN015PDUCVSENSOR PRESS DIFFERENTIAL |
3,973 | 0.00 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Same Side | Tray | TruStability® TSC | Active | Board Mount | Differential | ±15PSI (±103.42kPa) | Wheatstone Bridge | 0 mV ~ 52.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.19 (4.8mm) Tube, Dual | Barbless | Temperature Compensated | PC Pin | ±60PSI (±413.69kPa) | -40°C ~ 85°C |
|
TBPMANN001PGUCVSENSOR PRESSURE GAUGE |
2,403 | 0.00 |
RFQ |
Datasheet |
4-SMD, J-Lead, Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.11 (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 12.7PSI (87.56kPa) | -40°C ~ 125°C |
|
|

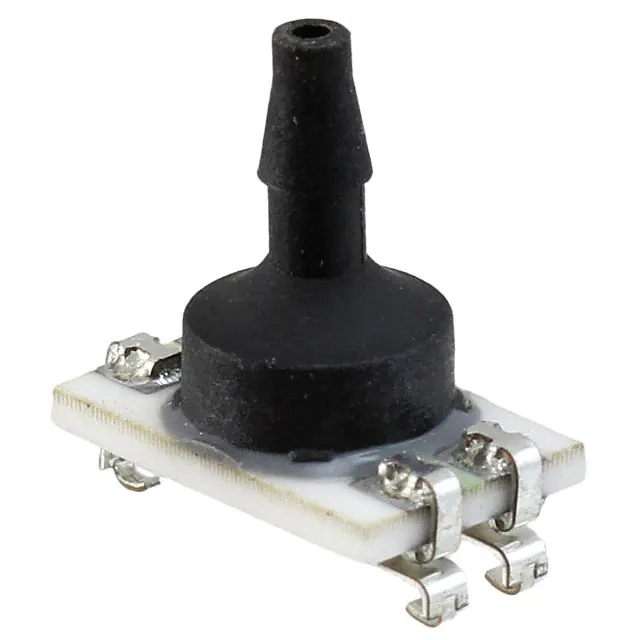

TBPMANN005PGUCVSENSOR PRESSURE GAUGE |
3,395 | 6.87 |
RFQ |
Datasheet |
4-SMD, J-Lead, Top Port | Bulk,Tray | TBP | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11 (2.74mm) Tube | Barbed | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
TBPLLNN005PGUCVSENSOR PRESSURE GAUGE |
2,097 | 0.00 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C |
|

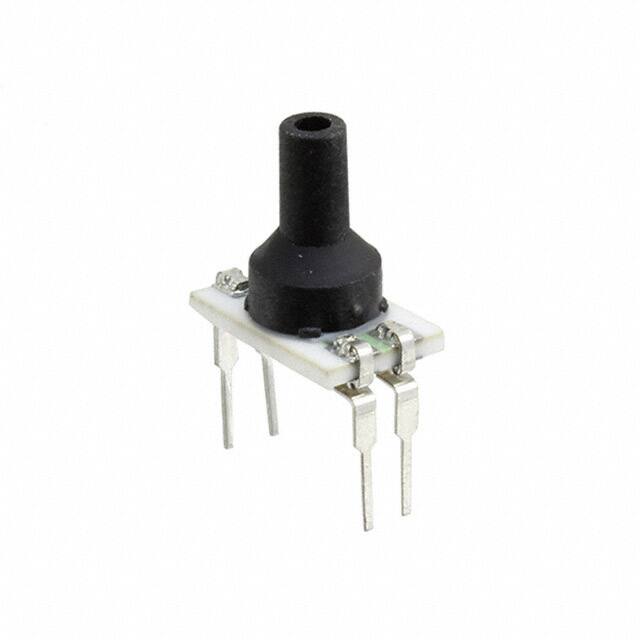

TBPDLNN005PGUCVSENSOR PRESSURE GAUGE |
3,274 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
|
TBPLLNS001PGUCVSENSOR PRESSURE GAUGE |
2,082 | 0.00 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 12.7PSI (87.56kPa) | -40°C ~ 125°C |
|

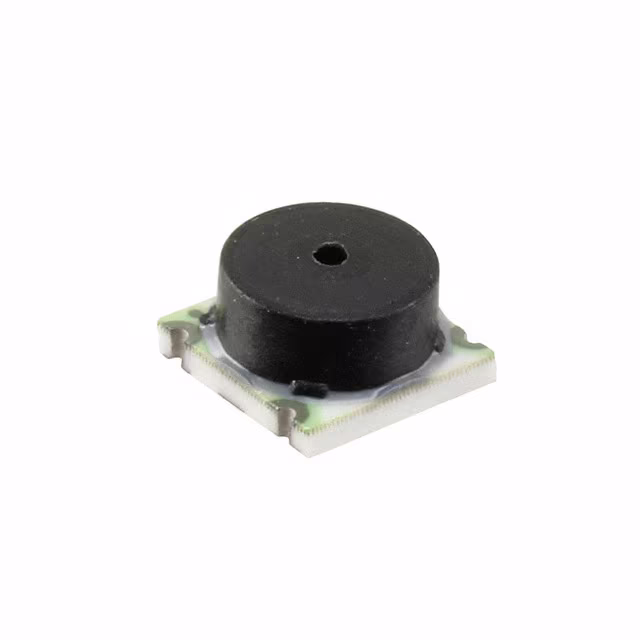

TBPLPNN001PGUCVSENSOR PRESSURE GAUGE |
2,585 | 0.00 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 12.7PSI (87.56kPa) | -40°C ~ 125°C |
|
TBPDPNS001PGUCVSENSOR PRESSURE GAUGE |
2,681 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 125°C |
|

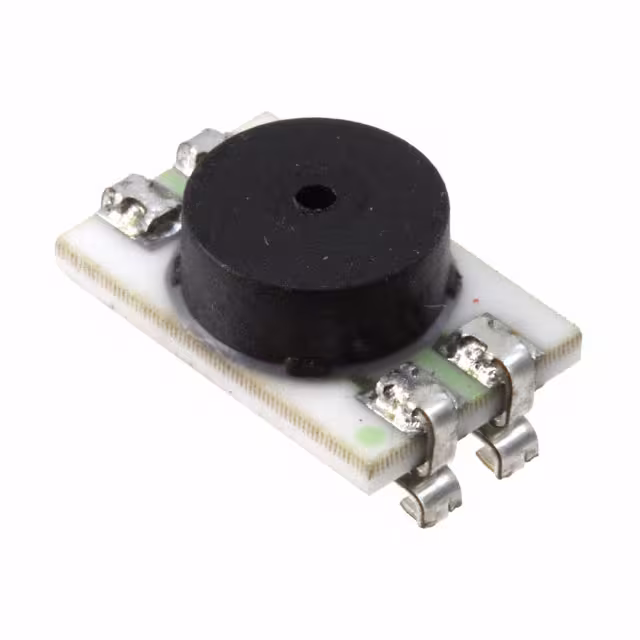

TBPMPNS005PGUCVSENSOR PRESSURE GAUGE |
3,649 | 0.00 |
RFQ |
Datasheet |
4-SMD, J-Lead, Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 30PSI (206.84kPa) | -40°C ~ 125°C |
|
|
TBPDPNS005PGUCVSENSOR PRESSURE GAUGE |
2,204 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -40°C ~ 125°C |
|

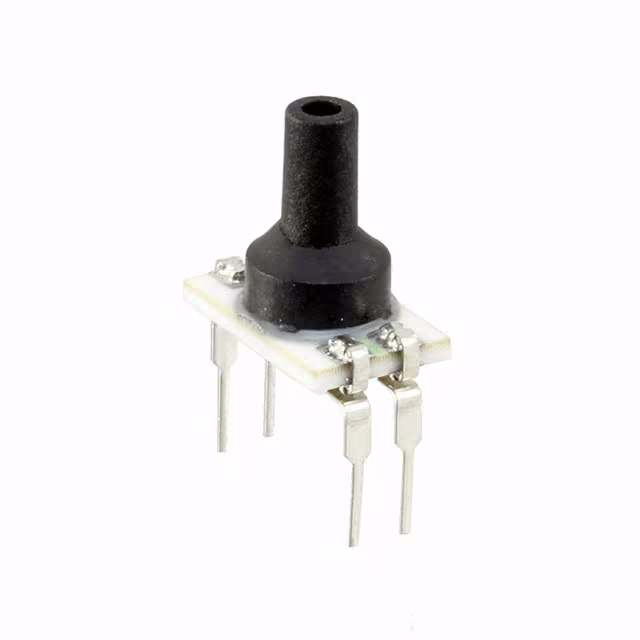

TBPDLNN030PGUCVSENSOR PRESSURE GAUGE |
2,070 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Discontinued at Mosen | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 115PSI (792.9kPa) | -40°C ~ 125°C |
|
TBPMLNN030PGUCVSENSOR PRESSURE GAUGE |
3,738 | 0.00 |
RFQ |
Datasheet |
4-SMD, J-Lead, Top Port | Tray | TBP | Discontinued at Mosen | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 115PSI (792.9kPa) | -40°C ~ 125°C |
|
TBPDLNN015PGUCVSENSOR PRESSURE GAUGE |
2,481 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
|
TBPLLNN015PGUCVSENSOR PRESSURE GAUGE |
3,191 | 0.00 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Tube | TBP | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 27.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
TBPDANS015PGUCVSENSOR PRESSURE GAUGE |
2,513 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Bulk,Tray | TBP | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 26.25 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.11 (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 125°C |
|
|
TBPDPNS100PGUCVSENSOR PRESSURE GAUGE |
3,995 | 6.97 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Bulk,Tray | TBP | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C |
|
|
TBPDPNS150PGUCVSENSOR PRESSURE GAUGE |
2,991 | 0.00 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 150PSI (1034.21kPa) | Wheatstone Bridge | 0 mV ~ 45.75 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | PC Pin | 245PSI (1689.22kPa) | -40°C ~ 125°C |
|
TBPLPNN100PGUCVSENSOR PRESSURE GAUGE |
500 | 12.49 |
RFQ |
Datasheet |
6-SMD, No Lead, Top Port | Bulk,Tray | TBP | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 25.5 mV (5V) | ±0.15% | 1.5V ~ 12V | Male - 0.26 (6.5mm) Tube | Barbless | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | -40°C ~ 125°C |
