| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSCDANN005PGAA5SENSOR PRES 5PSI GAUG 5V DIP |
3,588 | 68.87 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C |
|
HSCSAND005PGAA5SENSOR PRES 5PSI GAUG 5V SIP |
3,058 | 71.22 |
RFQ |
Datasheet |
4-SIP, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.19 (4.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 30PSI (206.84kPa) | -20°C ~ 85°C |
|
SSCDRRN025MDAA3SENSOR PRES +-0.36PSI DIFF DIP |
2,884 | 81.68 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Dual Ports, Same Side | Bulk | TruStability® SSC | Active | Board Mount | Differential | ±0.36PSI (±2.5kPa) | Analog Voltage | 0.33 V ~ 2.97 V | ±0.25% | 3.27V ~ 3.33V | Male - 0.08 (1.93mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C |
|

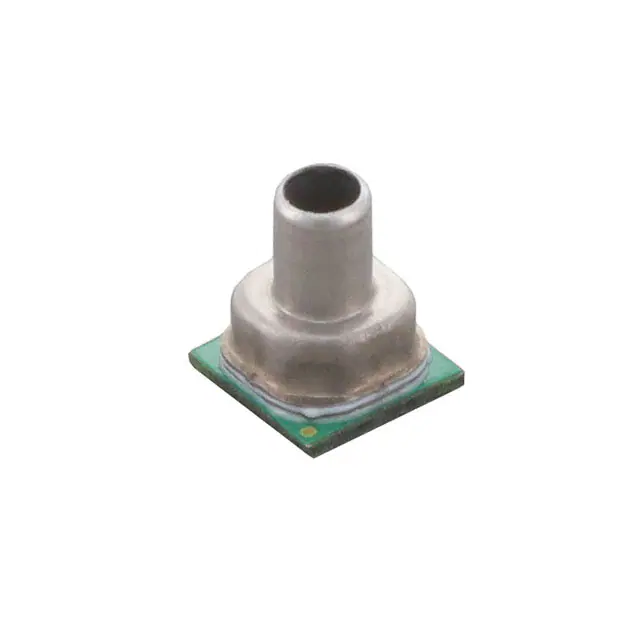

MPRLS0001PG00001CMICRO PRESSURE SENSOR |
3,215 | 15.80 |
RFQ |
Datasheet |
12-SMD Module | Tape & Reel (TR),Cut Tape (CT) | MPR | Active | - | Gauge | 1PSI (6.89kPa) | I²C | 24 b | ±0.25% | 1.8V ~ 3.6V | Male - 0.1 (2.5mm) Tube | Barbless | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 5PSI (34.47kPa) | -40°C ~ 85°C |
|
TBPDANS001PGUCVSENSOR PRESSURE GAUGE |
2,621 | 16.88 |
RFQ |
Datasheet |
4-DIP (0.453, 11.50mm), Top Port | Tray | TBP | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 7.5 mV (5V) | ±0.2% | 1.5V ~ 12V | Male - 0.11 (2.74mm) Tube | Barbed | Temperature Compensated | PC Pin | 12.7PSI (87.56kPa) | -40°C ~ 125°C |
|
NSCSDRN060MDUNVSENSOR PRES 0.87PSI DIFF 12V SIP |
3,775 | 30.14 |
RFQ |
Datasheet |
4-SIP, Dual Ports, Opposite Sides | Bulk | TruStability® NSC | Active | Board Mount | Differential | ±0.87PSI (±6kPa) | Wheatstone Bridge | 0 mV ~ 56.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19 (4.93mm) Tube | Barbed | - | PC Pin | ±12.33PSI (±85kPa) | -40°C ~ 85°C |
|
HSCMNNN015PA2A5SENSOR PRES 5V SMD |
3,212 | 43.05 |
RFQ |
Datasheet |
8-SMD, J-Lead | Bulk | TruStability® HSC | Active | Board Mount | Absolute | 15PSI (103.42kPa) | I²C | 12 b | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | J Lead | 30PSI (206.84kPa) | -20°C ~ 85°C |
|

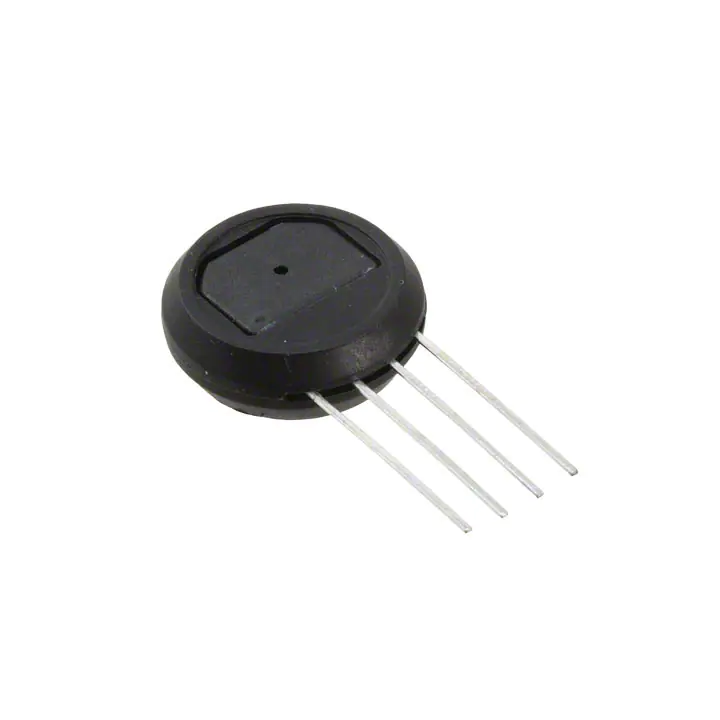

SSCSMNN015PAAA5SENSOR PRES 15 PSI ABSOL 5V SIP |
3,312 | 43.54 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® SSC | Discontinued at Mosen | Board Mount | Absolute | 15PSI (103.42kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 60PSI (413.69kPa) | -40°C ~ 85°C |
|
SSCMRND030PG2A3SENSOR PRES 30PSI GAUG 3.3V SMT |
3,384 | 44.60 |
RFQ |
Datasheet |
8-SMD, J-Lead, Side Port | Bulk | TruStability® SSC | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | I²C | 12 b | ±0.25% | 3V ~ 3.6V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 60PSI (413.69kPa) | -40°C ~ 85°C |
|
|
SSCMRNT250MG2A5SENSOR PRES 250PSI GAUG 5V SMT |
3,019 | 46.54 |
RFQ |
Datasheet |
8-SMD, J-Lead, Side Port | Bulk | TruStability® SSC | Active | Board Mount | Vented Gauge | 0.36PSI (2.5kPa) | I²C | 12 b | ±0.25% | 4.75V ~ 5.25V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | SMD (SMT) Tab | 10.88PSI (75kPa) | -40°C ~ 85°C |
|
X213501ABPSENSOR PRESSURE 4.5 KPA |
2,804 | 20.91 |
RFQ |
- | Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

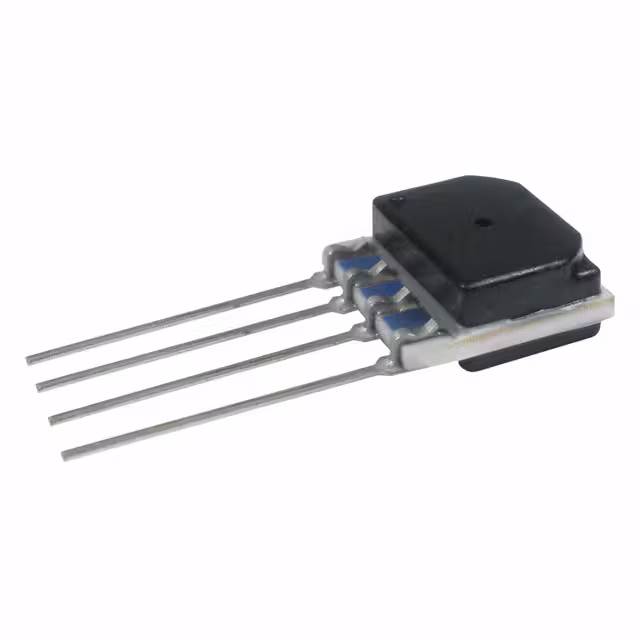

SSCSNNN001PG2A3SENSOR PRES 1PSI GAUG 3.3V SIP |
2,178 | 27.94 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® SSC | Obsolete | Board Mount | Vented Gauge | 1PSI (6.89kPa) | I²C | 12 b | ±0.25% | 3V ~ 3.6V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C |
|
NSCDANN001PGUNVSENSOR PRESS GAUGE 1PSI |
2,571 | 30.14 |
RFQ |
Datasheet |
8-DIP (0.524, 13.30mm), Top Port | Bulk | TruStability® NSC | Active | Board Mount | Vented Gauge | 1PSI (6.89kPa) | Wheatstone Bridge | 0 mV ~ 32.5 mV (5V) | ±0.25% | 1.5V ~ 12V | Male - 0.19 (4.93mm) Tube | Barbed | - | PC Pin | 10PSI (68.95kPa) | -40°C ~ 85°C |
|

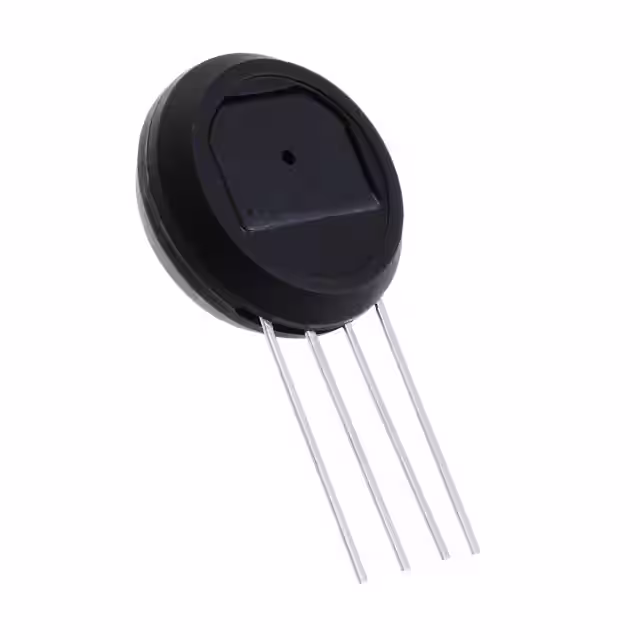

SSCSMNN600MGAF5SENSOR PRES .6BAR GAUG 5V SIP |
3,408 | 32.10 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® SSC | Obsolete | Board Mount | Vented Gauge | 8.7PSI (60kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 29.01PSI (200kPa) | -40°C ~ 85°C |
|
24PCAFA2GSENSOR DIFFERENTIAL +-1 PSI |
2,548 | 33.39 |
RFQ |
Datasheet |
4-DIP Module | Bulk | 24PC | Active | Board Mount | Compound | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 45 mV (10V) | ±1% | 10V ~ 12V | Male - 0.25 (6.4mm) Tube | Barbless | - | PC Pin | ±20PSI (±137.9kPa) | -40°C ~ 85°C |
|
NSCSSNN150PDUNVSENSOR PRESS DIFF 150PSI |
2,718 | 36.36 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® NSC | Active | Board Mount | Differential | ±150PSI (±1034.21kPa) | Wheatstone Bridge | 0 mV ~ 258.5 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | ±250PSI (±1723.69kPa) | -40°C ~ 85°C |
|
|
NSCSSNN001PDUNVSENSOR PRESS DIFF 1PSI |
3,325 | 36.36 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® NSC | Active | Board Mount | Differential | ±1PSI (±6.89kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 1.5V ~ 12V | - | No Port | - | PC Pin | ±10PSI (±68.95kPa) | -40°C ~ 85°C |
|
|
SSCSMNN010KGAF5SENSOR PRES 10KPA GAUG 5V SIP |
2,456 | 43.22 |
RFQ |
Datasheet |
4-SIP Module | Bulk | TruStability® SSC | Active | Board Mount | Vented Gauge | 1.45PSI (10kPa) | Analog Voltage | 0.2 V ~ 4.7 V | ±0.25% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | PC Pin | 12.33PSI (85kPa) | -40°C ~ 85°C |
|
HSCMRNN001BGAA5SENSOR PRESSURE GAUGE 1BAR SMT |
3,173 | 43.80 |
RFQ |
Datasheet |
8-SMD, J-Lead, Side Port | Bulk | TruStability® HSC | Active | Board Mount | Vented Gauge | 14.5PSI (100kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 0.08 (1.93mm) Tube | Barbed | Amplified Output, Temperature Compensated | J Lead | 58.02PSI (400kPa) | -20°C ~ 85°C |
|
TBFLPNS100PGUCVFORCE SENSOR COMP UNAMPLIFIED GE |
3,208 | 43.97 |
RFQ |
Datasheet |
6-SMD Module | Bulk | TBF | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 30.5mV (5V) | ±0.5% | 1.5V ~ 12V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 245PSI (1689.22kPa) | 0°C ~ 50°C |
