| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
270DAZPWR XFMR LAMINATED 76VA CHAS MT |
2,927 | 83.08 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 117V | 520V, 6.3V | 104mA, 3.5A | Single | Dual | Yes | 76VA | Chassis Mount | Wire Leads | 71.37mm L x 82.55mm W | 85.85mm | 2000Vrms |
|
266PA14PWR XFMR LAMINATED 84VA CHAS MT |
2,198 | 83.82 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 7V, Series 14V | Parallel 12A, Series 6A | Dual | Dual | No | 84VA | Chassis Mount | Wire Leads | 71.37mm L x 72.39mm W | 87.38mm | 2000Vrms |
|
|
270DXPWR XFMR LAMINATED 83VA CHAS MT |
3,627 | 84.40 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 104mA, 3A, 2A | Single | Triple | Yes | 83VA | Chassis Mount | Wire Leads | 63.50mm L x 76.20mm W | 77.72mm | 2000Vrms |
|
1182L110PWR XFMR TORO 225VA CHAS MT |
2,848 | 84.54 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 110V, Series 220V | Parallel 2.04A, Series 1.02A | Dual | Dual | No | 225VA | Chassis Mount | Wire Leads | 114.30mm Dia | 47.75mm | 4000Vrms |
|
|
1182F30PWR XFMR TORO 225VA CHAS MT |
3,353 | 84.54 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 30V, Series 60V | Parallel 7.5A, Series 3.75A | Dual | Dual | No | 225VA | Chassis Mount | Wire Leads | 114.30mm Dia | 47.75mm | 4000Vrms |
|
165V10PWR XFMR LAMINATED 200VA CHAS MT |
3,883 | 84.82 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 10V | 20A | Single | Single | Yes | 200VA | Chassis Mount | Wire Leads | 95.25mm L x 88.90mm W | 79.50mm | 2000Vrms |
|
369EXPWR XFMR LAMINATED 45VA CHAS MT |
2,132 | 85.42 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 380V, 6.3V | 75mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 45VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
|
|
266P18PWR XFMR LAMINATED 90VA CHAS MT |
3,266 | 86.23 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 9V, Series 18V | Parallel 10A, Series 5A | Dual | Dual | No | 90VA | Chassis Mount | Wire Leads | 71.37mm L x 77.72mm W | 86.61mm | 2000Vrms |
|

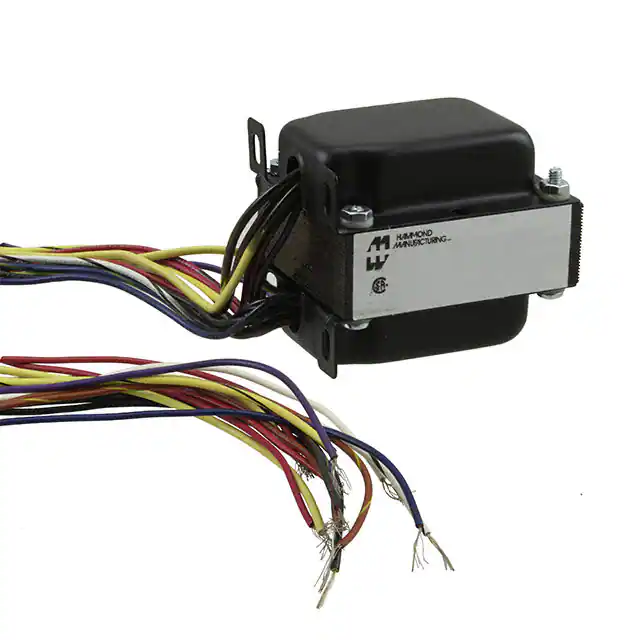

363AXPWR XFMR LAMINATED 32VA CHAS MT |
3,009 | 89.61 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 200V, 5V | 115mA, 2A | Dual, Multiple Taps | Dual | Yes | 32VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms |
|
|
369GXPWR XFMR LAMINATED 50VA CHAS MT |
3,356 | 89.90 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 450V, 6.3V | 75mA, 2.5A | Dual, Multiple Taps | Dual | Yes | 50VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
|
|
369BXPWR XFMR LAMINATED 39VA CHAS MT |
3,967 | 89.90 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 300V, 6.3V | 86mA, 2A | Dual, Multiple Taps | Dual | Yes | 39VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
|
|
165U18PWR XFMR LAMINATED 270VA CHAS MT |
3,133 | 90.08 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 18V | 15A | Single | Single | Yes | 270VA | Chassis Mount | Wire Leads | 114.30mm L x 88.90mm W | 95.25mm | 2000Vrms |
|

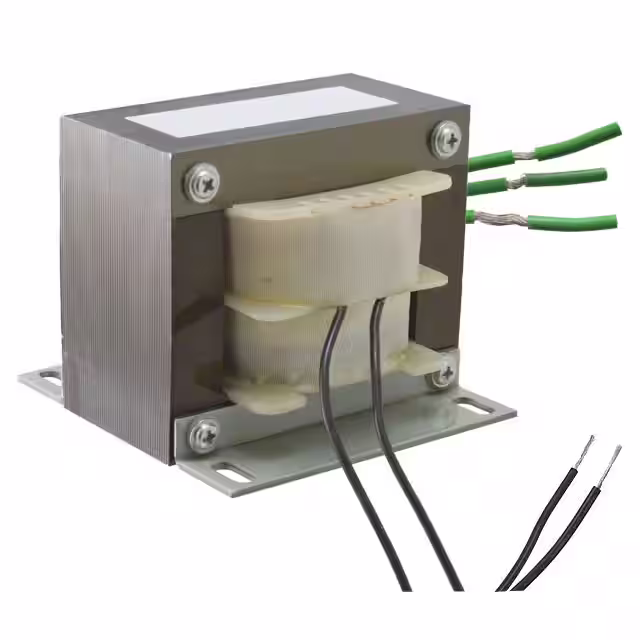

165V12PWR XFMR LAMINATED 252VA CHAS MT |
2,649 | 90.69 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 12.6V | 20A | Single | Single | Yes | 252VA | Chassis Mount | Wire Leads | 95.25mm L x 101.60mm W | 79.50mm | 2000Vrms |
|
|
266P24PWR XFMR LAMINATED 120VA CHAS MT |
3,597 | 91.04 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 10A, Series 5A | Dual | Dual | No | 120VA | Chassis Mount | Wire Leads | 79.50mm L x 72.64mm W | 96.77mm | 2000Vrms |
|
|
273AZPWR XFMR LAMINATED 49VA CHAS MT |
2,585 | 91.61 |
RFQ |
Datasheet |
Bulk | 273 | Active | Laminated Core | 117V | 650V, 6.3V, 5V | 46mA, 2A, 2A | Single | Triple | Yes | 49VA | Chassis Mount | Wire Leads | 63.50mm L x 63.50mm W | 76.20mm | 2000Vrms |
|
167N70PWR XFMR LAMINATED 280VA CHAS MT |
2,136 | 91.85 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 70V | 4A | Single | Single | Yes | 280VA | Chassis Mount | Wire Leads | 95.25mm L x 114.30mm W | 115.82mm | 2000Vrms |
|

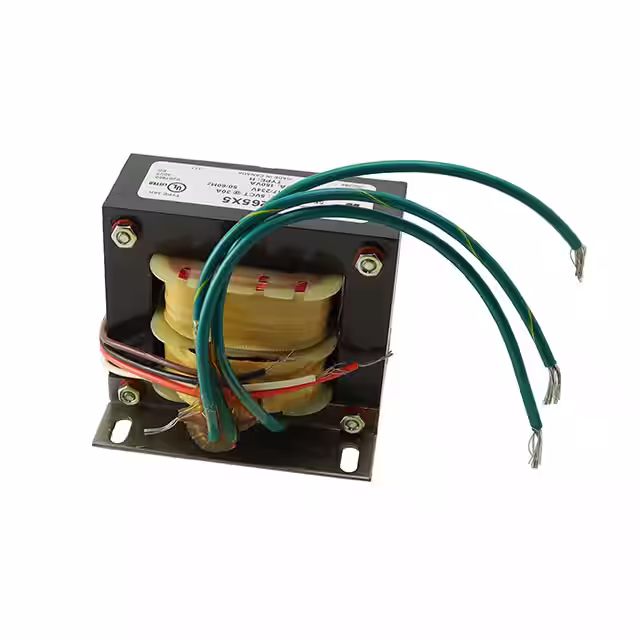

265X5PWR XFMR LAMINATED CHAS MT |
2,922 | 91.99 |
RFQ |
Bulk | 265 | Active | Laminated Core | 117V | 5V | 30A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | - | 79.38mm | - | |
|
|
270EXPWR XFMR LAMINATED 118VA CHAS MT |
2,205 | 92.51 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 144mA, 4A, 3A | Single | Triple | Yes | 118VA | Chassis Mount | Wire Leads | 63.50mm L x 95.25mm W | 77.72mm | 2000Vrms |
|
|
1182K240PWR XFMR TORO 300VA CHAS MT |
2,258 | 93.91 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | 240V | 1.25A | Dual | Single | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms |
|
|
1182M110PWR XFMR TORO 300VA CHAS MT |
2,677 | 93.91 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 110V, Series 220V | Parallel 2.72A, Series 1.36A | Dual | Dual | No | 300VA | Chassis Mount | Wire Leads | 127.00mm Dia | 47.75mm | 4000Vrms |
