| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
266E12XFRMR LAMINATED 1.8VA CHAS MOUNT |
3,130 | 22.41 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 300mA, Series 150mA | Dual | Dual | No | 1.8VA | Chassis Mount | Wire Leads | 52.32mm L x 30.99mm W | 31.75mm | 2000Vrms |
|
166FB24PWR XFMR LAMINATED 9.6VA CHAS MT |
2,555 | 22.78 |
RFQ |
Datasheet |
Box | 166 | Active | Laminated Core | 117V | 24V | 400mA | Single | Single | Yes | 9.6VA | Chassis Mount | Wire Leads | 71.37mm L x 41.40mm W | 42.93mm | 2000Vrms |
|

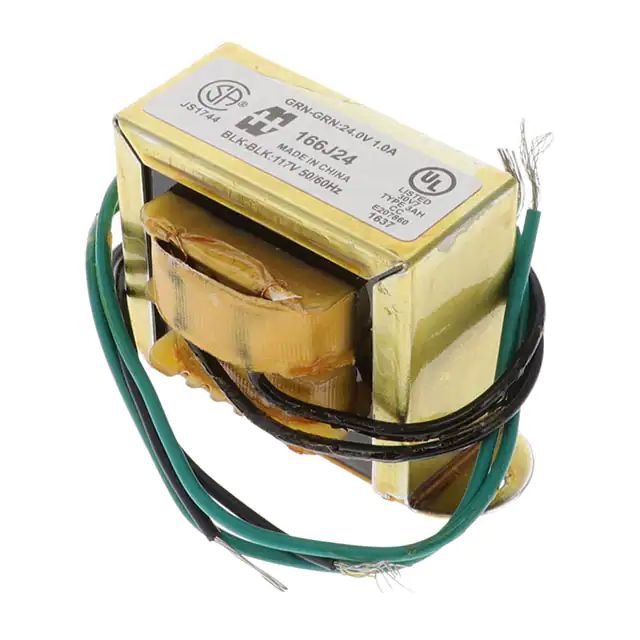

166J24PWR XFMR LAMINATED 24VA CHAS MT |
3,857 | 22.78 |
RFQ |
Box | 166 | Active | Laminated Core | 117V | 24V | 1A | Single | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms | |
|
|
166M2PWR XFMR LAMINATED 7.5VA CHAS MT |
2,275 | 22.78 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 2.5V | 3A | Single | Single | Yes | 7.5VA | Chassis Mount | Wire Leads | 71.37mm L x 38.10mm W | 42.93mm | 2000Vrms |
|
|
266J24PWR XFMR LAMINATED 24VA CHAS MT |
3,650 | 22.82 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Chassis Mount | Wire Leads | 79.50mm L x 50.80mm W | 69.85mm | 2000Vrms |
|
187E20XFRMR LAMINATED 56VA CHAS MOUNT |
3,851 | 23.49 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 20V | 2.8A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|

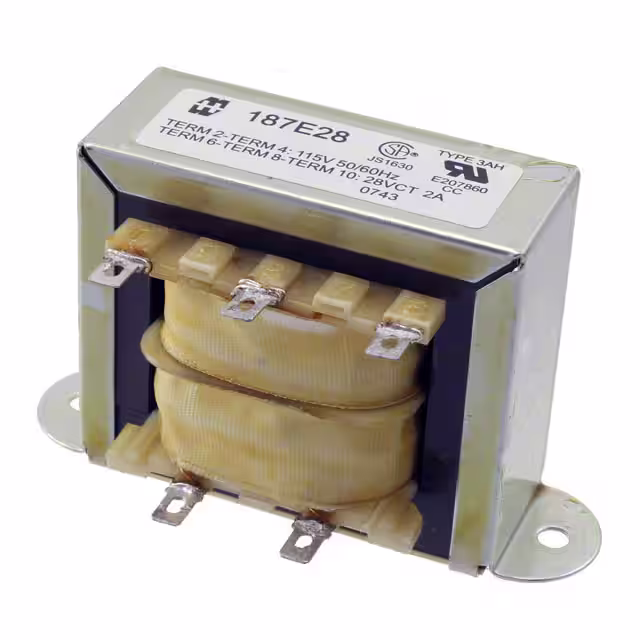

187E28XFRMR LAMINATED 56VA CHAS MOUNT |
3,474 | 23.49 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 55.50mm W | 57.15mm | 2000Vrms |
|
162J10PWR XFMR LAMINATED 36VA TH |
3,016 | 23.57 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
229C56PWR XFMR SEMI-TORO 24VA TH |
2,684 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 850mA, Series 425mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
|
229C34PWR XFMR SEMI-TORO 24VA TH |
2,919 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
|
229C16PWR XFMR SEMI-TORO 24VA TH |
3,546 | 23.61 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 72.90mm W | 31.75mm | 1750Vrms |
|
|
186E12XFRMR LAMINATED 50.4VA CHAS MNT |
3,898 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 12.6V | 4A | Dual | Single | Yes | 50.4VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
|
186E10XFRMR LAMINATED 50VA CHAS MOUNT |
3,586 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 10V | 5A | Dual | Single | Yes | 50VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
|
186E36XFRMR LAMINATED 54VA CHAS MOUNT |
3,869 | 23.69 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 36V | 1.5A | Dual | Single | Yes | 54VA | Chassis Mount | Solder, Quick Connect | 93.47mm L x 45.97mm W | 57.15mm | 2000Vrms |
|
160H24PWR XFMR LAMINATED 24VA TH |
3,794 | 24.38 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
266EA24PWR XFMR LAMINATED 4.8VA CHAS MT |
2,973 | 24.42 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 400mA, Series 200mA | Dual | Dual | No | 4.8VA | Chassis Mount | Wire Leads | 60.45mm L x 40.64mm W | 36.83mm | 2000Vrms |
|
|
266F12CPWR XFMR LAMINATED 4.2VA CHAS MT |
2,227 | 24.42 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 6V, Series 12V | Parallel 700mA, Series 350mA | Dual | Dual | No | 4.2VA | Chassis Mount | Wire Leads | 60.45mm L x 37.59mm W | 36.32mm | 2000Vrms |
|
|
266J24BPWR XFMR LAMINATED 24VA CHAS MT |
3,290 | 25.27 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 115V, 230V | 24V | 1A | Dual | Single | Yes | 24VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 2000Vrms |
|
|
161H34PWR XFMR LAMINATED 24VA TH |
2,845 | 25.65 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Single | Single, Multiple Taps | No | 24VA | Through Hole | PC Pin | 41.40mm L x 57.15mm W | 35.05mm | 2000Vrms |
|
|
166MSPWR XFMR LAMINATED 15VA CHAS MT |
2,217 | 25.86 |
RFQ |
Datasheet |
Bulk | 166 | Active | Laminated Core | 115V | 5V | 3A | Single | Single | Yes | 15VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 50.80mm | 2000Vrms |
