| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
371XPWR XFMR LAMINATED 63VA CHAS MT |
2,541 | 103.61 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 560V, 6.3V, 5V | 69mA, 2A, 2A | Dual, Multiple Taps | Four | Yes | 63VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 77.72mm | 2000Vrms |
|
266M48PWR XFMR LAMINATED 144VA CHAS MT |
3,088 | 107.79 |
RFQ |
Datasheet |
Bulk | 266 | Active | Laminated Core | 117V, 234V | Parallel 24V, Series 48V | Parallel 6A, Series 3A | Dual | Dual | No | 144VA | Chassis Mount | Wire Leads | 79.50mm L x 77.72mm W | 97.54mm | 2000Vrms |
|
291EXPWR XFMR LAMINATED CHAS MT |
3,481 | 127.47 |
RFQ |
Datasheet |
Box | 291 | Active | Laminated Core | 120V | 660V, 6.5V | 276mA, 3.15A | Single | Dual | Yes | - | Chassis Mount | Wire Leads | - | - | - |
|
260KPWR XFMR LAMINATED 197VA CHAS MT |
3,794 | 144.08 |
RFQ |
Datasheet |
Box | 260 | Active | Laminated Core | 100V, 120V, 220V, 240V | 650V, 6.3V, 5V | 230mA, 5A, 3A | Dual, Multiple Taps | Triple | Yes | 197VA | Chassis Mount | Wire Leads | 114.30mm L x 82.55mm W | 95.25mm | - |
|
|
374AXPWR XFMR LAMINATED 136VA CHAS MT |
3,707 | 145.65 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 720V, 6.3V, 5V | 138mA, 3.5A, 3A | Dual, Multiple Taps | Four | Yes | 136VA | Chassis Mount | Wire Leads | 95.25mm L x 79.50mm W | 96.77mm | 2000Vrms |
|
369JXPPWR XFMR LAMINATED 50VA CHAS MT |
2,568 | 289.19 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 500V, 6.3V | 69mA, 2.5A | Dual, Multiple Taps | Triple | Yes | 50VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 78.74mm | 2000Vrms |
|
|
370DAXPPWR XFMR LAMINATED 76VA CHAS MT |
3,599 | 290.90 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 520V, 6.3V | 104mA, 3.5A | Dual, Multiple Taps | Triple | Yes | 76VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms |
|
|
370CAXPPWR XFMR LAMINATED 66VA CHAS MT |
2,289 | 292.99 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 500V, 6.3V, 5V | 81mA, 2.5A, 2A | Dual, Multiple Taps | Triple | Yes | 66VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms |
|
|
370DXPPWR XFMR LAMINATED 86VA CHAS MT |
2,649 | 293.98 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 104mA, 3A, 2A | Dual, Multiple Taps | Triple | Yes | 86VA | Chassis Mount | Wire Leads | 84.07mm L x 71.37mm W | 86.89mm | 2000Vrms |
|
|
370XPPWR XFMR LAMINATED 41VA CHAS MT |
2,376 | 295.03 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 480V, 6.3V, 5V | 46mA, 1.5A, 2A | Dual, Multiple Taps | Triple | Yes | 41VA | Chassis Mount | Wire Leads | 69.85mm L x 63.50mm W | 77.72mm | 2000Vrms |
|
|
370EXPPWR XFMR LAMINATED 119VA CHAS MT |
3,935 | 315.92 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 144mA, 4A, 3A | Dual, Multiple Taps | Triple | Yes | 119VA | Chassis Mount | Wire Leads | 95.25mm L x 79.50mm W | 96.77mm | 2000Vrms |
|
|
370FXPPWR XFMR LAMINATED 141VA CHAS MT |
2,548 | 406.38 |
RFQ |
Datasheet |
Bulk | 300 | Active | Laminated Core | 100V, 110V, 120V, 200V, 220V, 240V | 550V, 6.3V, 5V | 173mA, 5A, 3A | Dual, Multiple Taps | Triple | Yes | 141VA | Chassis Mount | Wire Leads | 99.82mm L x 79.50mm W | 96.52mm | 2000Vrms |
|

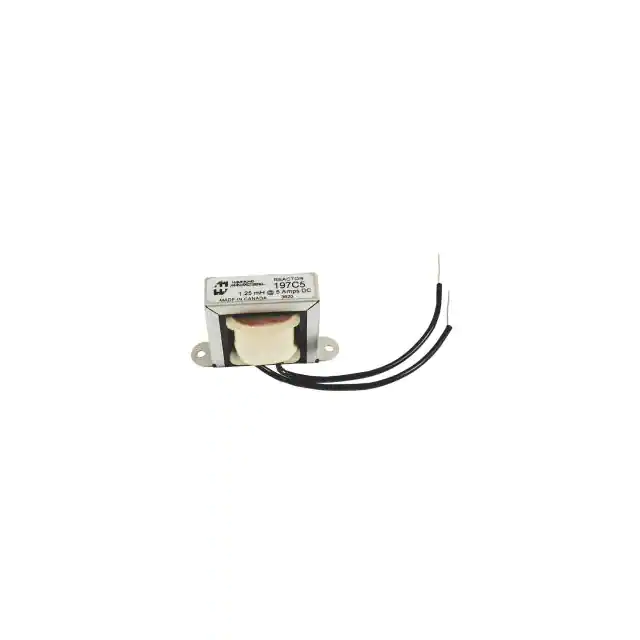

197C5HIGH FREQUENCY REACTOR, 1.25 MH |
2,633 | 3.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 5A | Single | Single | No | - | Chassis Mount | Wire Leads | 82.55mm L x 40.77mm W | 49.66mm | |
|

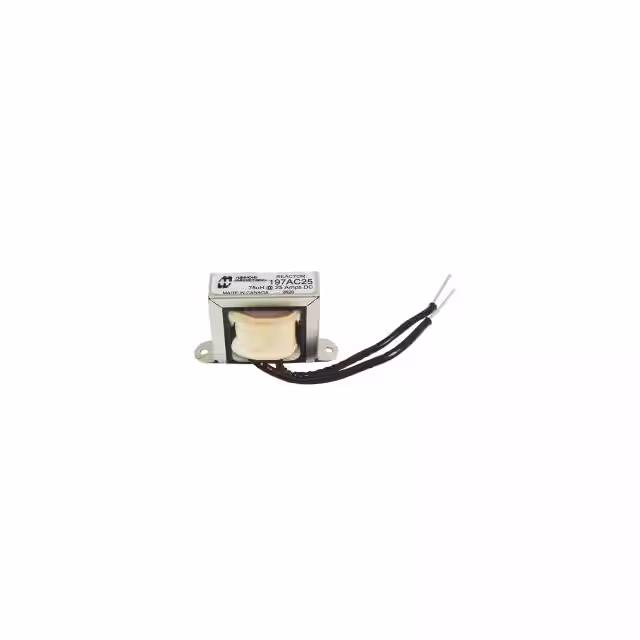

197AC25HIGH FREQUENCY REACTOR, 0.075 MH |
2,141 | 28.12 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 25A | Single | Single | No | - | Chassis Mount | Wire Leads | 82.55mm L x 40.77mm W | 50.67mm | 2000Vrms |
|

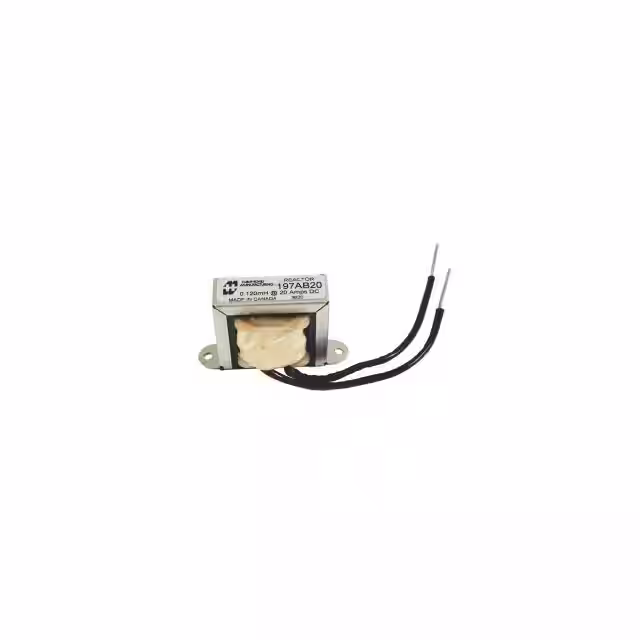

197AB20HIGH FREQUENCY REACTOR, 0.12 MH |
3,841 | 6.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 20A | Single | Single | No | - | Chassis Mount | Wire Leads | 82.55mm L x 40.77mm W | 50.67mm | |
|

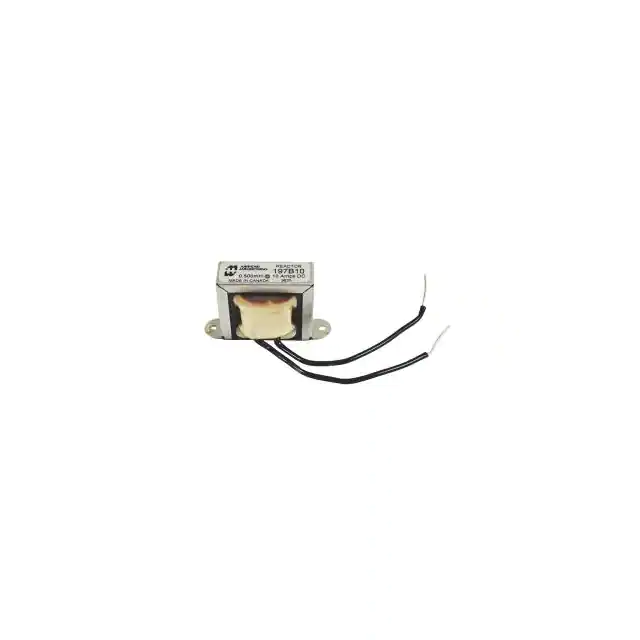

197B10HIGH FREQUENCY REACTOR, 0.5 MH |
2,515 | 7.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 10A | Single | Single | No | - | Chassis Mount | Wire Leads | 82.55mm L x 40.77mm W | 50.67mm | |
|

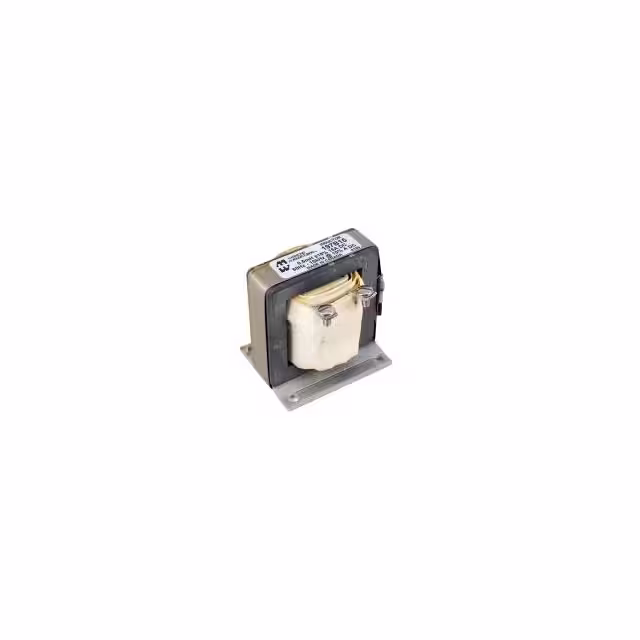

197B15HIGH FREQUENCY REACTOR, 0.5 MH |
3,115 | 11.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 15A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 86.36mm L x 68.28mm W | 84.15mm | |
|
197E10HIGH FREQUENCY REACTOR, 3.5 MH |
2,936 | 2.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 10A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 123.19mm L x 91.69mm W | 97.92mm | |
|

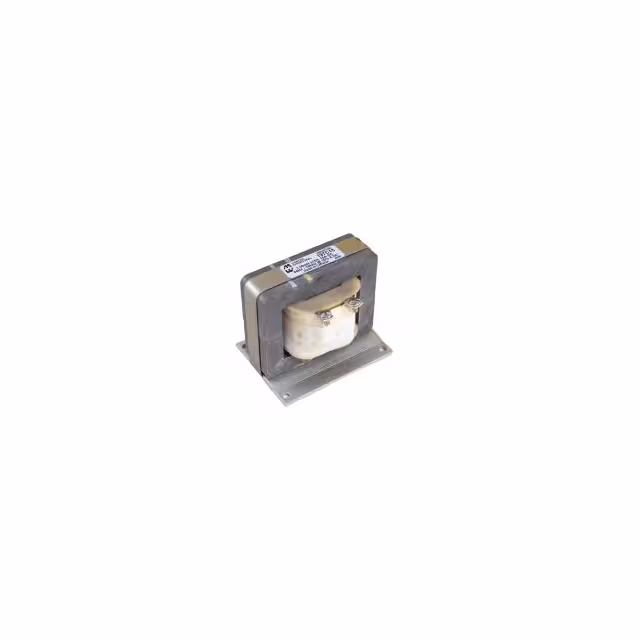

197C15HIGH FREQUENCY REACTOR, 1.35 MH |
3,209 | 7.00 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 15A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 123.19mm L x 87.63mm W | 97.92mm | |
|

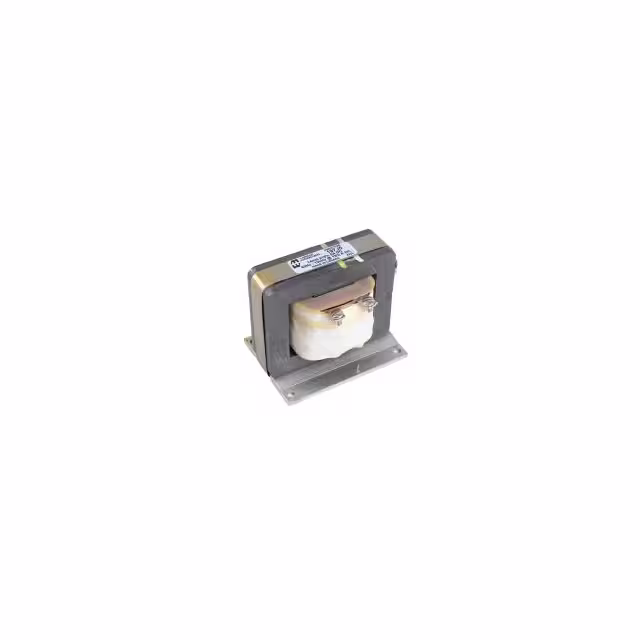

197J5HIGH FREQUENCY REACTOR, 14 MH, 5 |
3,038 | 109.12 |
RFQ |
Datasheet |
Box | 197 | Active | - | - | - | 5A | Single | Single | No | - | Chassis Mount | Solder, Quick Connect | 123.19mm L x 91.69mm W | 97.92mm | 2500Vrms |
