Home > Products > Transformers > Power Transformers

Power Transformers(6768)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
HS12F1BS PWR XFMR LAMINATED 1000VA CHAS SolaHD	2,013	377.97	RFQ	PDF	Bulk	-	Active	Laminated Core	-	120V, 240V	8.33A	Dual, Multiple Taps	Dual	No	1000VA	Chassis Mount	Solder, Quick Connect	152.40mm L x 127.00mm W	254.00mm	-
F16-150 PWR XFMR LAMINATED 2.5VA TH Triad Magnetics	3,198	8.54	RFQ	PDF	Box	Split Pack™, Class 2/3, F	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Single	Dual	No	2.5VA	Through Hole	PC Pin	34.93mm L x 28.58mm W	30.15mm	2500Vrms
CTX02-14659-R PWR XFMR PUSH PULL 547UH Eaton - Electronics Division	3,789	10.98	RFQ	PDF	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-
DP-241-5-120 PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	3,631	16.09	RFQ	PDF	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	120V	100mA	Dual	Single	Yes	12VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 36.30mm W	42.80mm	2500Vrms
LP-230-50 PWR XFMR SEMI-TORO 12VA TH Signal Transformer	3,186	17.52	RFQ	PDF	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 100mA, Series 50mA	Dual	Dual	No	12VA	Through Hole	PC Pin	63.50mm L x 50.80mm W	27.10mm	1500Vrms
IF-4-16 PWR XFMR SEMI-TORO 4VA TH Signal Transformer	2,236	18.26	RFQ	PDF	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 500mA, Series 250mA	Dual	Dual	No	4VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	19.60mm	4000Vrms
IF-6-20 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,326	18.90	RFQ	PDF	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 600mA, Series 300mA	Dual	Dual	No	6VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	22.60mm	4000Vrms

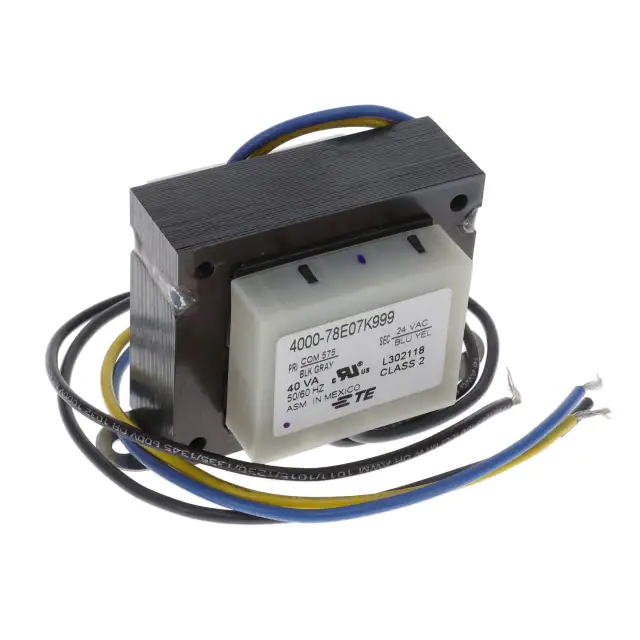

4000-78E07K999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,206	0.00	RFQ	PDF	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	575V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	90.47mm L x 55.37mm W	55.58mm	-
L01-6372 PWR XFMR TORO 35VA TH Amgis, LLC	2,051	31.59	RFQ	PDF	Tray	L01	Active	Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 2.916A, Series 1.458A	Dual	Dual	No	35VA	Through Hole	PC Pin	72.00mm L x 72.00mm W	37.50mm	4000Vrms

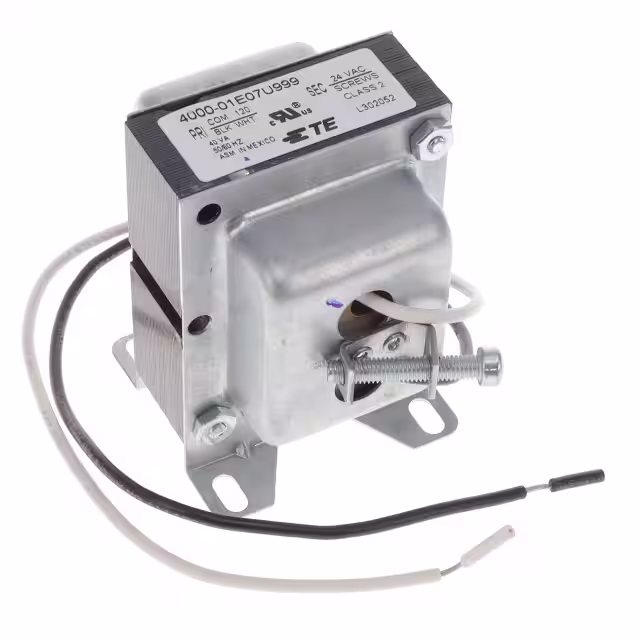

4000-01E07U999 PWR XFMR LAMINATED 40VA CHAS MT TE Connectivity Potter & Brumfield Relays	3,549	0.00	RFQ	PDF	Bulk	4000, Products Unlimited	Obsolete	Laminated Core	120V	24V	-	Single	Single	No	40VA	Chassis Mount	Wire Leads	-	-	-
ECO-105-28 PWR XFMR LAMINATED 105VA CHAS MT Signal Transformer	3,272	77.60	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 7.4A, Series 3.7A	Dual	Dual	No	105VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	96.00mm	4000Vrms
ECO-140-28 PWR XFMR LAMINATED 140VA CHAS MT Signal Transformer	2,254	86.51	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 10A, Series 5A	Dual	Dual	No	140VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	106.00mm	4000Vrms
ECO-140-48 PWR XFMR LAMINATED 140VA CHAS MT Signal Transformer	2,210	86.78	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 5.8A, Series 2.9A	Dual	Dual	No	140VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	106.00mm	4000Vrms
ECO-140-24 PWR XFMR LAMINATED 140VA CHAS MT Signal Transformer	3,231	86.80	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 11.6A, Series 5.8A	Dual	Dual	No	140VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	106.00mm	4000Vrms
ECO-140-40 PWR XFMR LAMINATED 140VA CHAS MT Signal Transformer	3,173	86.95	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 7A, Series 3.5A	Dual	Dual	No	140VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	106.00mm	4000Vrms
ECO-170-48 PWR XFMR LAMINATED 170VA CHAS MT Signal Transformer	3,525	97.92	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 7A, Series 3.5A	Dual	Dual	No	170VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
ECO-170-40 PWR XFMR LAMINATED 170VA CHAS MT Signal Transformer	3,933	98.08	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 20V, Series 40V	Parallel 8.4A, Series 4.2A	Dual	Dual	No	170VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
ECO-170-28 PWR XFMR LAMINATED 170VA CHAS MT Signal Transformer	3,090	98.48	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 12A, Series 6A	Dual	Dual	No	170VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
ECO-170-24 PWR XFMR LAMINATED 170VA CHAS MT Signal Transformer	3,104	98.69	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 14A, Series 7A	Dual	Dual	No	170VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
ECO-170-230 PWR XFMR LAMINATED 170VA CHAS MT Signal Transformer	3,650	98.92	RFQ	PDF	Box	EcoTran	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.5A, Series 740mA	Dual	Dual	No	170VA	Chassis Mount	Terminal Block	90.00mm L x 106.00mm W	116.00mm	4000Vrms
