| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXM4AB3P7HARMONY, MINIATURE PLUG-IN RELAY |
3,111 | 12.31 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 230VAC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 15.3 mA | Non Latching | Lighted Indicator | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|

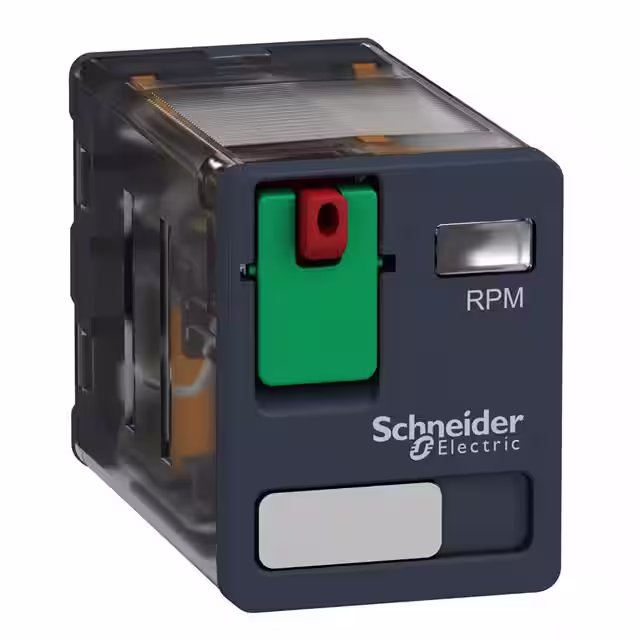

RPM21E7HARMONY, POWER PLUG-IN RELAY, 15 |
2,311 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VAC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 67.8 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RPM21FDHARMONY, POWER PLUG-IN RELAY, 15 |
2,551 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 110VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 8.2 mA | Non Latching | Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|

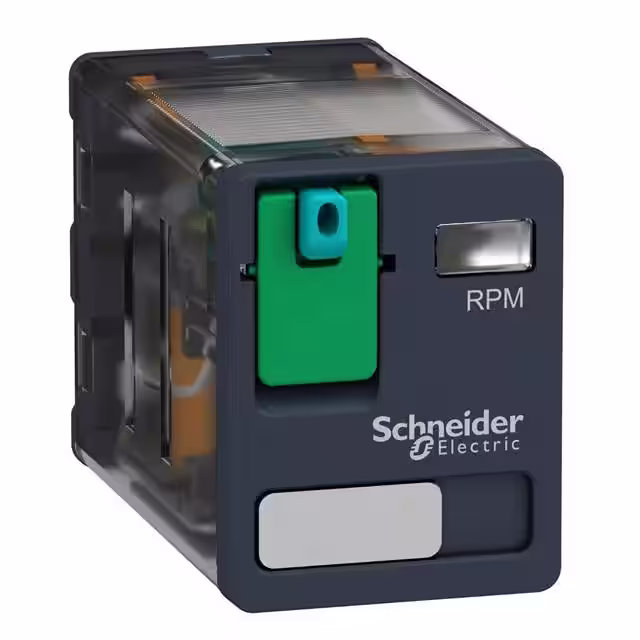

RPM21EDHARMONY, POWER PLUG-IN RELAY, 15 |
3,821 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 18.8 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RXM4AB1MDHARMONY, MINIATURE PLUG-IN RELAY |
2,068 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 220VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | - | Non Latching | Test Button | Plug In | - | - | 176 VDC | 22 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
RXM4GB1F7HARMONY, MINIATURE PLUG-IN RELAY |
2,245 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 33.1 mA | Non Latching | Test Button | Plug In | - | - | 96 VAC | 18 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RXM4AB1E7HARMONY, MINIATURE PLUG-IN RELAY |
3,023 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VAC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 67.6 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4AB1P7HARMONY, MINIATURE PLUG-IN RELAY |
2,381 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 230VAC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 15.3 mA | Non Latching | Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|

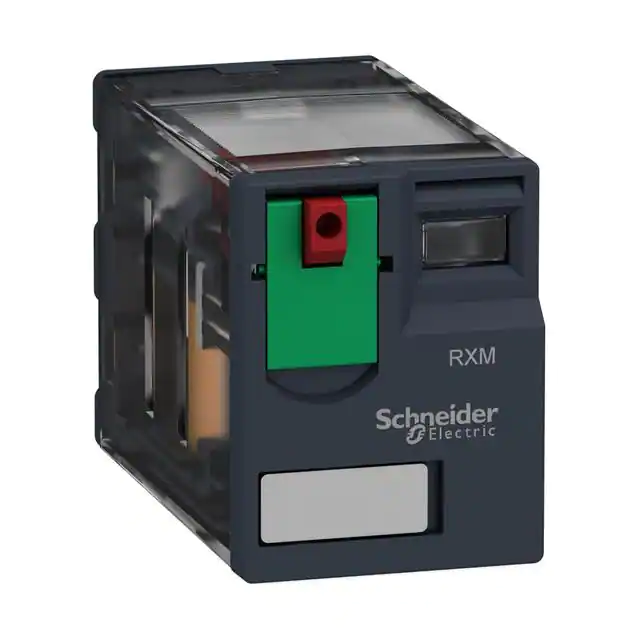

RXM4AB1U7HARMONY, MINIATURE PLUG-IN RELAY |
2,833 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 240VAC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 13.5 mA | Non Latching | Test Button | Plug In | - | - | 192 VAC | 36 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4GB1E7HARMONY, MINIATURE PLUG-IN RELAY |
3,023 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VAC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 67.6 mA | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RXM4GB1P7HARMONY, MINIATURE PLUG-IN RELAY |
2,617 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 230VAC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 15.3 mA | Non Latching | Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RXM4GB1JDHARMONY, MINIATURE PLUG-IN RELAY |
2,014 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 12VDC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 75 mA | Non Latching | Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RXM4AB1EDHARMONY, MINIATURE PLUG-IN RELAY |
2,222 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 18.8 mA | Non Latching | - | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4AB1FDHARMONY, MINIATURE PLUG-IN RELAY |
3,066 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 110VDC | 4PDT (4 Form C) | 6 A | 250VAC, 28VDC - Max | 8.2 mA | Non Latching | - | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4GB1BDHARMONY, MINIATURE PLUG-IN RELAY |
2,665 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 36.9 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RXM4GB1B7HARMONY, MINIATURE PLUG-IN RELAY |
2,129 | 12.73 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VAC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 133.3 mA | Non Latching | Test Button | Plug In | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
RXM2AB2FDHARMONY, MINIATURE PLUG-IN RELAY |
3,451 | 13.14 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 110VDC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 8.2 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 88 VDC | 11 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RXM2AB2E7HARMONY, MINIATURE PLUG-IN RELAY |
2,755 | 13.14 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VAC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 67.6 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VAC | 7.2 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RXG21E7HARMONY, INTERFACE PLUG-IN RELAY |
2,590 | 13.14 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | Non Latching | Test Button | Plug In | - | - | 38.4 VAC | 14.4 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|
|
RXM2AB2EDHARMONY, MINIATURE PLUG-IN RELAY |
2,684 | 13.14 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 48VDC | DPDT (2 Form C) | 12 A | 250VAC, 28VDC - Max | 18.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 38.4 VDC | 4.8 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
