| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPM22F7ZELIO RPM, POWER PLUGIN RELAY, 2 |
2,317 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 27.1 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 18 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|

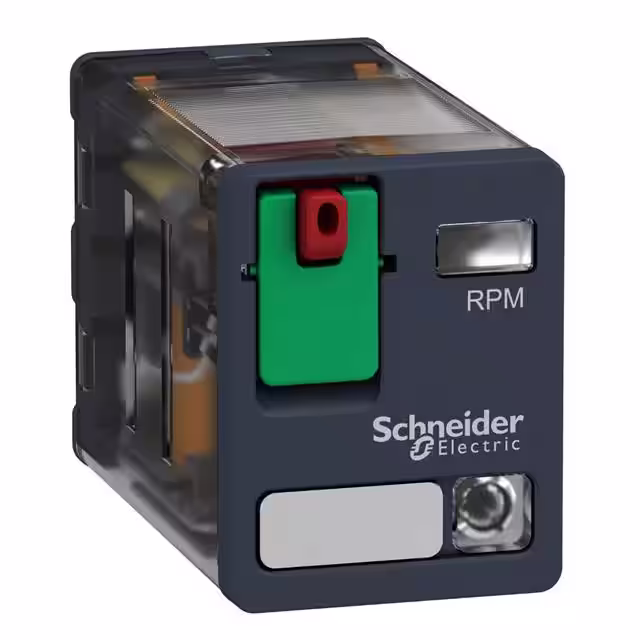

RPM22B7HARMONY, POWER PLUG-IN RELAY, 15 |
3,935 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VAC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 135.6 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RXM4AB2F7ZELIO, RXM, MINIATURE PLUGIN REL |
2,723 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 27.1 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 96 VAC | 18 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RPM22BDHARMONY, POWER PLUG-IN RELAY, 15 |
3,813 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 37.5 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RPM22JDHARMONY, POWER PLUG-IN RELAY, 15 |
2,894 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 12VDC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 75 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
RXM4AB2BDHARMONY, MINIATURE PLUG-IN RELAY |
3,030 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4GB2BDHARMONY, MINIATURE PLUG-IN RELAY |
2,468 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | 4PDT (4 Form C) | 3 A | 250VAC, 28VDC - Max | 36.9 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VDC | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 55°C | Silver (Ag), Gold (Au) |
|
|
RPM22P7HARMONY, POWER PLUG-IN RELAY, 15 |
3,252 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 230VAC | DPDT (2 Form C) | 15 A | 250VAC, 28VDC - Max | 14.1 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4AB2B7HARMONY, MINIATURE PLUG-IN RELAY |
2,855 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VAC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 133.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 19.2 VAC | 3.6 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|
|
RXM4AB2P7HARMONY, MINIATURE PLUG-IN RELAY |
2,518 | 12.34 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 230VAC | 4PDT (4 Form C) | 5 A | 250VAC, 28VDC - Max | 15.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | 184 VAC | 34.5 VAC | 20 ms | 20 ms | -40°C ~ 55°C | Silver Nickel (AgNi) |
|

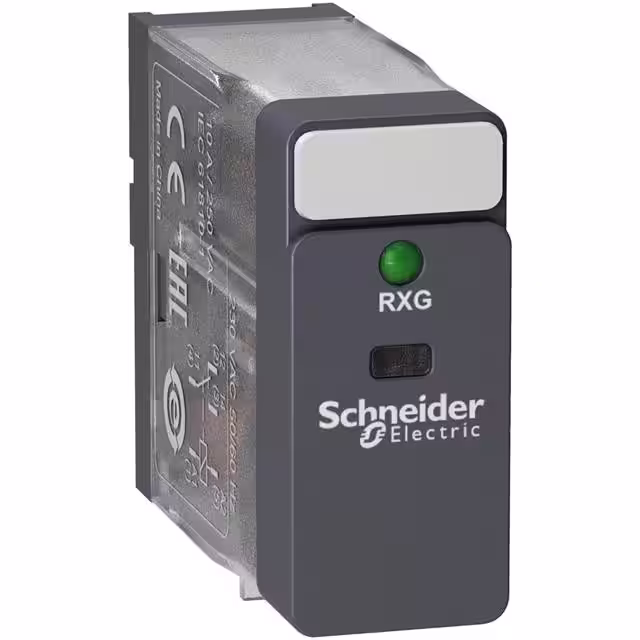

RXG13F7HARMONY, INTERFACE PLUG-IN RELAY |
2,765 | 12.52 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | Non Latching | Lighted Indicator | Plug In | - | - | - | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

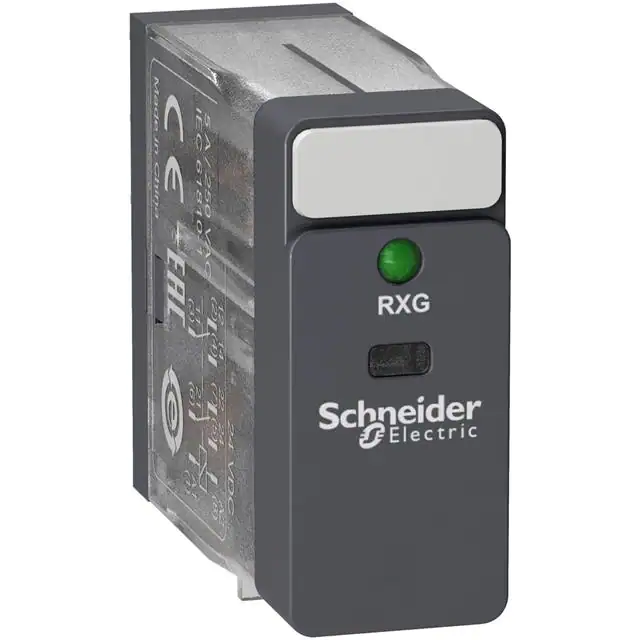

RXG23BDHARMONY, INTERFACE PLUG-IN RELAY |
2,124 | 12.71 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | Non Latching | Lighted Indicator | Plug In | - | - | - | 2.4 VDC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

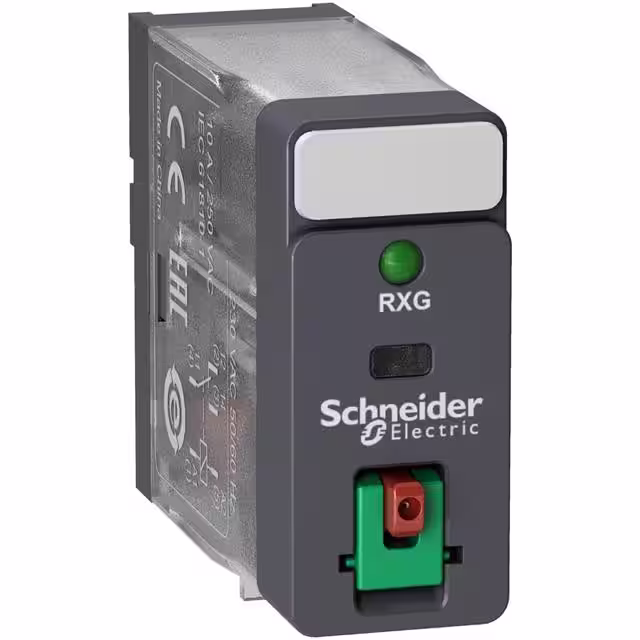

RXG12F7HARMONY, INTERFACE PLUG-IN RELAY |
2,765 | 12.87 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | - | Non Latching | Lighted Indicator, Test Button | Plug In | - | - | - | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

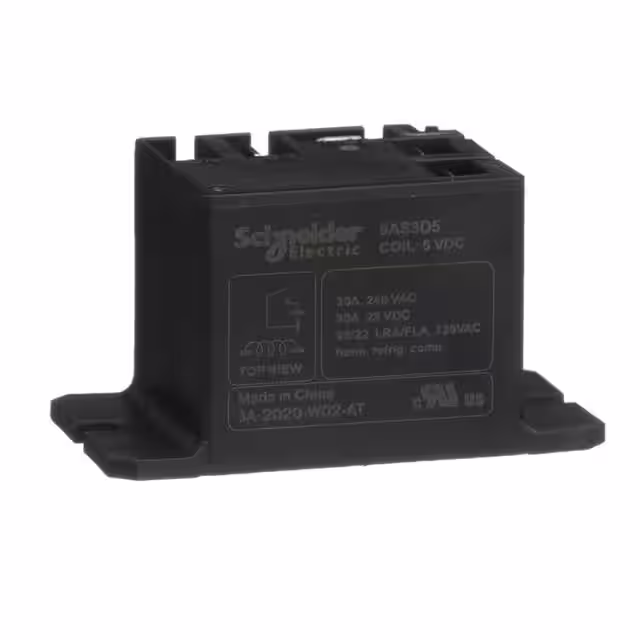

9AS3D5ELECTROMECHNICAL POWER RELAYS, S |
2,288 | 13.77 |
RFQ |
Datasheet |
Box | Harmony | Active | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 28VDC - Max | 185.2 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy |
|

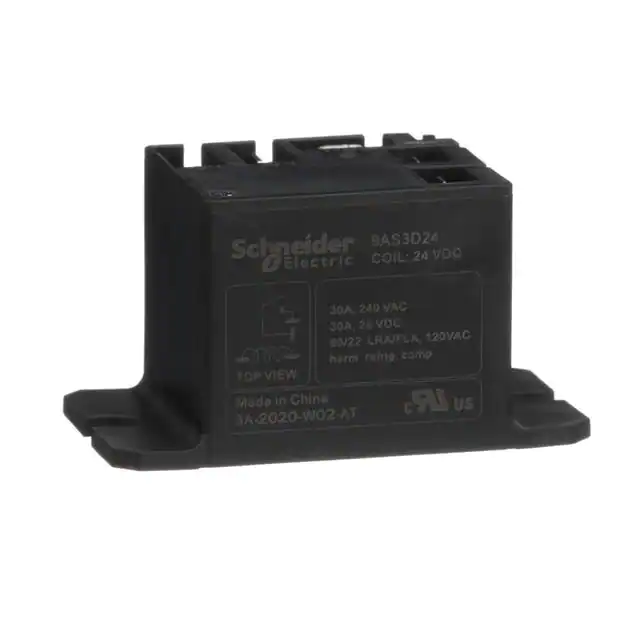

9AS3D24ELECTROMECHNICAL POWER RELAYS, S |
2,272 | 13.77 |
RFQ |
Datasheet |
Box | Harmony | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC, 28VDC - Max | 36.4 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | - | 19.2 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy |
|
RSL1AB4BDHARMONY, SLIM INTERFACE PLUG-IN |
2,496 | 13.96 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 24VDC | SPDT (1 Form C) | 6 A | 277VAC - Max | 7.1 mA | Non Latching | - | Plug In | - | - | 18 VDC | 1.2 VDC | 12 ms | 5 ms | -40°C ~ 55°C | Silver Tin Oxide (AgSnO) |
|

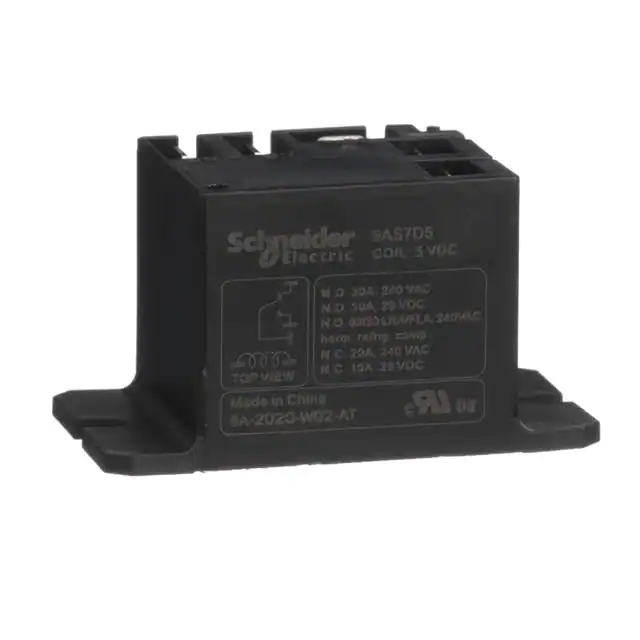

9AS7D5ELECTROMECHNICAL POWER RELAYS, S |
3,137 | 14.48 |
RFQ |
Datasheet |
Box | Harmony | Active | Chassis Mount | 5VDC | SPDT (1 Form C) | 30 A | 277VAC, 28VDC - Max | 185.2 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy |
|

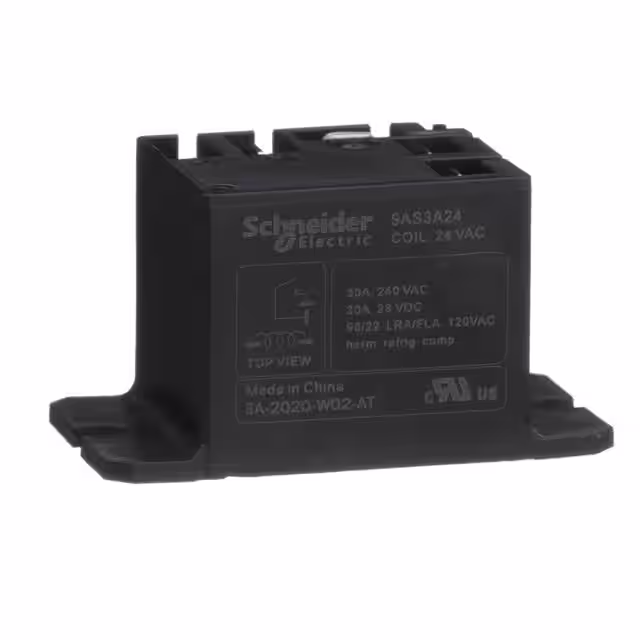

9AS3A24ELECTROMECHNICAL POWER RELAYS, S |
3,389 | 15.13 |
RFQ |
Datasheet |
Box | Harmony | Active | Chassis Mount | 24VAC | SPST-NO (1 Form A) | 30 A | 277VAC, 28VDC - Max | 24 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | - | 20.4 VAC | 4.8 VAC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy |
|
RXG23F7HARMONY, INTERFACE PLUG-IN RELAY |
3,926 | 15.59 |
RFQ |
Datasheet |
Box | Harmony | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | - | Non Latching | Lighted Indicator | Plug In | - | - | - | 36 VAC | 20 ms | 20 ms | -40°C ~ 70°C | Silver Tin Oxide Indium Oxide (AgSnOInO) |
|

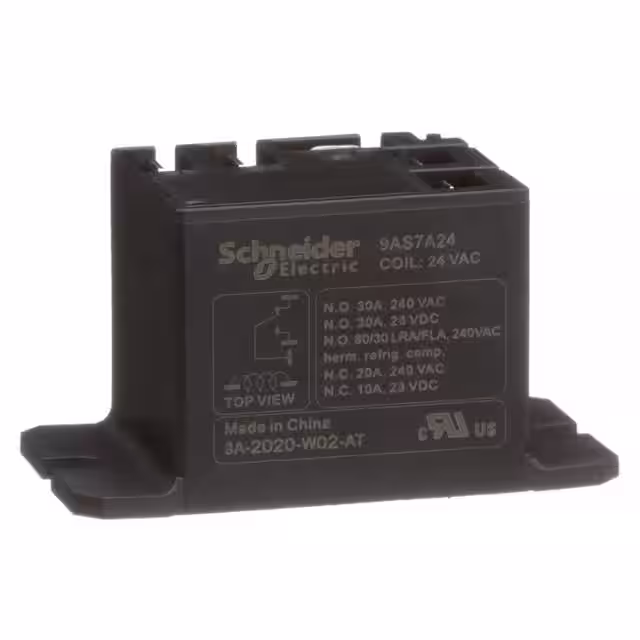

9AS7A24ELECTROMECHNICAL POWER RELAYS, S |
2,156 | 15.93 |
RFQ |
Datasheet |
Box | Harmony | Active | Chassis Mount | 24VAC | SPDT (1 Form C) | 30 A | 277VAC, 28VDC - Max | 24 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | - | 20.4 VAC | 4.8 VAC | 20 ms | 10 ms | -40°C ~ 40°C | Silver Alloy |
