| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPYS001024ALTRELAY GEN PURPOSE SPDT 10A 24V |
2,321 | 13.40 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 24VAC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 100 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 5 Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|
RPYS001230ALTRELAY GEN PURPOSE SPDT 10A 230V |
3,679 | 13.40 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 230VAC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 10 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 5 Pin | - | - | 184 VAC | 69 VAC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|
RPYS001024DLTRELAY GEN PURPOSE SPDT 10A 24V |
3,433 | 13.40 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 21.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 5 Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
RPYS002024DLTRELAY GEN PURPOSE DPDT 5A 24V |
3,467 | 14.90 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 24VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 21.8 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 6 Pin | - | - | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|
RPYS002024ALTRELAY GEN PURPOSE DPDT 5A 24V |
3,980 | 14.90 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 24VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 100 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 6 Pin | - | - | 19.2 VAC | 7.2 VAC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|
RPYS002230ALTRELAY GEN PURPOSE DPDT 5A 230V |
3,501 | 14.90 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 230VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 10 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 6 Pin | - | - | 184 VAC | 69 VAC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|

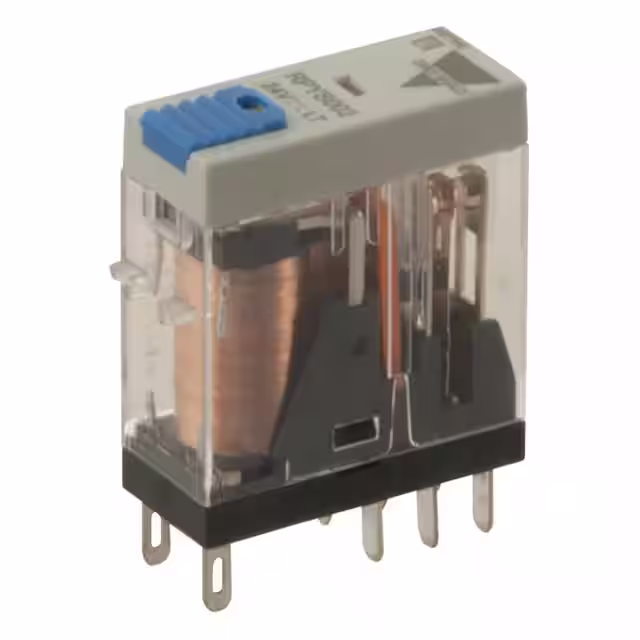

RPYS002115ALTRELAY GEN PURPOSE DPDT 5A 115V |
3,563 | 14.90 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 115VAC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 18.3 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 6 Pin | - | - | 92 VAC | 34.5 VAC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
|
RPYS002012DLTRELAY GEN PURPOSE DPDT 5A 12V |
3,313 | 14.90 |
RFQ |
Datasheet |
Box | RPYS | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC, 30VDC - Max | 44.4 mA | Non Latching | Lighted Indicator, Test Button | Plug In, 6 Pin | - | - | 9 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 55°C | Silver Alloy |
|
RSLM100060RELAY GEN PURPOSE SPST 6A 60V |
3,036 | 17.40 |
RFQ |
Box | RSLM | Not For New Designs | Through Hole | 60VDC | SPST-NO (1 Form A) | 6 A | 400VAC, 125VDC - Max | 3.6 mA | Non Latching | - | PC Pin | - | - | 45 VDC | 3 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
CF30D20012RELAY GEN PURPOSE DPST 30A 12V |
3,347 | 42.59 |
RFQ |
Datasheet |
Bulk,Box | CF30 | Not For New Designs | Chassis Mount | 12VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 139.5 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D20024RELAY GEN PURPOSE DPST 30A 24V |
3,867 | 57.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 24VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 68.6 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D20048RELAY GEN PURPOSE DPST 30A 48V |
2,054 | 57.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 48VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 34.5 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D2006RELAY GEN PURPOSE DPST 30A 6V |
2,670 | 57.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 6VDC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 272.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30A20024RELAY GEN PURPOSE DPST 30A 24V |
2,639 | 59.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 24VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 615.4 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 19.2 VAC | 4.8 VAC | 15 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) |
|
|
CF30A200120RELAY GEN PURPOSE DPST 30A 120V |
2,264 | 62.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 120VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 126.3 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 96 VAC | 24 VAC | 15 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D00212RELAY GEN PURPOSE DPDT 30A 12V |
2,107 | 62.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 12VDC | DPDT (2 Form C) | 30 A | 277VAC, 30VDC - Max | 139.5 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D00224RELAY GEN PURPOSE DPDT 30A 24V |
3,742 | 62.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 24VDC | DPDT (2 Form C) | 30 A | 277VAC, 30VDC - Max | 68.6 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30D0026RELAY GEN PURPOSE DPDT 30A 6V |
2,388 | 62.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 6VDC | DPDT (2 Form C) | 30 A | 277VAC, 30VDC - Max | 272.7 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 4.5 VDC | 0.6 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
CF30A00224RELAY GEN PURPOSE DPDT 30A 24V |
3,887 | 68.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 24VAC | DPDT (2 Form C) | 30 A | 277VAC, 30VDC - Max | 615.4 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 19.2 VAC | 4.8 VAC | 15 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) |
|
|
CF30A200277RELAY GEN PURPOSE DPST 30A 277V |
3,359 | 68.00 |
RFQ |
Datasheet |
Box | CF30 | Not For New Designs | Chassis Mount | 277VAC | DPST-NO (2 Form A) | 30 A | 277VAC, 30VDC - Max | 909.1 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 211.6 VAC | 55.4 VAC | 15 ms | 10 ms | -40°C ~ 65°C | Silver Tin Oxide (AgSnO) |
