Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KHAE-17D12-24RELAY GEN PURPOSE 4PDT 5A 24V |
160 | 49.94 |
RFQ |
Datasheet |
Bulk | KHA | Active | Through Hole | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Max | 37.5 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
R10-E1Y4-V2.5KRELAY GEN PURPOSE 4PDT 3A 48V |
144 | 50.68 |
RFQ |
Datasheet |
Bulk | R10 | Active | Socketable | 48VDC | 4PDT (4 Form C) | 3 A | 120VAC, 30VDC - Max | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|
|
R10-E1Y2-V2.5KRELAY GEN PURPOSE DPDT 3A 48V |
125 | 51.61 |
RFQ |
Datasheet |
Bulk | R10 | Active | Socketable | 48VDC | DPDT (2 Form C) | 3 A | 120VAC, 30VDC - Max | 19.2 mA | Non Latching | - | Plug In | - | - | 36 VDC | - | - | - | -55°C ~ 75°C | Silver (Ag) |
|
KUHP-11A51-24RELAY GEN PURPOSE DPDT 20A 24V |
130 | 52.23 |
RFQ |
Datasheet |
Bulk | KUHP | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 240VAC - Max | 115 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | Class B | 20.4 VAC | - | 20 ms | 20 ms | -45°C ~ 45°C | Silver Cadmium Oxide (AgCdO) |
|
KHU-17D12-24RELAY GEN PURPOSE 4PDT 5A 24V |
337 | 55.81 |
RFQ |
Datasheet |
Bulk | KHU | Active | Socketable | 24VDC | 4PDT (4 Form C) | 5 A | 240VAC - Max | 37.5 mA | Non Latching | - | Plug In | - | Class B | 18 VDC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
|
KHU-17A11-120RELAY GEN PURPOSE 4PDT 3A 120V |
225 | 57.67 |
RFQ |
Datasheet |
Tray | KHU | Active | Socketable | 120VAC | 4PDT (4 Form C) | 3 A | 240VAC - Max | 11 mA | Non Latching | - | Plug In | - | Class B | 102 VAC | - | 13 ms | 6 ms | -45°C ~ 70°C | Silver (Ag) |
|
|
KUHP-11D17-24RELAY GEN PURPOSE DPDT 20A 24V |
657 | 62.37 |
RFQ |
Datasheet |
Bulk | KUHP | Active | Through Hole | 24VDC | DPDT (2 Form C) | 20 A | 240VAC - Max | 51 mA | Non Latching | - | PC Pin | - | Class B | 18 VDC | - | 20 ms | 20 ms | -45°C ~ 70°C | Silver Cadmium Oxide (AgCdO) |
|
FCB-405-BZ4RELAY GEN PURPOSE 4PDT 5A 28V |
2,133 | 226.92 |
RFQ |
Datasheet |
Bulk | FCB, CII | Active | Through Hole | 28VDC | 4PDT (4 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 6 ms | 6 ms | -70°C ~ 125°C | - |
|

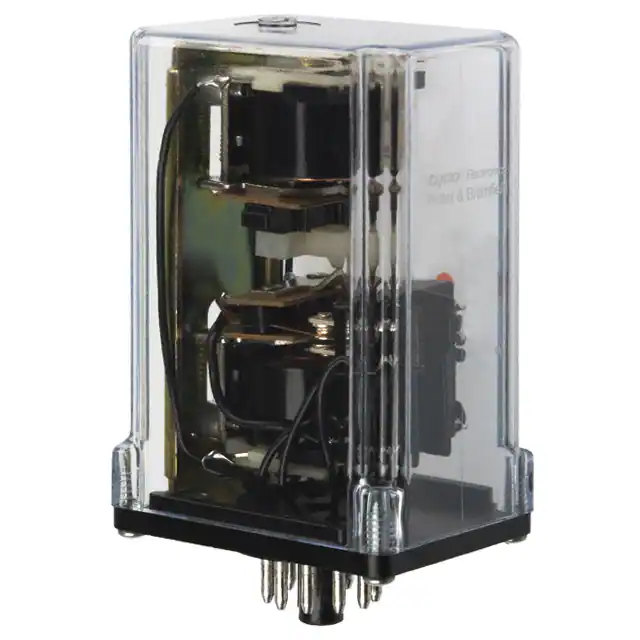

KBP-11A-120RELAY GEN PURPOSE DPDT 5A 120V |
3,664 | 239.12 |
RFQ |
Datasheet |
Bulk | KBP | Active | Socketable | 120VAC | DPDT (2 Form C) | 5 A | 120VAC - Max | 44 mA | Latching, Dual Coil | - | Plug In, 11 Pin (Octal) | - | - | 102 VAC | - | - | - | -45°C ~ 85°C | Silver (Ag) |
|
FCA-325-CX4RELAY GEN PURPOSE 3PDT 25A 28V |
2,794 | 261.43 |
RFQ |
Datasheet |
Bulk | FCA, CII | Active | Chassis Mount | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 71.8 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 2.3 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
B07D034BC2-0053RELAY GEN PURPOSE DPDT 10A 26.5V |
212 | 270.66 |
RFQ |
Datasheet |
Bulk | Military, MIL-R-5757/23, 07, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 2.3 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
CAW-1C-24BRELAY GEN PURPOSE SPDT 10A 26.5V |
3,403 | 627.46 |
RFQ |
Datasheet |
Bulk | - | Active | Chassis Mount | 26.5VDC | SPDT (1 Form C) | 10 A | 28VDC - Nom | 37.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13.5 VDC | 1.5 VDC | - | - | -65°C ~ 125°C | - |
|
FC-325-8RELAY GEN PURPOSE 3PST 25A 28V |
3,682 | 1041.85 |
RFQ |
Datasheet |
Bulk | FC-325, CII | Active | Chassis Mount | 28VDC | 3PST-NO (DM) (3 Form X) | 25 A | - | - | Non Latching | - | Screw Terminal | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 20 ms | 10 ms | -70°C ~ 125°C | - |
|
RZ01-1A4-D012RELAY GEN PURPOSE SPST 12A 12V |
2,465 | 2.18 |
RFQ |
Datasheet |
Tube | RZ, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 12 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
2-1415899-4RELAY GEN PURPOSE SPDT 16A 48V |
3,555 | 2.55 |
RFQ |
Datasheet |
Bulk | RZ, SCHRACK | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 8.4 mA | Non Latching | - | PC Pin | - | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|

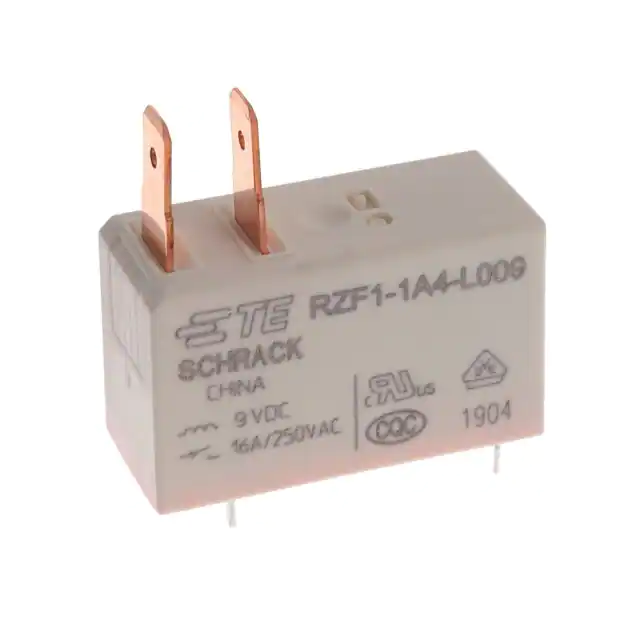

RZF1-1A4-L009RELAY GEN PURPOSE SPST 16A 9V |
393 | 2.82 |
RFQ |
Datasheet |
Tube | RZF, SCHRACK | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 58.9 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

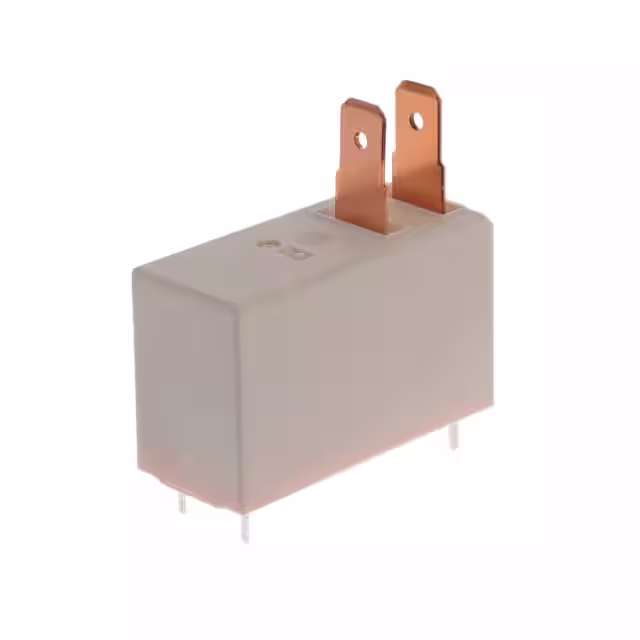

RZF1-1A4-L006RELAY GEN PURPOSE SPST 16A 6V |
387 | 2.82 |
RFQ |
Datasheet |
Tube | RZF, SCHRACK | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 90.1 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J115F21C24VDCS.9RELAY GEN PURPOSE SPDT 40A 24V |
870 | 2.88 |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|

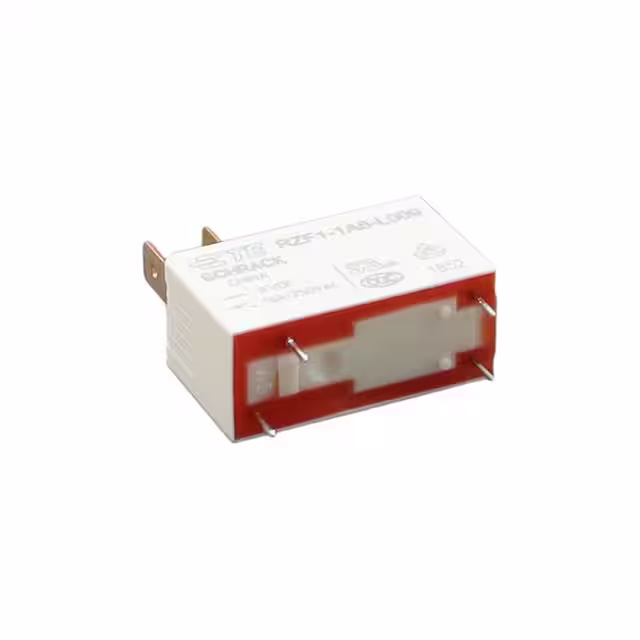

RZF1-1A6-L009RELAY GEN PURPOSE SPST 16A 9V |
399 | 2.94 |
RFQ |
Datasheet |
Tube | RZF, SCHRACK | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 58.9 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

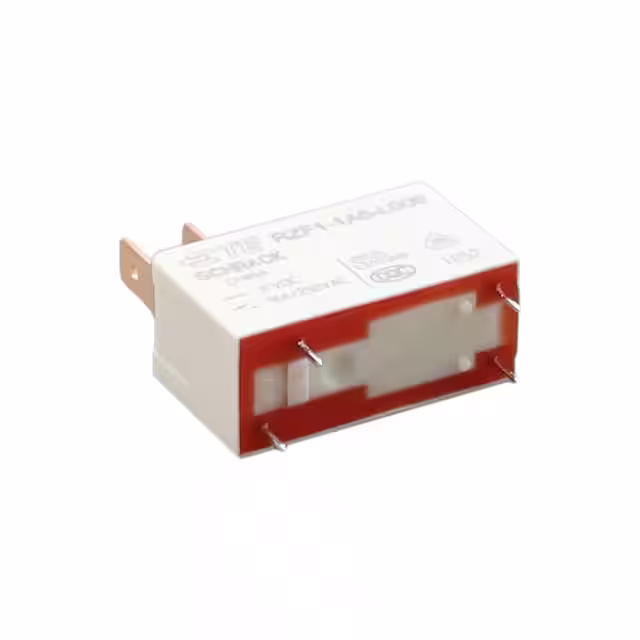

RZF1-1A6-L006RELAY GEN PURPOSE SPST 16A 6V |
396 | 2.94 |
RFQ |
Datasheet |
Tube | RZF, SCHRACK | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 90.1 mA | Non Latching | - | PC Pin, Quick Connect - 0.187 (4.7mm) | Sealed - Flux Protection | Class F | 4.2 VDC | 0.6 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
