| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

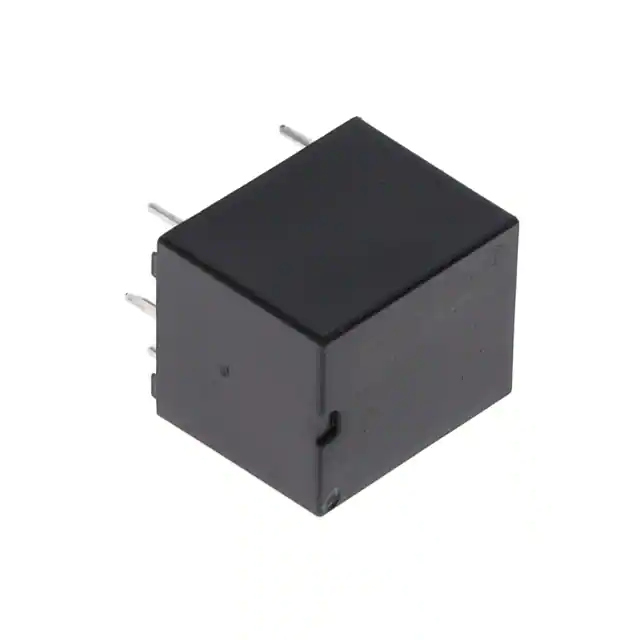

AZ943-1CH-5DERELAY GEN PURPOSE SPDT 10A 5V |
2,417 | 0.68 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) |
|
AZSR131-1AE-12DRELAY EV CHRG SOLAR SPST 35A 12V |
496 | 2.84 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 35 A | 277VAC - Max | 116.5 mA | Non Latching | - | PC Pin | - | Class F | 8.4 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
AZ943-1AH-12DERELAY GEN PURPOSE SPST 15A 12V |
3,135 | 0.63 |
RFQ |
Datasheet |
Tube | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 277VAC, 30VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) |
|
AZ7709-1AE-12DERELAY GEN PURPOSE SPST 5A 12V |
3,290 | 0.68 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
AZ7709-1AE-5DERELAY GEN PURPOSE SPST 5A 5V |
3,044 | 0.71 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
AZ7709T-1AE-5DEFRELAY GEN PURPOSE SPST 5A 5V |
3,352 | 0.73 |
RFQ |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 90.9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.25 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | |
|
|
AZ7709T-1AE-12DEFRELAY GEN PURPOSE SPST 5A 12V |
2,078 | 0.86 |
RFQ |
Box | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 0.6 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | |
|
|
AZ7709T-1AE-24DEFRELAY GEN PURPOSE SPST 5A 24V |
3,509 | 0.88 |
RFQ |
Tray | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 30VDC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 1.2 VDC | 8 ms | 4 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | |
|
|
AZ943-1CH-24DEFRELAY GEN PURPOSE SPDT 10A 24V |
3,310 | 0.91 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 15 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) |
|
AZ9403-1C-12DERELAY GEN PURPOSE SPDT 3A 12V |
2,834 | 1.24 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 400VAC, 150VDC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 0.6 VDC | 8 ms | 5 ms | -40°C ~ 110°C | Silver Tin Oxide (AgSnO) |
|
AZ2150-1A-12DEFRELAY GEN PURPOSE SPST 40A 12V |
2,109 | 1.96 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
AZ2150-1AE-5DEFRELAY GEN PURPOSE SPST 40A 5V |
2,791 | 2.04 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 185.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
AZ2150-1AE-12DEFRELAY GEN PURPOSE SPST 40A 12V |
3,629 | 2.04 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
AZ2100-1A-12DEFRELAY GEN PURPOSE SPST 40A 12V |
3,974 | 2.06 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 277VAC, 30VDC - Max | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
|
|
AZ2100-1AE-12DEFRELAY GEN PURPOSE SPST 40A 12V |
2,843 | 2.14 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 77.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
AZ2150-1AE-24DEFRELAY GEN PURPOSE SPST 40A 24V |
2,557 | 2.14 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
AZ2100-1AE-5DEFRELAY GEN PURPOSE SPST 40A 5V |
2,257 | 2.14 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 185.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
AZ2100-1AE-24DEFRELAY GEN PURPOSE SPST 40A 24V |
3,613 | 2.19 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 40 A | 300VAC, 30VDC - Max | 36.4 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 10 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
AZ2150-1CE-12DEFRELAY GEN PURPOSE SPDT 40A 12V |
2,866 | 2.65 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 12VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 77.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
|
AZ2150-1CE-24DEFRELAY GEN PURPOSE SPDT 40A 24V |
3,383 | 2.70 |
RFQ |
Datasheet |
Tray | - | Active | Through Hole | 24VDC | SPDT (1 Form C) | 40 A | 300VAC, 30VDC - Max | 36.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 12 ms | 5 ms | -55°C ~ 105°C | Silver Tin Oxide (AgSnO) |
