Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
29-311-12ARELAY GEN PURPOSE SPST 300A 28V |
2,565 | 234.87 |
RFQ |
Datasheet |
Box | 29 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 300 A | 28VDC - Nom | 400 mA | Non Latching | Diode | Screw Terminal | - | - | 18 VDC | 4 VDC | 40 ms | 20 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
FCA-325-BZ4RELAY GEN PURPOSE 3PDT 25A 28V |
491 | 261.43 |
RFQ |
Datasheet |
Bulk | FCA, CII | Active | Through Hole | 28VDC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
G9EC-1-B DC24RELAY GEN PURPOSE SPST 200A 24V |
2,412 | 269.30 |
RFQ |
Datasheet |
Bulk | G9EC-1 | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 200 A | 400VDC - Max | 469 mA | Non Latching | - | Screw Terminal | Sealed - Fully | - | 18 VDC | 1.92 VDC | 50 ms | 30 ms | -40°C ~ 50°C | - |
|
K41C334RELAY GEN PURPOSE SPDT 30A 26.5V |
229 | 384.21 |
RFQ |
Bulk | K41, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 30 A | 5000VDC - Max | - | Non Latching | - | Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
K81C335RELAY GEN PURPOSE SPDT 5A 26.5V |
340 | 407.19 |
RFQ |
Bulk | K81, KILOVAC | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|
K81C245RELAY GEN PURPOSE SPDT 5A 12V |
262 | 407.19 |
RFQ |
Bulk | K81, KILOVAC | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin, Wire Leads | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|
K81C235RELAY GEN PURPOSE SPDT 5A 12V |
169 | 407.19 |
RFQ |
Bulk | K81, KILOVAC | Active | Through Hole | 12VDC | SPDT (1 Form C) | 5 A | 10000VDC - Max | - | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|
K81C345RELAY GEN PURPOSE SPDT 10A 26.5V |
3,226 | 407.19 |
RFQ |
Bulk | K81, KILOVAC | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 10 A | 10000VDC - Max | - | Non Latching | - | PC Pin, Wire Leads | - | - | 16 VDC | 1 VDC | 10 ms | 10 ms | -55°C ~ 85°C | - | |
|
HC-3/12VDCRELAY GEN PURPOSE SPDT 18A 12V |
451 | 563.30 |
RFQ |
Bulk | HC-3, KILOVAC | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 18 A | 3500VDC - Max | - | Non Latching | - | Solder Turret | - | - | 8 VDC | 0.5 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | |
|
K40P332RELAY GEN PURPOSE SPST 35A 26.5V |
2,744 | 595.07 |
RFQ |
Datasheet |
Bulk | K40, KILOVAC | Active | Panel Mount | 26.5VDC | SPST-NO (1 Form A) | 35 A | 5000VDC - Max | - | Latching, Dual Coil | - | Wire Leads | - | - | 16 VDC | - | 1 ms | - | -55°C ~ 125°C | - |
|
HC-4RELAY GEN PURPOSE SPDT 15A 26.5V |
106 | 628.14 |
RFQ |
Bulk | HC-4, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 15 A | 8000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 6 ms | 6 ms | -55°C ~ 125°C | Tungsten (W) | |
|
KC-11RELAY GEN PURPOSE SPDT 50A 26.5V |
3,891 | 1011.52 |
RFQ |
Bulk | KC-11, KILOVAC | Active | Panel Mount | 26.5VDC | SPDT (1 Form C) | 50 A | 15000VDC - Max | - | Non Latching | - | Solder Turret | - | - | 16 VDC | 1 VDC | 15 ms | 9 ms | -55°C ~ 125°C | - | |
|
AZ943-1CH-5DERELAY GEN PURPOSE SPDT 10A 5V |
2,417 | 0.68 |
RFQ |
Datasheet |
Box | - | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 277VAC, 30VDC - Max | 71.4 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.8 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Tin Oxide (AgSnO) |
|
J1021CS35VDC.20RELAY GEN PURPOSE SPDT 3A 5V |
2,293 | 0.96 |
RFQ |
Datasheet |
Tube | J102 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J1021CS312VDC.20RELAY GEN PURPOSE SPDT 3A 12V |
2,214 | 0.96 |
RFQ |
Datasheet |
Tube | J102 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 3 A | 300VAC, 150VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
J107F1CS1212VDC.80RELAY GEN PURPOSE SPDT 12A 12V |
2,192 | 0.98 |
RFQ |
Datasheet |
Tube | J107F | Active | Through Hole | 12VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
|
J1001AS5VDC.20RELAY GEN PURPOSE SPST 10A 5V |
2,317 | 1.06 |
RFQ |
Datasheet |
Tray | J100 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 277VAC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
J1021CS55VDC.45RELAY GEN PURPOSE SPDT 5A 5V |
3,011 | 1.06 |
RFQ |
Datasheet |
Tube | J102 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 5 A | 300VAC, 150VDC - Max | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
J1021AS55VDC.45RELAY GEN PURPOSE SPST 5A 5V |
2,102 | 1.06 |
RFQ |
Datasheet |
Tube | J102 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 5 A | 300VAC, 150VDC - Max | 89.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.75 VDC | 0.5 VDC | 5 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|

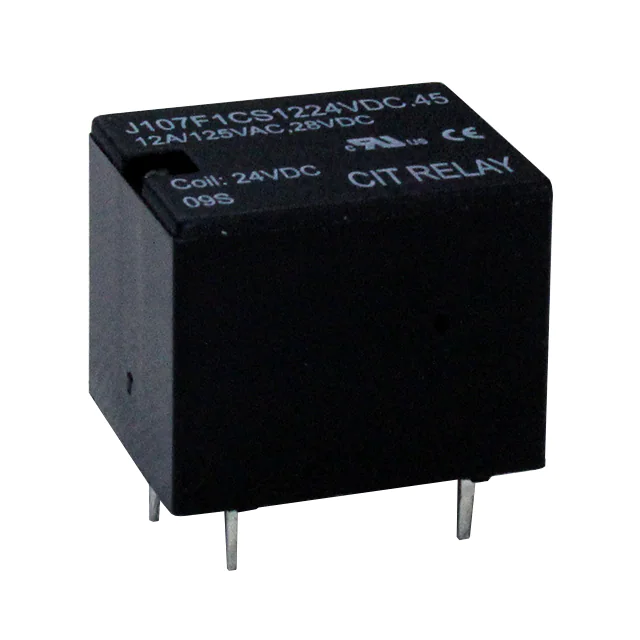

J107F1CS1224VDC.45RELAY GEN PURPOSE SPDT 12A 24V |
3,478 | 1.08 |
RFQ |
Datasheet |
Tube | J107F | Active | Through Hole | 24VDC | SPDT (1 Form C) | 12 A | 380VAC, 110VDC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 10 ms | 5 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
