| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

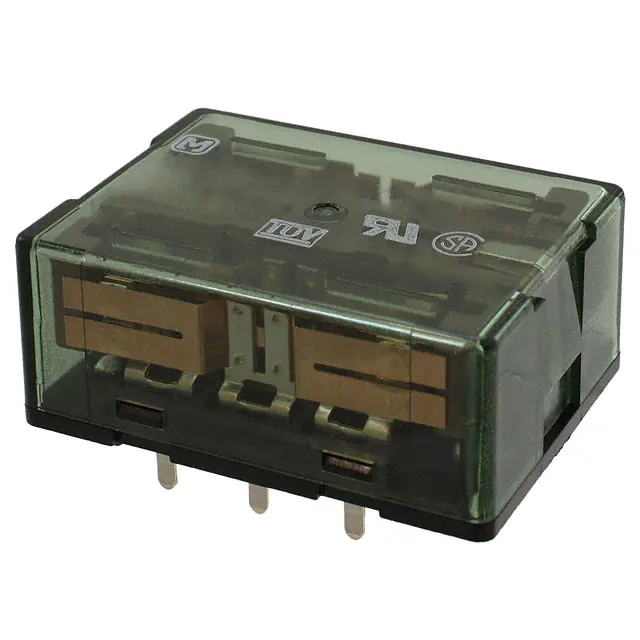

SP4-L2-DC12VRELAY GEN PURPOSE 4PDT 10A 12V |
195 | 35.02 |
RFQ |
Datasheet |
Tube | SP | Active | Socketable | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 25 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 8.4 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
SP4-L2-DC24VRELAY GEN PURPOSE 4PDT 10A 24V |
194 | 37.77 |
RFQ |
Datasheet |
Tray | SP | Active | Socketable | 24VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 12.5 mA | Latching, Dual Coil | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|

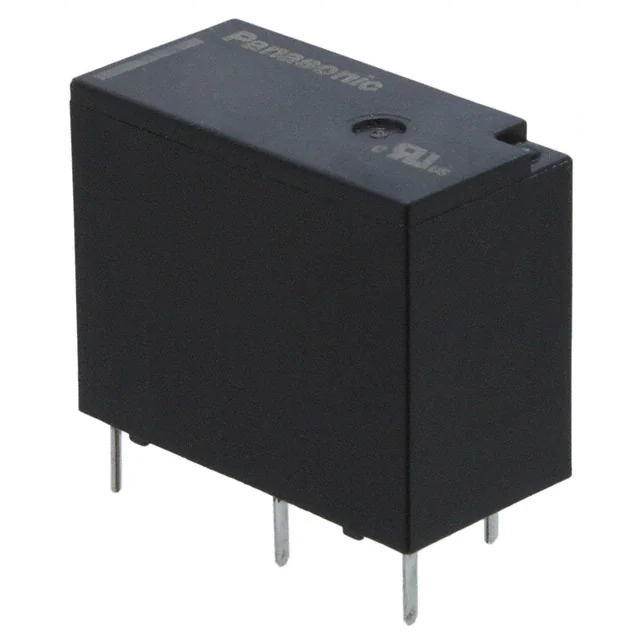

ALQ1F09RELAY GEN PURPOSE SPDT 10A 9V |
2,381 | 1.70 |
RFQ |
Datasheet |
Box | ALQ | Active | Through Hole | 9VDC | SPDT (1 Form C) | 10 A | 250VAC - Max | 44.4 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALZ12F48RELAY GEN PURPOSE SPDT 16A 48V |
3,226 | 3.88 |
RFQ |
Datasheet |
Tube | ALZ | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) |
|
ADW1124HLWRELAY GEN PURPOSE SPST 16A 24V |
303 | 5.62 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 8.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1106HLWRELAY GEN PURPOSE SPST 16A 6V |
101 | 5.62 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Flux Protection | Class F | 4.8 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1124HTWRELAY GEN PURPOSE SPST 16A 24V |
116 | 7.83 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 8.3 mA | Latching, Single Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 19.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1205HTWRELAY GEN PURPOSE SPST 16A 5V |
389 | 8.92 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 80 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1209HTWRELAY GEN PURPOSE SPST 16A 9V |
298 | 9.10 |
RFQ |
Datasheet |
Tray | DW-H | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 44.4 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 7.2 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ADW1205HTRELAY GEN PURPOSE SPST 16A 5V |
189 | 9.15 |
RFQ |
Datasheet |
Tube | DW-H | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 80 mA | Latching, Dual Coil | IEC Compliant | PC Pin | Sealed - Flux Protection | Class F | 4 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
DSP2A-L2-DC9VRELAY GEN PURPOSE DPST 5A 9V |
310 | 10.16 |
RFQ |
Datasheet |
Bulk | DSP | Active | Through Hole | 9VDC | DPST-NO (2 Form A) | 5 A | 250VAC, 30VDC - Max | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Fully | - | 7.2 VDC | - | 10 ms | 5 ms | -40°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
ADW1212WRELAY GEN PURPOSE SPST 8A 12V |
103 | 10.24 |
RFQ |
Datasheet |
Tray | DW | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 8 A | 250VAC - Max | 33.3 mA | Latching, Dual Coil | - | PC Pin | Sealed - Flux Protection | Class F | 9.6 VDC | - | 15 ms | 15 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
S3EB-5VRELAY GEN PURPOSE 4PST 4A 5V |
498 | 16.48 |
RFQ |
Datasheet |
Tube | S | Active | Through Hole | 5VDC | 4PST-3NO/1NC (3 Form A, 1 Form B) | 4 A | 250VAC, 48VDC - Max | 38.5 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 65°C | Silver Alloy, Cadmium Free |
|
NC2EBD-DC5VRELAY GEN PURPOSE DPDT 5A 5V |
3,383 | 19.66 |
RFQ |
Datasheet |
Tube | NC | Active | Socketable | 5VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 72 mA | Non Latching | - | Plug In | Sealed - Fully | - | 4 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
NC2D-JP-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
979 | 19.66 |
RFQ |
Datasheet |
Tube | NC | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 30 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
|
NC2D-DC12VRELAY GEN PURPOSE DPDT 5A 12V |
938 | 19.66 |
RFQ |
Datasheet |
Tray | NC | Active | Socketable | 12VDC | DPDT (2 Form C) | 5 A | 250VAC - Max | 30 mA | Non Latching | - | Plug In | - | - | 9.6 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|
HE1AN-P-DC6V-Y5RELAY GEN PURPOSE SPST 48A 6V |
352 | 24.62 |
RFQ |
Datasheet |
Bulk | HE-PV | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 48 A | 250VAC - Max | 320 mA | Non Latching | - | PC Pin | - | - | 4.2 VDC | 0.6 VDC | 30 ms | 10 ms | -50°C ~ 55°C | Silver Nickel (AgNi) |
|
SP2-PL2-DC24VRELAY GEN PURPOSE DPDT 15A 24V |
190 | 26.81 |
RFQ |
Datasheet |
Tube | SP | Active | Through Hole | 24VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 12.5 mA | Latching, Dual Coil | - | PC Pin | - | - | 16.8 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
|
SP2-P-DC48VRELAY GEN PURPOSE DPDT 15A 48V |
165 | 26.81 |
RFQ |
Datasheet |
Tube | SP | Active | Through Hole | 48VDC | DPDT (2 Form C) | 15 A | 250VAC, 30VDC - Max | 6.2 mA | Non Latching | - | PC Pin | - | - | 33.6 VDC | 4.8 VDC | 30 ms | 20 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
|
SP4-PL2-DC12VRELAY GEN PURPOSE 4PDT 10A 12V |
190 | 33.57 |
RFQ |
Datasheet |
Tube | SP | Active | Through Hole | 12VDC | 4PDT (4 Form C) | 10 A | 250VAC, 30VDC - Max | 25 mA | Latching, Dual Coil | - | PC Pin | - | - | 8.4 VDC | - | 30 ms | 30 ms | -50°C ~ 60°C | Silver Tin Oxide (AgSnO) |
