| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JS1AF-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
2,549 | 1.75 |
RFQ |
Datasheet |
Bulk | JS | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 100VDC - Max | 72 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 3.5 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ALE75B09RELAY GEN PURPOSE SPST 16A 9V |
3,686 | 1.92 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ALDP118RELAY GEN PURPOSE SPST 5A 18V |
3,044 | 1.99 |
RFQ |
Datasheet |
Tube | ALDP | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class E | 13.5 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALE75B06RELAY GEN PURPOSE SPST 16A 6V |
3,786 | 2.02 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 4.5 VDC | 0.3 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE75B12RELAY GEN PURPOSE SPST 16A 12V |
3,978 | 2.02 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE75B18RELAY GEN PURPOSE SPST 16A 18V |
2,532 | 2.02 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class B | 13.5 VDC | 0.9 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALDP1F18RELAY GEN PURPOSE SPST 5A 18V |
2,727 | 2.03 |
RFQ |
Datasheet |
Tube | ALDP | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
|
ALDP1F24RELAY GEN PURPOSE SPST 5A 24V |
2,037 | 2.03 |
RFQ |
Datasheet |
Tube | ALDP | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 1.2 VDC | 10 ms | 10 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
|
ALA2F05RELAY GEN PURPOSE DPST 3A 5V |
2,817 | 2.05 |
RFQ |
Datasheet |
Bulk | ALA | Obsolete | Through Hole | 5VDC | DPST-NO (2 Form A) | 3 A | 125VAC - Max | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.75 VDC | 0.25 VDC | 15 ms | 15 ms | -40°C ~ 70°C | Silver Nickel (AgNi) |
|

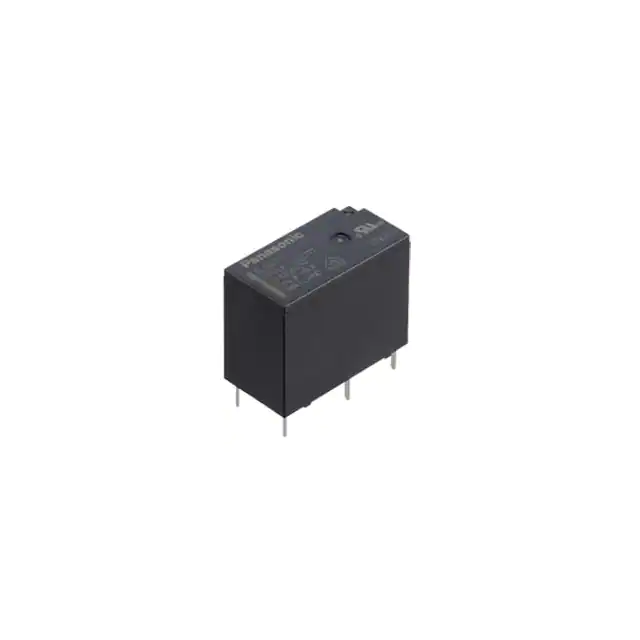

ALQ312SRELAY GEN PURPOSE SPST 10A 12V |
3,919 | 2.05 |
RFQ |
Tube | ALQ | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
ALQ305SRELAY GEN PURPOSE SPST 10A 5V |
3,577 | 2.05 |
RFQ |
Tube | ALQ | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 40 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 3.75 VDC | 0.25 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
ALQ309SRELAY GEN PURPOSE SPST 10A 9V |
2,130 | 2.05 |
RFQ |
Tube | ALQ | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
ALQ306SRELAY GEN PURPOSE SPST 10A 6V |
3,917 | 2.05 |
RFQ |
Tube | ALQ | Active | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 4.5 VDC | 0.3 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
ALE75F06RELAY GEN PURPOSE SPST 16A 6V |
2,223 | 2.08 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 6VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 4.5 VDC | 0.3 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE75F09RELAY GEN PURPOSE SPST 16A 9V |
3,532 | 2.08 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class F | 6.75 VDC | 0.45 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE75F12RELAY GEN PURPOSE SPST 16A 12V |
2,988 | 2.08 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class F | 9 VDC | 0.6 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALE75F18RELAY GEN PURPOSE SPST 16A 18V |
2,347 | 2.08 |
RFQ |
Datasheet |
Bulk | ALE | Not For New Designs | Through Hole | 18VDC | SPST-NO (1 Form A) | 16 A | 277VAC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class F | 13.5 VDC | 0.9 VDC | 20 ms | 25 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
ALZ11B48RELAY GEN PURPOSE SPDT 16A 48V |
2,093 | 2.10 |
RFQ |
Datasheet |
Tube | ALZ | Active | Through Hole | 48VDC | SPDT (1 Form C) | 16 A | 440VAC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class B | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
|
ALQ3F09SRELAY GEN PURPOSE SPST 10A 9V |
2,741 | 2.15 |
RFQ |
Tube | ALQ | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 30VDC - Max | 22.2 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.45 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
|
ALQ112SRELAY GEN PURPOSE SPDT 10A 12V |
3,995 | 2.15 |
RFQ |
Tube | ALQ | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 250VAC, 30VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class B | 9 VDC | 0.6 VDC | 20 ms | 20 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
