| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JM1AN-P-DC9V-FRELAY GEN PURPOSE SPST 20A 9V |
3,850 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-TMP-DC6V-FRELAY GEN PURPOSE SPST 20A 6V |
3,398 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 150 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-TMP-DC9V-FRELAY GEN PURPOSE SPST 20A 9V |
3,441 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 100 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTM-DC48V-FRELAY GEN PURPOSE SPST 20A 48V |
3,009 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 18.8 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTM-DC6V-FRELAY GEN PURPOSE SPST 20A 6V |
2,725 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 150 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTM-DC9V-FRELAY GEN PURPOSE SPST 20A 9V |
2,594 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 100 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTMP-DC24V-FRELAY GEN PURPOSE SPST 20A 24V |
2,797 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 37.5 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTMP-DC48V-FRELAY GEN PURPOSE SPST 20A 48V |
2,203 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 48VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 18.8 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 33.6 VDC | 4.8 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTMP-DC5V-FRELAY GEN PURPOSE SPST 20A 5V |
2,623 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 5VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 180 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTMP-DC6V-FRELAY GEN PURPOSE SPST 20A 6V |
2,507 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 6VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 150 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 4.2 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|
|
JM1AN-ZTMP-DC9V-FRELAY GEN PURPOSE SPST 20A 9V |
2,668 | 0.00 |
RFQ |
Datasheet |
Box | JM | Obsolete | Chassis Mount | 9VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 100 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | - | 6.3 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 60°C | Silver Alloy |
|

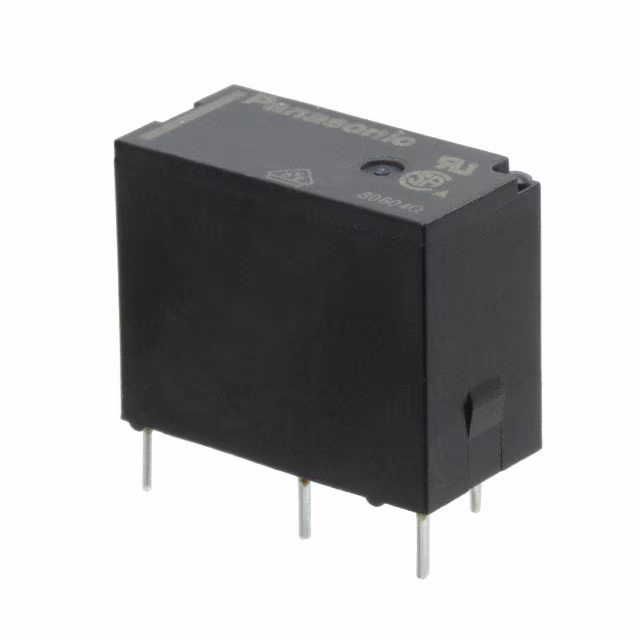

JQ1-48V-FRELAY GEN PURPOSE SPDT 5A 48V |
3,816 | 0.00 |
RFQ |
Datasheet |
Bulk | JQ | Obsolete | Through Hole | 48VDC | SPDT (1 Form C) | 5 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class E | 36 VDC | 2.4 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) |
|
JQ1A-B-12V-FRELAY GEN PURPOSE SPST 5A 12V |
3,078 | 0.00 |
RFQ |
Datasheet |
Bulk | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
|
JQ1AP-B-18V-FRELAY GEN PURPOSE SPST 10A 18V |
3,942 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 18VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 11.1 mA | Non Latching | - | PC Pin | - | Class B | 14.4 VDC | 0.9 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1AP-B-24V-FRELAY GEN PURPOSE SPST 10A 24V |
2,475 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class B | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1AP-B-5V-FRELAY GEN PURPOSE SPST 10A 5V |
2,549 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 40 mA | Non Latching | - | PC Pin | - | Class B | 4 VDC | 0.25 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1AP-B-6V-FRELAY GEN PURPOSE SPST 10A 6V |
3,319 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 6VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class B | 4.8 VDC | 0.3 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1AP-B-9V-FRELAY GEN PURPOSE SPST 10A 9V |
2,951 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 22.2 mA | Non Latching | - | PC Pin | - | Class B | 7.2 VDC | 0.45 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1AP-F-24V-FRELAY GEN PURPOSE SPST 10A 24V |
2,796 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 8.3 mA | Non Latching | - | PC Pin | - | Class F | 19.2 VDC | 1.2 VDC | 20 ms | 10 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | |
|
|
JQ1APF-B-12V-FRELAY GEN PURPOSE SPST 10A 12V |
3,126 | 0.00 |
RFQ |
Box | JQ | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 110VDC - Max | 16.7 mA | Non Latching | - | PC Pin | - | Class B | 9.6 VDC | 0.6 VDC | 20 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) |
