| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JC1A1BF-S-DC12VRELAY GEN PURPOSE DPST 5A 12V |
2,626 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 83.3 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BF-TM-DC12VRELAY GEN PURPOSE DPST 5A 12V |
3,922 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 83.3 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BF-TM-DC24VRELAY GEN PURPOSE DPST 5A 24V |
3,734 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 41.6 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-DC12VRELAY GEN PURPOSE DPST 5A 12V |
2,902 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 83.3 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-DC24VRELAY GEN PURPOSE DPST 5A 24V |
3,309 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 41.6 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-DC6VRELAY GEN PURPOSE DPST 5A 6V |
3,839 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 6VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 167 mA | Non Latching | - | PC Pin | - | - | 4.8 VDC | 0.6 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-S-DC24VRELAY GEN PURPOSE DPST 5A 24V |
3,268 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 24VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 41.6 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-TM-B-DC48VRELAY GEN PURPOSE DPST 5A 48V |
2,825 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 48VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 20.8 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1A1BJ-TM-DC12VRELAY GEN PURPOSE DPST 5A 12V |
2,318 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Chassis Mount | 12VDC | DPST-NO/NC (1 Form A, 1 Form B) | 5 A | 250VAC - Max | 83.3 mA | Non Latching | - | Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
JC1AF-B-DC12VRELAY GEN PURPOSE SPST 15A 12V |
3,115 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 75 mA | Non Latching | - | PC Pin | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-B-DC24VRELAY GEN PURPOSE SPST 15A 24V |
2,622 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 37.5 mA | Non Latching | - | PC Pin | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-B-DC9VRELAY GEN PURPOSE SPST 15A 9V |
3,767 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 100 mA | Non Latching | - | PC Pin | - | - | 7.2 VDC | 0.9 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-DC48VRELAY GEN PURPOSE SPST 15A 48V |
2,967 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 48VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 18.8 mA | Non Latching | - | PC Pin | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|

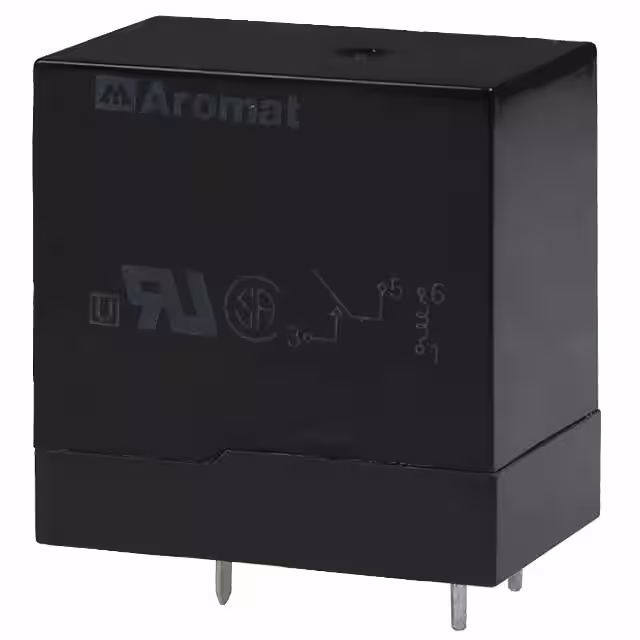

JC1AF-DC5VRELAY GEN PURPOSE SPST 15A 5V |
3,533 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 180 mA | Non Latching | - | PC Pin | - | - | 4 VDC | 0.5 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-DC9VRELAY GEN PURPOSE SPST 15A 9V |
2,764 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Through Hole | 9VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 100 mA | Non Latching | - | PC Pin | - | - | 7.2 VDC | 0.9 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-S-DC12VRELAY GEN PURPOSE SPST 15A 12V |
3,220 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 75 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 9.6 VDC | 1.2 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-S-DC18VRELAY GEN PURPOSE SPST 15A 18V |
3,811 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 18VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 50 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 14.4 VDC | 1.8 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-S-DC24VRELAY GEN PURPOSE SPST 15A 24V |
3,395 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 24VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 37.5 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 19.2 VDC | 2.4 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-S-DC48VRELAY GEN PURPOSE SPST 15A 48V |
3,540 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 48VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 18.8 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 38.4 VDC | 4.8 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
|
|
JC1AF-S-DC6VRELAY GEN PURPOSE SPST 15A 6V |
3,515 | 0.00 |
RFQ |
Datasheet |
Bulk | JC | Obsolete | Socketable | 6VDC | SPST-NO (1 Form A) | 15 A | 250VAC - Max | 150 mA | Non Latching | - | Plug In, Quick Connect - 0.187 (4.7mm) | - | - | 4.8 VDC | 0.6 VDC | 15 ms | 2 ms | -50°C ~ 60°C | Silver Alloy |
