| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1618013-3PD10B535=RELAY, VACUUM, SPST-N |
3,523 | 598.32 |
RFQ |
Bulk | PD | Active | Chassis Mount | 125VDC | SPST-NC (1 Form B) | 25 A | 320VDC - Max | 26.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
FCAC-150-KU4RELAY SPST 50A 28V |
2,866 | 608.38 |
RFQ |
Bulk | FCAC-150, CII | Active | - | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | - | Non Latching | - | - | - | - | 18 VDC | 7 VDC | - | - | -70°C ~ 125°C | - | |
|
|
K43A534K43A534=RELAY, VACUUM, SPST-NO |
2,270 | 608.42 |
RFQ |
Bulk | K43A | Active | Panel Mount | 115VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Max | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
|
3-1618007-4AP5A334=RELAY, VACUUM, SPST-NO |
2,751 | 608.94 |
RFQ |
Bulk | AP5 | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 5 A | 270VDC - Nom | 96.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | |
|
|
4-1618013-6RELAY SPDT 15A 12V |
2,947 | 609.04 |
RFQ |
Bulk | PD5, KILOVAC | Active | Panel Mount | 12VDC | SPDT (1 Form C) | 15 A | - | - | Non Latching | - | PC Pin | - | - | 8 VDC | 0.5 VDC | 10 ms | 10 ms | -40°C ~ 85°C | - | |
|
|
3-1618007-3AP5A332=RELAY, VACUUM, SPST-NO |
2,482 | 610.49 |
RFQ |
Bulk | AP5 | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 5 A | 270VDC - Nom | 96.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | |
|
|
K43A934K43A934=RELAY, VACUUM, SPST-NO |
3,569 | 617.86 |
RFQ |
Bulk | K43A | Active | Panel Mount | 115VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Max | 24.5 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
|
FCAC-150-CU4FCAC-150-CU4=50 AMP MID-RANGE |
2,399 | 618.13 |
RFQ |
Bulk | FCAC-15 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | 96.6 mA | Non Latching | Diode | Solder Hook | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | - | - | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
FCAC-150NC-KU4FCAC-150NC-KU4=50 AMP NC W/AUX R |
3,287 | 618.93 |
RFQ |
Bulk | FCAC-15 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | 96.6 mA | Non Latching | Diode | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | - | - | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
4-1618388-4HC-4/S8=RELAY, VACUUM, SPDT |
3,543 | 781.16 |
RFQ |
Bulk,Bulk | HC | Active | Panel Mount | - | SPDT (1 Form C) | 15 A | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | |
|
|
4-1618007-3AP5A834=RELAY, VACUUM, SPST-NO |
3,237 | 622.71 |
RFQ |
Bulk | AP5 | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 5 A | 270VDC - Nom | 96.6 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | |
|
|
AP5A832RELAY GEN PURPOSE SPST 5A 28V |
2,325 | 623.97 |
RFQ |
Datasheet |
Bulk | AP5, KILOVAC | Active | Panel Mount | 28VDC | SPST-NO (1 Form A) | 5 A | - | - | Non Latching | - | Solder Turret | - | - | 20 VDC | 12 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - |
|
|
1618006-9AP10A334=RELAY, VACUUM, SPST-N |
3,914 | 628.14 |
RFQ |
Bulk | AP | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 10 A | 270VDC - Nom | 96.6 mA | Non Latching | - | PC Pin | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | |
|
|
FCAC-150-KR4AFCAC-150-KR4A=RELAY |
2,593 | 629.75 |
RFQ |
Bulk | FCAC-15 | Active | Chassis Mount | 28VDC | SPST-NO (DM) (1 Form X) | 50 A | - | 96.6 mA | Non Latching | Diode | Stud | Sealed - Hermetically | - | 18 VDC | 1.5 VDC | - | - | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
7-1617789-0LS-0403=LATCHING HALF SIZE RELAY |
3,224 | 629.99 |
RFQ |
Box,Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
K43A532K43A532=RELAY, VACUUM, SPST-NO |
2,340 | 631.05 |
RFQ |
Bulk | K43A | Active | Chassis Mount | 115VDC | SPST-NO (1 Form A) | 25 A | 10000VDC - Max | 24.5 mA | Non Latching | - | Wire Leads | Sealed - Vacuum | - | 80 VDC | 5 VDC | 10 ms | 10 ms | -55°C ~ 125°C | - | |
|
|
1618222-7AP10A832=RELAY, VACUUM, SPST-N |
3,130 | 633.29 |
RFQ |
Bulk | AP | Active | Chassis Mount | 28VDC | SPST-NO (1 Form A) | 10 A | 270VDC - Nom | 96.6 mA | Non Latching | - | Solder Turret | Sealed - Vacuum | - | 20 VDC | 0.7 VDC | 7 ms | 10 ms | -55°C ~ 85°C | - | |
|

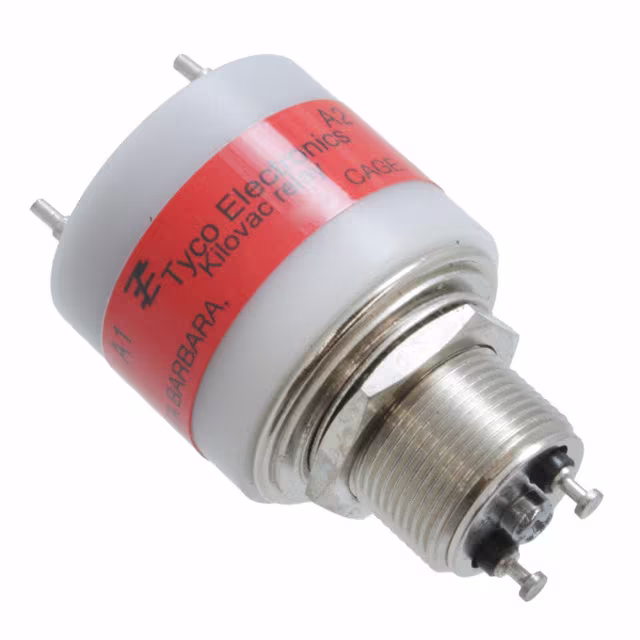

5-1618274-3RELAY |
3,981 | 718.58 |
RFQ |
Bulk,Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
3-1618398-9HC-2/S6= RELAY, VACUUM, SPDT |
3,561 | 641.66 |
RFQ |
Bulk | HC | Active | Panel Mount | - | SPDT (1 Form C) | 25 A | - | - | Non Latching | - | Solder Turret | Sealed - Vacuum | - | - | - | 6 ms | 6 ms | -55°C ~ 125°C | - | |
|
|
HC-1/115VDCRELAY SPDT 25A 115V |
2,415 | 641.76 |
RFQ |
Bulk | HC, KILOVAC | Active | Panel Mount | 115VDC | SPDT (1 Form C) | 25 A | - | - | Non Latching | - | Solder Turret | - | - | 80 VDC | 50 VDC | 6 ms | 6 ms | -55°C ~ 125°C | - |
