| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCA-325-CV9RELAY GEN PURPOSE 3PDT 25A 115V |
3,714 | 285.39 |
RFQ |
Datasheet |
Bulk | FCA-325 | Active | Chassis Mount | 115VAC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 30 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 95 VAC | 5 VAC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
|
FCA-325-CX9RELAY GEN PURPOSE 3PDT 25A 115V |
3,830 | 285.39 |
RFQ |
Datasheet |
Bulk | FCA-325 | Active | Chassis Mount | 115VAC | 3PDT (3 Form C) | 25 A | 115VAC, 28VDC - Max | 30 mA | Non Latching | - | Solder Hook | - | - | 95 VAC | 5 VAC | 15 ms | 15 ms | -70°C ~ 125°C | Silver Cadmium Oxide (AgCdO), Gold (Au) |
|
|
1-1617005-3B07Z999BZ1-0249 = RELAY. |
3,096 | 359.03 |
RFQ |
Bulk,Bulk | B07 | Active | Through Hole | 18VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 105.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.7 VDC | 1.15 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
3-1617002-6B07B032AC1-0329 = RELAY. |
2,004 | 287.79 |
RFQ |
Bulk | B07 | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 14.4 VDC | 1.8 VDC | 10 ms | 10 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
|
|
6-1617780-7FW5A11116S03=FULL SIZE 5 AMP REL |
3,638 | 383.34 |
RFQ |
Bulk,Bulk | FW, CII | Active | Chassis Mount | - | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | - | Non Latching | - | Solder Hook | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1617002-6RELAY GEN PURPOSE DPDT 10A 12V |
2,377 | 384.03 |
RFQ |
Datasheet |
Bulk,Bulk | 07, CII | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 10 A | 28VDC - Max | 160 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 6.5 VDC | 0.9 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
|
|
1617002-9B07A235BC1 = B07 10 AMP FULL S |
2,532 | 289.64 |
RFQ |
Bulk | B07 | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
1617019-8FW1063S01 = SUPERCEDES 3SAF134 |
2,648 | 291.81 |
RFQ |
Bulk | FW, CII | Active | Through Hole | - | DPDT (2 Form C) | 3 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
6-1617529-9FW1066S01=SUPERCEDES 3SAF1675A |
3,643 | 291.81 |
RFQ |
Bulk | FW, CII | Active | Through Hole | - | DPDT (2 Form C) | 3 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
1617023-6FW5A1367S01 = 2020 FW5A RELAY |
2,273 | 294.18 |
RFQ |
Bulk | FW, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 5 A | 115VAC, 28VDC - Max | 85.7 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 6.3 VDC | 0.75 VDC | 5 ms | 5 ms | -65°C ~ 125°C | Silver (Ag), Gold (Au) | |
|
|
2-1617560-5B07B131BC1=RELAY |
3,350 | 294.96 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
1617778-9B07B935BZ1-1043=10 AMP FULL SIZE |
3,451 | 295.99 |
RFQ |
Bulk | B07 | Active | Through Hole | 18VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 105.9 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.7 VDC | 1.15 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
4-1617003-3RELAY GEN PURPOSE 10A 26.5V |
3,203 | 298.35 |
RFQ |
Bulk | Military, MS27247, 07, CII | Active | Chassis Mount | 26.5VDC | - | 10 A | - | - | Non Latching | - | PC Pin | - | - | 13 VDC | 2 VDC | 13 ms | 5 ms | -65°C ~ 125°C | - | |
|
|
B07D932BE2-0352B07D932BE2-0352 = M5757/23-036 |
3,665 | 300.86 |
RFQ |
Bulk | B07 | Active | Chassis Mount | 120VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 15.8 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 66 VDC | 9 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
B07D932BZ2-0354B07D932BZ2-0354=M5757/23-038 |
2,713 | 300.86 |
RFQ |
Bulk | B07 | Active | Chassis Mount | 18VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 105.9 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 9.7 VDC | 1.15 VDC | 15 ms | 15 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
B07D631BC2RELAY GEN PURPOSE DPDT 26.5V |
2,569 | 300.86 |
RFQ |
Bulk | Military, MS27247, 07, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | - | - | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | - | - | - | - | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|

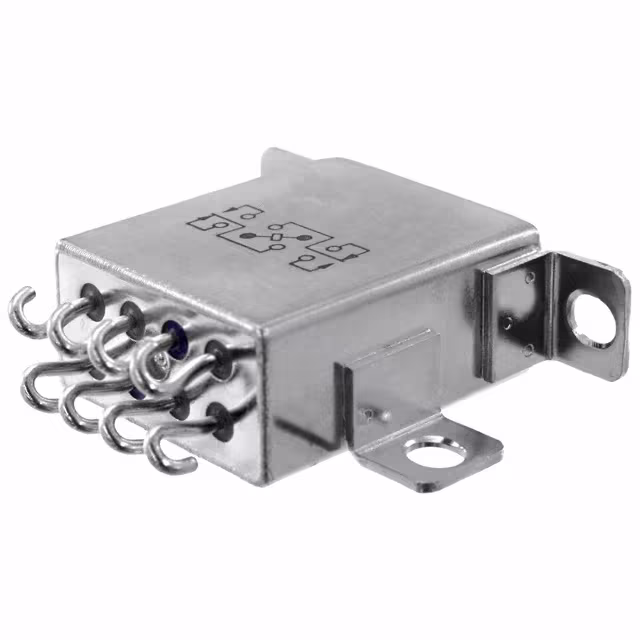

3-1617004-3RELAY GEN PURPOSE DPDT 10A 26.5V |
471 | 379.19 |
RFQ |
Bulk,Bulk | 07, CII | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 28VDC - Max | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|

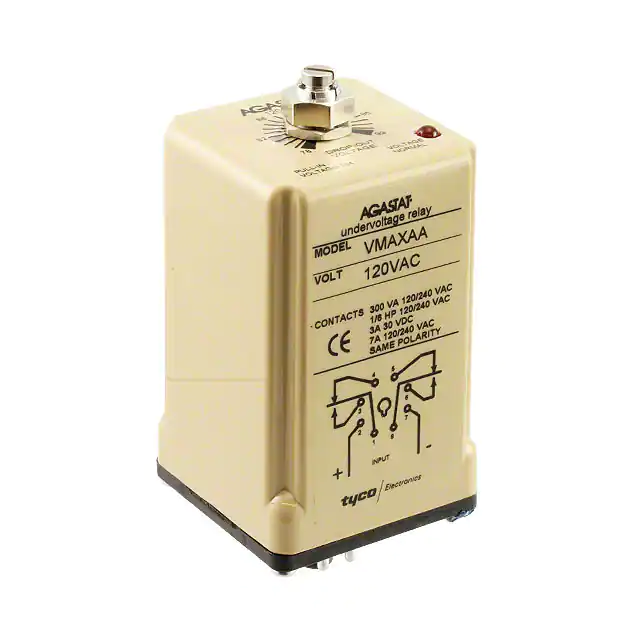

VMAXAARELAY GEN PURPOSE DPDT 7A 120V |
2,709 | 303.58 |
RFQ |
Bulk | VMA, AGASTAT | Active | Socketable | 120VAC | DPDT (2 Form C) | 7 A | 250VAC - Nom | - | Non Latching | Lighted Indicator | Plug In, 8 Pin (Octal) | - | - | 104 VAC | 78 VAC | - | - | -10°C ~ 55°C | - | |
|
|
1617005-1B07D935BE1-0270 = RELAY. |
3,753 | 303.81 |
RFQ |
Bulk | B07 | Active | Through Hole | 120VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 15.8 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 66 VDC | 9 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) | |
|
|
B07B332BC1B07B332BC1 = B07 10 AMP FULL S |
3,611 | 305.40 |
RFQ |
Bulk | B07 | Active | Chassis Mount | 26.5VDC | DPDT (2 Form C) | 10 A | 115VAC, 28VDC - Max | 88.3 mA | Non Latching | - | Solder Hook | Sealed - Hermetically | - | 13 VDC | 1.8 VDC | 10 ms | 10 ms | -65°C ~ 125°C | Silver Cadmium Oxide (AgCdO) |
