Power Relays, Over 2 Amps(23635)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G2RL-1-E-CF DC12RELAY GEN PURPOSE SPDT 16A 12V |
3,161 | 3.84 |
|
Tube | G2RL | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|
G5PZ-1A-E DC24RELAY GEN PURPOSE SPST 20A 24V |
3,183 | 4.11 |
|
Tray | G5PZ | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 20 A | 250VAC - Max | 22.1 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 18 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy, Cadmium Free | |
|
G2RL-1A-E-CF-DC9RELAY GEN PURPOSE SPST 16A 9V |
197 | 4.18 |
|
Tube,Box | G2RL | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 6.3 VDC | 0.9 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|
G2RL-1A4-E DC5RELAY GEN PURPOSE SPST 16A 5V |
3,602 | 4.20 |
|
- | Tube | G2RL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
G2RL-2 DC12RELAY GEN PURPOSE DPDT 8A 12V |
3,796 | 4.28 |
|
- | Tube | G2RL | Active | Through Hole | 12VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
|
G2RL-1-E-CF DC24RELAY GEN PURPOSE SPDT 16A 24V |
3,710 | 4.52 |
|
- | Tube | G2RL | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
G6RL-1 DC5RELAY GENERAL PURPOSE SPDT 8A 5V |
2,187 | 5.00 |
|
Tray | G6RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
|
G2RL-1A4-E-CF DC24RELAY GEN PURPOSE SPST 16A 24V |
3,152 | 5.01 |
|
Tube | G2RL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|
G6RL-1A4-ASI-DC12RELAY GEN PURPOSE SPST 10A 12V |
100 | 3.50 |
|
Tray,Box | G6RL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 18.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |
|
G2RL-14-E DC5RELAY GEN PURPOSE SPDT 16A 5V |
200 | 5.15 |
|
- | Tube | G2RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|

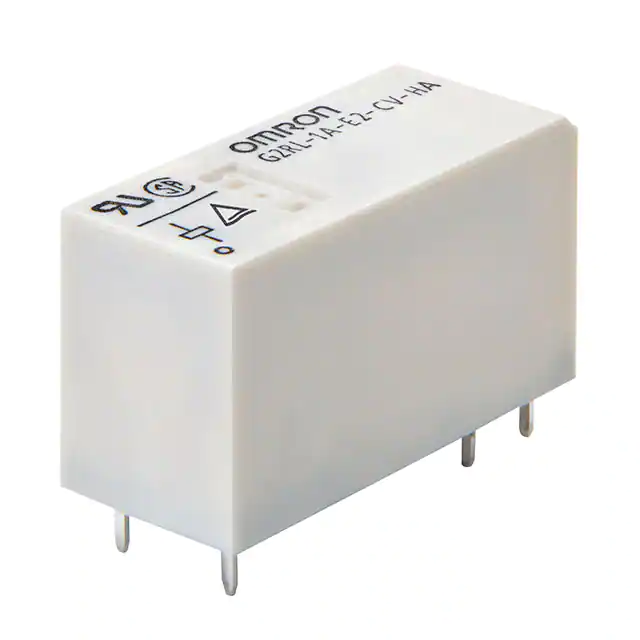

G2RL-1A-E2-CV-HA DC5RELAY GEN PURPOSE SPST 23A 5V |
3,051 | 5.16 |
|
Tray | G2RL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 23 A | 250VAC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | |
|
|
G6RL-1A4-ASI-DC24RELAY GEN PURPOSE SPST 10A 24V |
3,671 | 5.21 |
|
Bulk | G6RL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |
|
G6RL-14-ASI-DC5RELAY GEN PURPOSE SPDT 8A 5V |
3,003 | 5.30 |
|
Bulk | G6RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |
|
G2RL-24 DC48RELAY GEN PURPOSE DPDT 8A 48V |
3,298 | 5.50 |
|
- | Tube | G2RL | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
G2RL-24-CF DC5RELAY GENERAL PURPOSE DPDT 8A 5V |
2,880 | 5.50 |
|
- | Tube | G2RL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free |
|
G2R-1A-DC24RELAY GEN PURPOSE SPST 10A 24V |
3,942 | 5.64 |
|
Tube,Box | G2R | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 380VAC, 125VDC - Max | 21.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 3.6 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | |
|
G5RL-1-E-HR DC12RELAY GEN PURPOSE SPDT 16A 12V |
2,034 | 5.65 |
|
Bulk | G5RL | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|
|
G5RL-1-E-HR DC24RELAY GEN PURPOSE SPDT 16A 24V |
3,612 | 5.78 |
|
Bulk | G5RL | Active | Through Hole | 24VDC | SPDT (1 Form C) | 16 A | 250VAC, 24VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
|
G2R-2 DC9RELAY GEN PURPOSE DPDT 5A 9V |
2,796 | 7.00 |
|
Tray | G2R | Active | Through Hole | 9VDC | DPDT (2 Form C) | 5 A | 380VAC, 125VDC - Max | 58.8 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 6.3 VDC | 1.35 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | |
|
G6RN-1-AP4 DC24RELAY GEN PURPOSE SPDT 8A 24V |
3,037 | 7.04 |
|
Bulk | G6RN | Active | Through Hole | 24VDC | SPDT (1 Form C) | 8 A | 250VAC, 30VDC - Max | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy |
