PMIC - Voltage Regulators - Linear(69551)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | OutputConfiguration | OutputType | NumberofRegulators | Voltage-Input(Max) | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | VoltageDropout(Max) | Current-Output | Current-Quiescent(Iq) | Current-Supply(Max) | PSRR | ControlFeatures | ProtectionFeatures | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
__2.jpg)
|
LD1117ADT12TRIC REG LINEAR 1.2V 1A DPAK |
7,467 | 0.75 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 15V | 1.2V | - | 1.3V @ 1A | 1A | 10 mA | - | 80dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
|
LD1117ADT33TRIC REG LINEAR 3.3V 1A DPAK |
4,427 | 0.75 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 15V | 3.3V | - | 1.3V @ 1A | 1A | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
|
BD60GA5WEFJ-E2IC REG LINEAR 6V 500MA 8HTSOP |
4,503 | 0.85 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 14V | 6V | - | 0.9V @ 500mA | 500mA | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | Surface Mount |
|
|
BD70GA5WEFJ-E2IC REG LINEAR 7V 500MA 8HTSOP |
4,240 | 0.85 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 14V | 7V | - | 0.9V @ 500mA | 500mA | 6 µA | 900 µA | - | Enable | Over Current, Over Temperature, Soft Start | -25°C ~ 85°C | Surface Mount |
|
L78L12ABUTRIC REG LINEAR 12V 100MA SOT89-3 |
4,621 | 0.76 |
RFQ |
Datasheet |
TO-243AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 100mA | 6 mA | 6.5 mA | 42dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
TS9011SCY RMGIC REG LINEAR 3.3V 250MA SOT89 |
4,370 | 0.79 |
RFQ |
Datasheet |
TO-243AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 12V | 3.3V | - | 0.65V @ 200mA | 250mA | 5 µA | - | 30dB (100kHz) | Current Limit, Reset | Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
NCP511SN33T1GIC REG LINEAR 3.3V 150MA 5TSOP |
8,258 | 0.88 |
RFQ |
Datasheet |
SOT-23-5 Thin, TSOT-23-5 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 6V | 3.3V | - | 0.2V @ 100mA | 150mA | 40 µA | 100 µA | 50dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 85°C | Surface Mount |
|
TLV1117-25CDCYRIC REG LIN 2.5V 800MA SOT223-4 |
5,056 | 0.84 |
RFQ |
Datasheet |
TO-261-4, TO-261AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 15V | 2.5V | - | 1.3V @ 800mA | 800mA | 10 mA | - | 75dB (120Hz) | - | Over Current, Over Temperature | 0°C ~ 125°C | Surface Mount |
,TO-226_straightlead.jpg)
|
LM78L12ACZ/LFT7IC REG LINEAR 12V 100MA TO92-3 |
8,102 | 0.85 |
RFQ |
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 35V | 12V | - | - | 100mA | 3 mA | - | 54dB (120Hz) | - | Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|
TL751L05CDRIC REG LINEAR 5V 150MA 8SOIC |
3,124 | 0.85 |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 26V | 5V | - | 0.6V @ 150mA | 150mA | - | - | 65dB (120Hz) | Enable | Over Current, Over Temperature, Over Voltage, Reverse Polarity | 0°C ~ 125°C | Surface Mount |
,TO-226_bentlead.jpg)
|
LM317LZ-APIC REG LIN POS ADJ 100MA TO92-3 |
7,083 | 0.79 |
RFQ |
Datasheet |
TO-226-3, TO-92-3 (TO-226AA) Formed Leads | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Adjustable | 1 | 40V | 1.2V | 37V | - | 100mA | - | - | 80dB ~ 65dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | 0°C ~ 125°C | Through Hole |
|

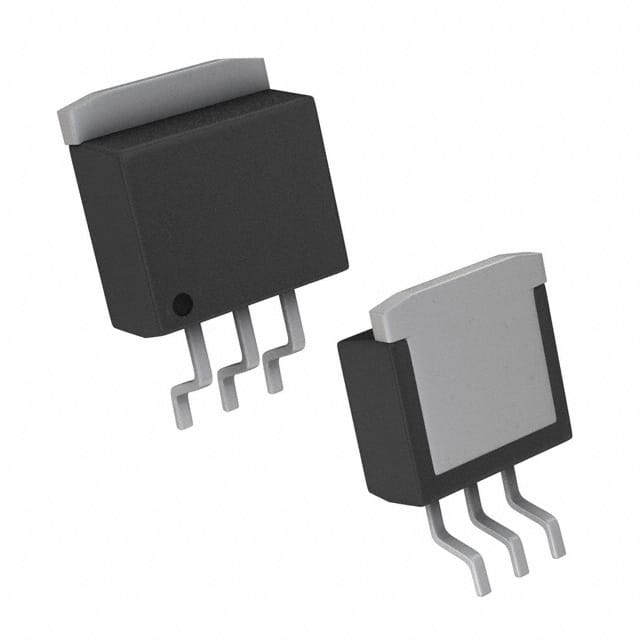

UA7815CKTTRIC REG LIN 15V 1.5A DDPAK/TO263 |
1,856 | 0.66 |
RFQ |
Datasheet |
TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 30V | 15V | - | 2V @ 1A | 1.5A | - | - | 78dB (120Hz) | - | Over Current, Over Temperature, Reverse Polarity, Short Circuit | 0°C ~ 125°C | Surface Mount |
|
TPS70618DRVRIC REG LINEAR 1.8V 150MA 6WSON |
8,660 | 0.88 |
RFQ |
Datasheet |
6-WDFN Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 6.5V | 1.8V | - | - | 150mA | 2.55 µA | 350 µA | 80dB ~ 52dB (10Hz ~ 1kHz) | Enable | Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Surface Mount |
|
|
L78M10ABDT-TRIC REG LINEAR 10V 500MA DPAK |
33,930 | 0.81 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 35V | 10V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
|
L78M08ABDT-TRIC REG LINEAR 8V 500MA DPAK |
19,332 | 0.81 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
|
L78M08ABDT-1IC REG LINEAR 8V 500MA DPAK |
2,324 | 0.00 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tube | - | Obsolete | Positive | Fixed | 1 | 35V | 8V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
|
L78M09ABDT-TRIC REG LINEAR 9V 500MA DPAK |
9,872 | 0.81 |
RFQ |
Datasheet |
TO-252-3, DPak (2 Leads + Tab), SC-63 | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 35V | 9V | - | - | 500mA | 6 mA | - | 56dB (120Hz) | - | Over Current, Over Temperature, Short Circuit | -40°C ~ 125°C | Surface Mount |
|
MIC5353-2.5YMT-TRIC REG LINEAR 2.5V 500MA 6TMLF |
5,533 | 0.47 |
RFQ |
Datasheet |
6-UFDFN Exposed Pad, 6-TMLF® | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 1 | 6V | 2.5V | - | 0.35V @ 500mA | 500mA | 175 µA | - | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|

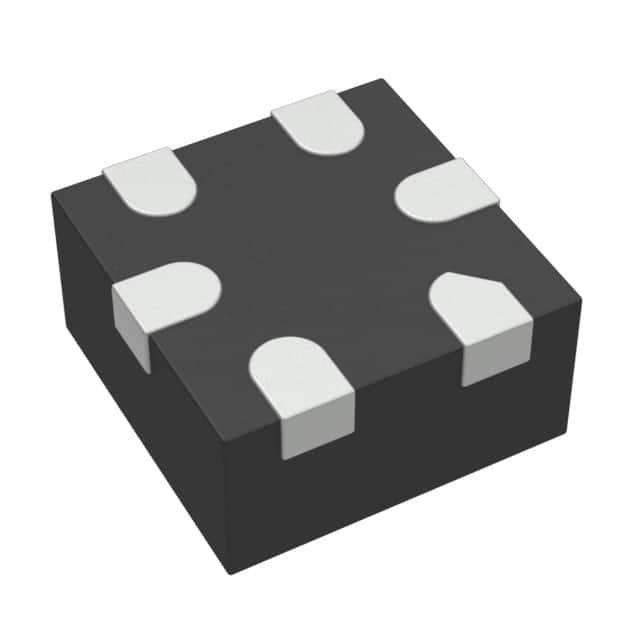

MIC5380-SSYFT-TRIC REG LINEAR 3.3V/3.3V 6TMLF |
11,462 | 0.49 |
RFQ |
Datasheet |
6-UFQFN, 6-TMLF® | Tape & Reel (TR),Cut Tape (CT) | - | Active | Positive | Fixed | 2 | 5.5V | 3.3V, 3.3V | - | 0.31V @ 150mA, 0.31V @ 150mA | 150mA, 150mA | 45 µA | 85 µA | 60dB (1kHz) | Enable | Over Current, Over Temperature | -40°C ~ 125°C | Surface Mount |
|
MIC5253-3.3YC5-TRIC REG LINEAR 3.3V 100MA SC70-5 |
3,000 | 0.49 |
RFQ |
Datasheet |
5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR),Cut Tape (CT) | Teeny™ | Active | Positive | Fixed | 1 | 5.5V | 3.3V | - | 0.3V @ 100mA | 100mA | 100 µA | 150 µA | 70dB ~ 65dB (1kHz ~ 10kHz) | Enable | Over Current, Over Temperature, Under Voltage Lockout (UVLO) | -40°C ~ 125°C | Surface Mount |
