| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | ReferenceType | OutputType | Voltage-Output(Min/Fixed) | Voltage-Output(Max) | Current-Output | Tolerance | TemperatureCoefficient | Noise-01Hzto10Hz | Noise-10Hzto10kHz | Voltage-Input | Current-Supply | Current-Cathode | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
REF102CPIC VREF SERIES 0.025% 8DIP |
322 | 17.83 |
RFQ |
Datasheet |
Tube | - | Obsolete | Series | Fixed | 10V | - | 10 mA | ±0.025% | 2.5ppm/°C | 5µVp-p | - | 11.4V ~ 36V | 1.4mA | - | -25°C ~ 85°C (TA) | Through Hole |
|
LM185H-1.2/NOPBIC VREF SHUNT 1% TO2 |
207 | 19.48 |
RFQ |
Datasheet |
Bulk | - | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 150ppm/°C | - | 60µVrms | - | - | 10 µA | -55°C ~ 125°C (TA) | Through Hole |
|
|
LM185H-2.5/NOPBIC VREF SHUNT 1.5% TO2 |
3,428 | 20.53 |
RFQ |
Datasheet |
Bulk | - | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 150ppm/°C | - | 120µVrms | - | - | 20 µA | -55°C ~ 125°C (TA) | Through Hole |
|

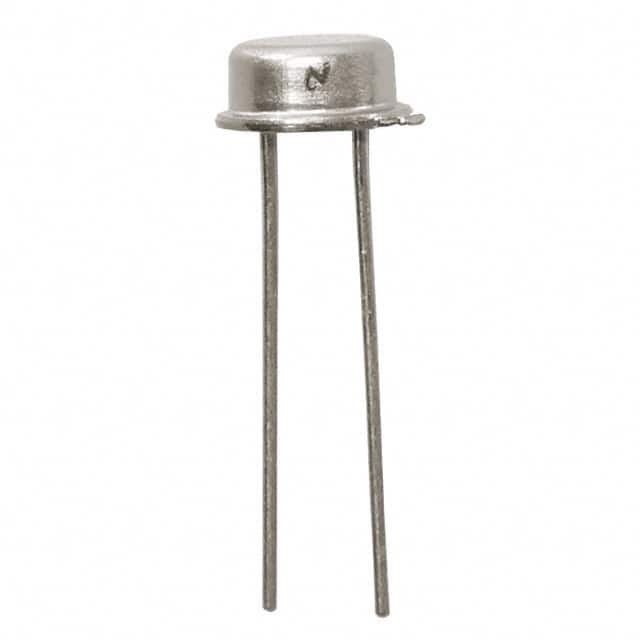

LM136H-5.0IC VREF SHUNT 2% TO46-3 |
3,995 | 21.00 |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | Shunt | Fixed | 5V | - | 10 mA | ±2% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | Through Hole |
|
|
LM136H-5.0/NOPBIC VREF SHUNT 2% TO46-3 |
909 | 21.00 |
RFQ |
Datasheet |
Bulk | - | Active | Shunt | Fixed | 5V | - | 10 mA | ±2% | - | - | - | - | - | 600 µA | -55°C ~ 125°C (TA) | Through Hole |
|

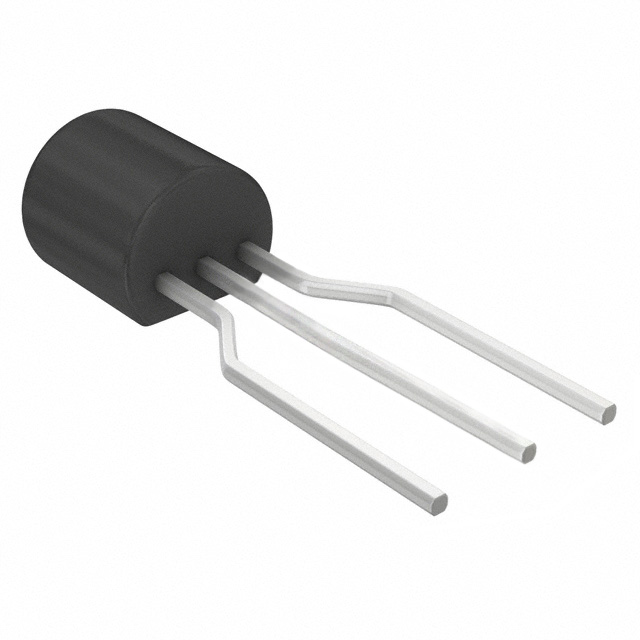

TL431CLPMIC VREF SHUNT ADJ 2.2% TO92-3 |
2,156 | 0.53 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±2.2% | - | - | - | - | - | 1 mA | 0°C ~ 70°C (TA) | Through Hole |
,TO-226_bentlead.jpg)
|
TL431BQLPRE3IC VREF SHUNT ADJ 0.5% TO92-3 |
2,895 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 700 µA | -40°C ~ 125°C (TA) | Through Hole |
,TO-226_straightlead.jpg)
|
TL431BQLPME3IC VREF SHUNT ADJ 0.5% TO92-3 |
2,673 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±0.5% | - | - | - | - | - | 700 µA | -40°C ~ 125°C (TA) | Through Hole |
|
|
TLV431CLPRIC VREF SHUNT ADJ 1.5% TO92-3 |
3,390 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±1.5% | - | - | - | - | - | 80 µA | 0°C ~ 70°C (TA) | Through Hole |
|
|
TLV431ILPRIC VREF SHUNT ADJ 1.5% TO92-3 |
2,903 | 0.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Adjustable | 1.24V | 6 V | 15 mA | ±1.5% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | Through Hole |
|
LM385MX-2.5/NOPBIC VREF SHUNT 3% 8SOIC |
3,025 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±3% | 150ppm/°C | - | 120µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | Surface Mount |
|
LM4041DIM7X-ADJ/NOPBIC VREF SHUNT ADJ 1% SC70-5 |
3,337 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | Surface Mount |
|
|
LM4041DIM7-1.2/NOPBIC VREF SHUNT 1% SC70-5 |
2,182 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 70 µA | -40°C ~ 85°C (TA) | Surface Mount |
|
LMV431AIZ/LFT3IC VREF SHUNT ADJ 1% TO92-3 |
3,595 | 0.90 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | - | Active | Shunt | Adjustable | 1.24V | 30 V | 15 mA | ±1% | - | - | - | - | - | 80 µA | -40°C ~ 85°C (TA) | Through Hole |
|
LM4041EEM3-1.2/NOPBIC VREF SHUNT 2% SOT23-3 |
2,352 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±2% | 150ppm/°C | - | 20µVrms | - | - | 73 µA | -40°C ~ 125°C (TA) | Surface Mount |
|
|
LM385BLPR-2-5IC VREF SHUNT 1.5% TO92-3 |
3,479 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 2.5V | - | 20 mA | ±1.5% | 20ppm/°C Typical | - | 120µVrms | - | - | 20 µA | 0°C ~ 70°C (TA) | Through Hole |
|
|
LM4041CIM7X-ADJ/NOPBIC VREF SHUNT ADJ 0.5% SC70-5 |
3,223 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Adjustable | 1.233V | 10 V | 12 mA | ±0.5% | 100ppm/°C | - | 20µVrms | - | - | 65 µA | -40°C ~ 85°C (TA) | Surface Mount |
|
LM385BPWR-1-2IC VREF SHUNT 1% 8TSSOP |
2,217 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 1.235V | - | 20 mA | ±1% | 20ppm/°C Typical | - | 60µVrms | - | - | 15 µA | 0°C ~ 70°C (TA) | Surface Mount |
|
|
TL431AIPIC VREF SHUNT ADJ 1% 8DIP |
3,701 | 0.52 |
RFQ |
Datasheet |
Tube | - | Last Time Buy | Shunt | Adjustable | 2.495V | 36 V | 100 mA | ±1% | - | - | - | - | - | 700 µA | -40°C ~ 85°C (TA) | Through Hole |
|
|
LM4041DEM3-1.2/NOPBIC VREF SHUNT 1% SOT23-3 |
2,742 | 1.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Shunt | Fixed | 1.225V | - | 12 mA | ±1% | 150ppm/°C | - | 20µVrms | - | - | 73 µA | -40°C ~ 125°C (TA) | Surface Mount |
