PMIC - Power Distribution Switches, Load Drivers(7298)
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX13253ATB+TIC PWR DRIVER N-CHAN 1:2 10TDFN |
4,619 | 8.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | 1:2 | Low Side | N-Channel | On/Off | 3V ~ 5.5V | Not Required | 1A | 145mOhm | - | Watchdog Timer | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
MAX4896ETP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
3,657 | 7.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
TLE7230RAUMA1IC PWR SWITCH N-CHAN 1:8 DSO-36 |
2,120 | 7.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 8 | 1:8 | Low Side | N-Channel | SPI | 4.5V ~ 5.5V | - | - | 800mOhm | - | Status Flag | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
MAX4896ATP+TIC PWR DRIVER N-CHAN 1:8 20TQFN |
4,187 | 8.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MAX4820ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
1,894 | 5.22 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
L6375SIC PWR SWITCH N-CHAN 1:1 8SOIC |
1,527 | 5.32 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 8V ~ 35V | Not Required | 500mA | - | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -25°C ~ 125°C (TJ) | Surface Mount |
|
MAX4820EUP+IC PWR DRIVER N-CHAN 1:8 20TSSOP |
6,223 | 5.33 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.3V ~ 5.5V | - | 70mA | 2Ohm | - | - | - | -40°C ~ 150°C (TJ) | Surface Mount |
|
DRV103UIC PWR DRIVER N-CHAN 1:1 8SOIC |
2,931 | 5.62 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 1 | 1:1 | Low Side | N-Channel | On/Off | 8V ~ 32V | Not Required | 1.5A | - | Non-Inverting | Internal PWM, Status Flag | Current Limiting (Fixed), Over Temperature | -55°C ~ 125°C (TA) | Surface Mount |
|
VN540SPTR-EIC PWR DRIVER 1:1 PWRSO10 |
743 | 10.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | VIPower™ | Active | General Purpose | 1 | 1:1 | High Side | - | On/Off | 10V ~ 36V | Not Required | 2.8A | 50mOhm (Max) | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature | -25°C ~ 85°C (TJ) | Surface Mount |
|
|
MAX4896ETP+IC PWR DRIVER N-CHAN 1:8 20TQFN |
2,241 | 7.97 |
RFQ |
Datasheet |
Tube | - | Active | Relay, Solenoid Driver | 8 | 1:8 | Low Side | N-Channel | SPI | 2.7V ~ 5.5V | - | 410mA | 3Ohm | Non-Inverting | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|

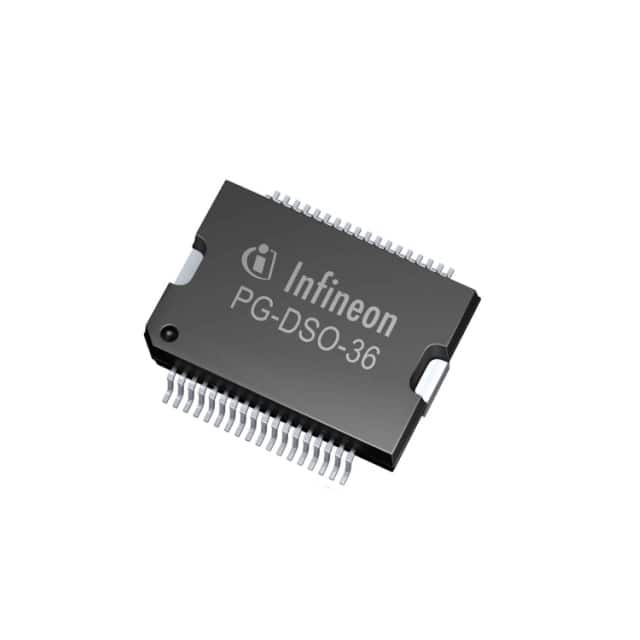

TLE8718SAAUMA4IC PWR SWITCH N-CH 1:18 DSO-36 |
3,955 | 12.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive | Active | General Purpose | 18 | 1:18 | Low Side | N-Channel | - | 4.5V ~ 5.5V | - | - | - | - | - | Over Temperature, Short Circuit, UVLO | -40°C ~ 150°C (TJ) | Surface Mount |
|
MAX14917AFM+INDUSTRIAL OCTAL HIGH SIDE DRIVE |
135 | 9.47 |
RFQ |
Datasheet |
Strip | - | Active | General Purpose | 8 | 1:1 | High Side | - | SPI | 10V ~ 36V | Not Required | - | 120mOhm | Non-Inverting | Load Discharge | Current Limiting (Fixed), Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
TDE1798DPIC PWR SWITCH BIPLR 1:1 8MINIDIP |
2,630 | 10.17 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 1 | 1:1 | High Side | Bipolar | On/Off | 6V ~ 35V | Not Required | 500mA | - | Inverting, Non-Inverting | - | Over Temperature | -25°C ~ 85°C (TA) | Through Hole |
|
MAX14916AFM+IC DVR OCTAL LOW SIDE |
3,320 | 11.04 |
RFQ |
Datasheet |
Strip | - | Active | General Purpose | 8 | 1:8 | High Side | - | SPI, Parallel | 10V ~ 36V | 2.5V ~ 5.5V | 1.67A | 120mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
MAX14913AKN+IC PWR DRIVER 1:8 56QFN |
3,054 | 15.75 |
RFQ |
Datasheet |
Tube | - | Active | General Purpose | 8 | 1:8 | High Side | - | SPI, Parallel | 10.5V ~ 36V | 1.6V ~ 5.5V | - | 110mOhm | - | Status Flag | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
AP22802BW5-7IC PWR SWITCH P-CHAN 1:1 SOT25 |
19,280 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Not For New Designs | USB Switch | 1 | 1:1 | High Side | P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 50mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
SLG59M1495VIC PWR SWITCH N-CHAN 1:1 4STDFN |
60,624 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | - | - | 2.5V ~ 5.5V | 1A | 80mOhm | CMOS | - | - | -20°C ~ 70°C (TA) | Surface Mount |
|

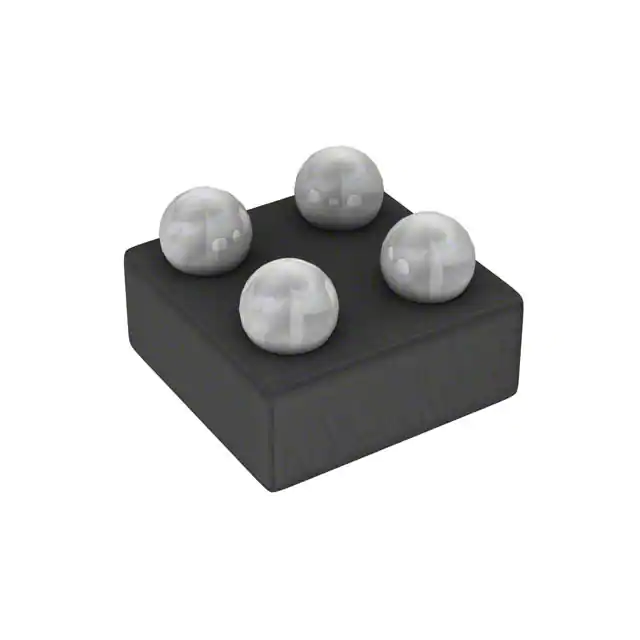

AP22916BCA4-7LOAD SWITCH X1-WLB0808-4 T&R 3K |
3,159 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 1 | 1:1 | High Side | P-Channel | On/Off | 1.3V ~ 5.5V | Not Required | 2A | 60mOhm | Non-Inverting | Load Discharge, Slew Rate Controlled | Over Temperature, Reverse Current, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
AP22818AKCWT-7USBPOWERSWITCHTSOT25T&R3K |
9,358 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 2A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
|
|
AP22816AKEWT-7USBPOWERSWITCHTSOT25T&R3K |
2,231 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100 | Active | USB Switch | 1 | 1:1 | High Side | N/P-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 1A | 75mOhm | Non-Inverting | Load Discharge, Status Flag | Current Limiting (Fixed), Over Temperature, Reverse Current, Short Circuit, UVLO | -40°C ~ 85°C (TA) | Surface Mount |
