| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

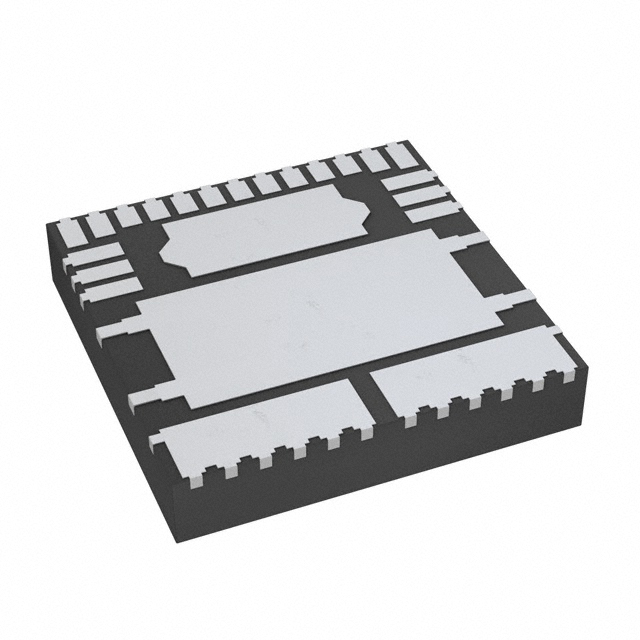

MC10XS4200BAFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
2,852 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC10XS4200BFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
3,826 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC20XS4200BAFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
2,574 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC20XS4200BFKIC PWR SWITCH N-CHAN 1:1 23PQFN |
3,391 | 0.00 |
RFQ |
Datasheet |
Tray | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | 20mOhm (Max) | - | Internal PWM, Slew Rate Controlled, Watchdog Timer | Current Limiting (Fixed), Open Load Detect, Over Temperature, UVLO | -40°C ~ 125°C (TA) | Surface Mount |
|
MC22XS4200BEKR2IC PWR SWITCH N-CHAN 1:2 32HSOP |
3,236 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | - | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC22XSD200BEKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
2,004 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 3A | 22mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC50XS4200BEKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
2,315 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 1.2A | 50mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC50XSD200BEKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
3,562 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 1.2A | 50mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC22XS4200BEKIC PWR SWITCH N-CHAN 1:2 32HSOP |
2,863 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | General Purpose | 2 | 1:2 | High Side | N-Channel | SPI | 8V ~ 36V | 3V ~ 5.5V | 3A | - | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC22XSD200BEKIC PWR SWITCH N-CHAN 1:1 32HSOP |
3,632 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 3A | 22mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC50XS4200BEKIC PWR SWITCH N-CHAN 1:1 32HSOP |
3,571 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 1.2A | 50mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC50XSD200BEKIC PWR SWITCH N-CHAN 1:1 32HSOP |
2,959 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | General Purpose | 2 | 1:1 | High Side | N-Channel | SPI | 8V ~ 36V | 3.3V ~ 5V | 1.2A | 50mOhm | - | Slew Rate Controlled | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC08XS6421EKIC PWR SWITCH N-CHAN 1:1 32HSOP |
2,083 | 0.00 |
RFQ |
Datasheet |
Tray,Tray | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC40XSF500EKIC PWR SWITCH HIGH SIDE 32HSOP |
3,537 | 0.00 |
RFQ |
Datasheet |
Tube,Tube | - | Obsolete | General Purpose | 5 | - | High Side | - | SPI | 7V ~ 18V | - | - | 40mOhm | - | - | Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC08XS6421EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
3,436 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC08XSF421EKR2IC PWR SWITCH N-CHAN 1:1 32HSOP |
2,567 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | General Purpose | 4 | 1:1 | High Side | N-Channel | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 5.5A, 11A | 8mOhm, 21mOhm | - | Slew Rate Controlled | Current Limiting (Fixed), Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount | |
|
|
MC10XS6200EKR2IC PWR SWITCH HIGH SIDE 32HSOP |
2,529 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | - | High Side | - | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 9A | 10mOhm | - | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC10XS6225EKR2IC PWR SWITCH HIGH SIDE 32HSOP |
2,942 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | - | High Side | - | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.8A, 9A | 10mOhm, 25mOhm | - | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC10XS6325EKR2IC PWR SWITCH HIGH SIDE 32HSOP |
3,125 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | General Purpose | 3 | - | High Side | - | SPI | 7V ~ 18V | 4.5V ~ 5.5V | 3.8A, 9A | 10mOhm, 25mOhm | - | Status Flag | Open Load Detect, Over Temperature | -40°C ~ 125°C (TA) | Surface Mount |
|
|
MC10XSD200BFKR2IC PWR SWITCH HIGH SIDE 23PQFN |
2,799 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | General Purpose | 2 | - | High Side | - | SPI | 8V ~ 36V | 3V ~ 5.5V | 6A | 10mOhm | - | - | Open Load Detect, Over Temperature, Over Voltage | -40°C ~ 125°C (TA) | Surface Mount |
