| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | SwitchType | NumberofOutputs | Ratio-Input:Output | OutputConfiguration | OutputType | Interface | Voltage-Load | Voltage-Supply(Vcc/Vdd) | Current-Output(Max) | RdsOn(Typ) | InputType | Features | FaultProtection | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS2041DIC PWR SWITCH N-CHAN 1:1 8SOIC |
12,822 | 2.88 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | General Purpose | 1 | 1:1 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
TPS65286RHDRIC PWR SWITCH N-CHAN 1:1 28VQFN |
2,886 | 4.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | General Purpose | 2 | 1:1 | High Side | N-Channel | - | 4.5V ~ 28V | - | 6A | 100mOhm | - | Slew Rate Controlled, Status Flag | Current Limiting (Adjustable), Over Temperature, Over Voltage, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
TPS2044DRIC PWR SWITCH N-CH 2X1:2 16SOIC |
2,035 | 4.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | General Purpose | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
TPS2014DRIC PWR SWITCH N-CHAN 1:1 8SOIC |
3,933 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Not For New Designs | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 5.25V | - | 600mA | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|

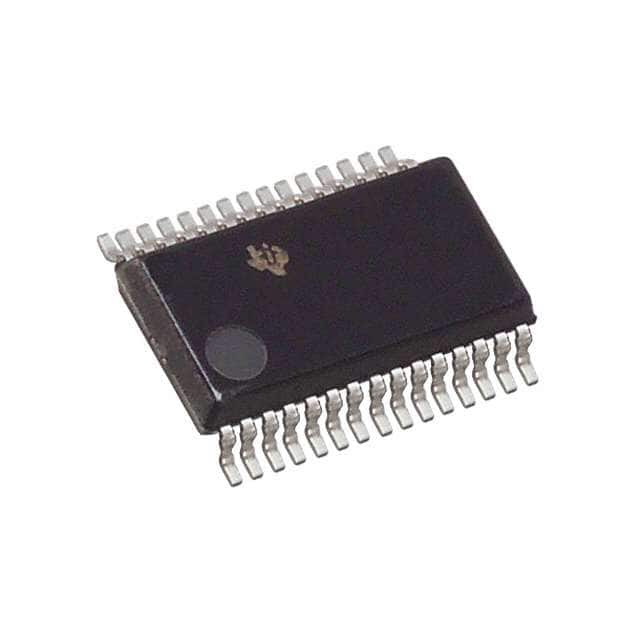

TPS2205IDBRIC PWR SWITCH 3:4 30SSOP |
90,000 | 3.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
TPS2205IDAPRIC PWR SWITCH 3:4 32HTSSOP |
14,292 | 3.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
TPS2223ADBIC PWR SWITCH 3:4 24SSOP |
12,119 | 3.22 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2075DBRIC PWR SWITCH N-CHAN 1:4 24SSOP |
6,000 | 4.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | USB Switch | 4 | 1:4 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 100mA | 100mOhm | - | Power Good, Status Flag | Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
TPS2206ADBIC PWR SWITCH 3:4 30SSOP |
6,559 | 3.29 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2223DBIC PWR SWITCH 3:4 24SSOP |
6,965 | 3.49 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2224ADBIC PWR SWITCH 3:4 24SSOP |
19,250 | 3.49 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
TPS2014PIC PWR SWITCH N-CHANNEL 1:1 8DIP |
35,075 | 4.53 |
RFQ |
Datasheet |
Bulk,Tube | - | Not For New Designs | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 5.25V | - | 600mA | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | 0°C ~ 125°C (TJ) | Through Hole |
|
|
TPS2015DIC PWR SWITCH N-CHAN 1:1 8SOIC |
5,663 | 4.02 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | USB Switch | 1 | 1:1 | High Side | N-Channel | On/Off | 4.75V ~ 5.25V | - | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | 0°C ~ 125°C (TJ) | Surface Mount |
|
TPS2206IDBRIC PWR SWITCH 3:4 30SSOP |
10,032 | 4.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2226DBIC PWR SWITCH 3:4 30SSOP |
16,522 | 4.37 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Serial | 3.3V, 5V, 12V | Not Required | 1A | 95mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2074DBIC PWR SWITCH N-CHAN 1:4 24SSOP |
5,826 | 4.38 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | USB Switch | 4 | 1:4 | High Side | N-Channel | On/Off | 4.5V ~ 5.5V | Not Required | 100mA | 100mOhm | - | Power Good, Status Flag | Over Temperature | -40°C ~ 125°C (TJ) | Surface Mount |
|
TPS2221PWPIC PWR SWITCH 3:2 14HTSSOP |
3,552 | 5.82 |
RFQ |
Datasheet |
Tube | - | Obsolete | PCMCIA Switch | 2 | 3:2 | High Side | - | Parallel | 1.8V, 3.3V, 5V | Not Required | 1A | 97mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2054DIC PWR SWITCH N-CH 2X1:2 16SOIC |
5,255 | 4.85 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | General Purpose | 4 | 2 x 1:2 | High Side | N-Channel | On/Off | 2.7V ~ 5.5V | Not Required | 500mA | 80mOhm | Non-Inverting | Status Flag | Current Limiting (Fixed), Over Temperature, UVLO | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
TPS2205IDBIC PWR SWITCH 3:4 30SSOP |
6,855 | 4.73 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
|
|
TPS2205IDAPIC PWR SWITCH 3:4 32HTSSOP |
2,431 | 4.73 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | PCMCIA Switch | 4 | 3:4 | High Side | - | Parallel | 3.3V, 5V, 12V | Not Required | 1A | 103mOhm | - | Status Flag | Current Limiting (Fixed), Over Temperature | -40°C ~ 85°C (TA) | Surface Mount |
