| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | OutputIsolation | InternalSwitch(s) | Voltage-Breakdown | Topology | Voltage-StartUp | Voltage-Supply(Vcc/Vdd) | DutyCycle | Frequency-Switching | Power(Watts) | FaultProtection | ControlFeatures | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TOP242PNIC OFFLINE SWITCH FLYBACK 8DIP |
2,655 | 1.90 |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 15 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|
TOP221PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,372 | 1.99 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 9 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
TOP245GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
3,892 | 2.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 30 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|
TOP223GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
2,347 | 2.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
TOP254YNIC OFFLINE SW FLYBACK TO220-7C |
2,056 | 2.16 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 62 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
TOP267VGIC OFFLINE SWITCH FLYBACK 12EDIP |
3,240 | 2.16 |
RFQ |
Datasheet |
Tube | TOPSwitch®-JX | Active | Isolated | Yes | 725V | Flyback | - | - | 78% | 66kHz, 132kHz | 44 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control | -40°C ~ 150°C (TJ) |
|
TOP242YNIC OFFLINE SW FLYBACK TO220-7C |
2,034 | 2.18 |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 22 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|
TOP255YNIC OFFLINE SW FLYBACK TO220-7C |
2,450 | 2.29 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 81 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
TOP244R-TLIC OFFLINE SWITCH FLYBACK TO263 |
2,147 | 2.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 50 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|

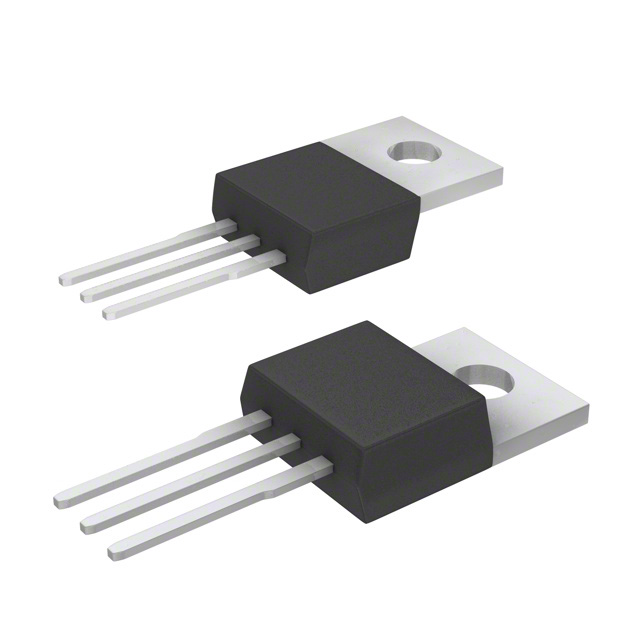

TOP221YNIC OFFLINE SW MULT TOP TO220-3 |
3,385 | 2.35 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 12 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
|
TOP222PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,486 | 2.35 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 15 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
TOP258PGIC OFFLINE SWITCH FLYBACK 8DIP |
2,272 | 2.37 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 48 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TOP222YNIC OFFLINE SW MULT TOP TO220-3 |
3,905 | 2.73 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
|
TOP223PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,706 | 2.73 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
INN3977CQ-TLIC OFFLINE SW FLBACK INSOP-24D |
3,351 | 5.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | InnoSwitch™3-AQ | Active | Isolated | Yes | 750V | Flyback | - | 30V ~ 550V | - | 25kHz | 30 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | EN, Soft Start | -40°C ~ 125°C (TA) |
|
|
TOP245YNIC OFFLINE SW FLYBACK TO220-7C |
3,876 | 3.04 |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 85 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) |
|
|
TOP224PNIC OFFLINE SWITCH MULT TOP 8DIP |
991 | 3.10 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 30 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
|
TOP261ENIC OFFLINE SWITCH FLYBACK 7ESIP |
3,328 | 3.26 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 333 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
TOP260YNIC OFFLINE SW FLYBACK TO220-7C |
3,080 | 3.57 |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 275 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) |
|
|
TOP225YNIC OFFLINE SW MULT TOP TO220-3 |
194 | 3.82 |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 100 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) |
