| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | BaseResonator | Type | Frequency | Function | Output | Voltage-Supply | FrequencyStability | AbsolutePullRange(APR) | OperatingTemperature | SpreadSpectrumBandwidth | Current-Supply(Max) | Ratings | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-TXO-3225-120-TRXTAL OSC TCXO 12.0000MHZ HCMOS |
525 | 2.73 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-TXO-3225 | Active | Crystal | TCXO | 12 MHz | - | HCMOS | 3.3V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
|
ECS-3525-800-B-TRXTAL OSC XO 80.0000MHZ HCMOS SMD |
1,997 | 2.76 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-3525 | Active | Crystal | XO (Standard) | 80 MHz | Enable/Disable | HCMOS | 2.5V | ±50ppm | - | 0°C ~ 70°C | - | 30mA | - | Surface Mount | 0.197 L x 0.126 W (5.00mm x 3.20mm) |
|
ECS-TXO-2520MV-400-AY-TRXTAL OSC TCXO 40MHZ CMOS SMD |
799 | 2.85 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-TXO-2520MV MultiVolt™ | Active | Crystal | TCXO | 40 MHz | Enable/Disable | CMOS | 1.7V ~ 3.6V | ±2.5ppm | - | -30°C ~ 85°C | - | 6mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
|
ECS-TXO-2520MV-240-AY-TRXTAL OSC TCXO 24MHZ CMOS SMD |
617 | 2.85 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-TXO-2520MV MultiVolt™ | Active | Crystal | TCXO | 24 MHz | Enable/Disable | CMOS | 1.7V ~ 3.6V | ±2.5ppm | - | -30°C ~ 85°C | - | 5.5mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
|
ECS-TXO-2520MV-250-AY-TRXTAL OSC TCXO 25MHZ CMOS SMD |
294 | 2.85 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-TXO-2520MV MultiVolt™ | Active | Crystal | TCXO | 25 MHz | Enable/Disable | CMOS | 1.7V ~ 3.6V | ±2.5ppm | - | -30°C ~ 85°C | - | 5.5mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|

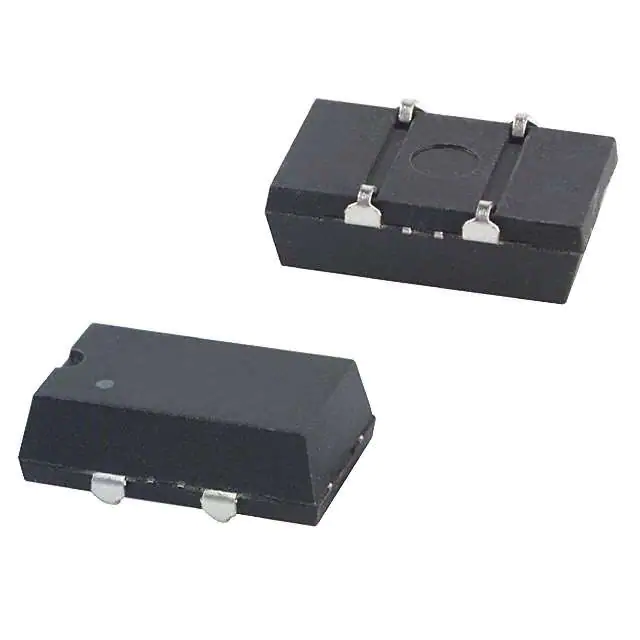

ECS-8FA3X-036-TRXTAL OSC XO 3.6864MHZ CMOS SMD |
2,166 | 4.00 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 3.6864 MHz | Enable/Disable | CMOS | 3.3V | ±200ppm | - | -40°C ~ 85°C | - | 9mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FA3X-122.8-TRXTAL OSC XO 12.2880MHZ CMOS SMD |
2,088 | 4.00 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 12.288 MHz | Enable/Disable | CMOS | 3.3V | ±200ppm | - | -40°C ~ 85°C | - | 9mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FA3X-245.7-TRXTAL OSC XO 24.5760MHZ CMOS SMD |
2,862 | 4.00 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 24.576 MHz | Enable/Disable | CMOS | 3.3V | ±200ppm | - | -40°C ~ 85°C | - | 9mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FMX-122.8-TRXTAL OSC XO 12.2880MHZ CMOS TTL |
1,000 | 2.86 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 12.288 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FA3X-020.48-TRXTAL OSC XO 2.0480MHZ CMOS SMD |
1,074 | 4.00 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 2.048 MHz | Enable/Disable | CMOS | 3.3V | ±200ppm | - | -40°C ~ 85°C | - | 9mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
ECS-2018-035-BNXTAL OSC XO 3.579545MHZ HCMOS |
1,448 | 4.16 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-2018 | Active | Crystal | XO (Standard) | 3.579545 MHz | Enable/Disable | HCMOS | 1.8V | ±50ppm | - | -40°C ~ 85°C | - | 2.5mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
|
ECS-2018-040-BNXTAL OSC XO 4.0000MHZ HCMOS SMD |
1,280 | 4.16 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-2018 | Active | Crystal | XO (Standard) | 4 MHz | Enable/Disable | HCMOS | 1.8V | ±50ppm | - | -40°C ~ 85°C | - | 2.5mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
ECS-TXO-20CSMV-AC-260-AY-TRXTAL OSC TCXO 26MHZ CLPSNW SMD |
1,860 | 2.96 |
RFQ |
Datasheet |
6-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-TXO-20CSMV MultiVolt™ | Active | Crystal | TCXO | 26 MHz | - | Clipped Sine Wave | 1.7V ~ 3.6V | ±500ppb | - | -30°C ~ 85°C | - | 1.5mA | - | Surface Mount | 0.079 L x 0.063 W (2.00mm x 1.60mm) |
-0.035-Thick.jpg)
|
ECS-2033-270-BNXTAL OSC XO 27.0000MHZ CMOS SMD |
1,833 | 2.96 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-2033 | Active | Crystal | XO (Standard) | 27 MHz | Enable/Disable | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 13mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
|
ECS-8FMX-666-TRXTAL OSC XO 66.6660MHZ CMOS TTL |
1,157 | 4.18 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8FX | Active | Crystal | XO (Standard) | 66.666 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 35mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-3525-100-B-TRXTAL OSC XO 10.0000MHZ HCMOS SMD |
1,250 | 2.48 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | ECS-3525 | Active | Crystal | XO (Standard) | 10 MHz | Enable/Disable | HCMOS | 2.5V | ±50ppm | - | 0°C ~ 70°C | - | 8mA | - | Surface Mount | 0.197 L x 0.126 W (5.00mm x 3.20mm) |
|
ECS-8FM-250-TRXTAL OSC XO 25.0000MHZ CMOS TTL |
826 | 3.15 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8F | Obsolete | Crystal | XO (Standard) | 25 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FM-160-TRXTAL OSC XO 16.0000MHZ CMOS TTL |
677 | 3.15 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8F | Obsolete | Crystal | XO (Standard) | 16 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FM-098.3-TRXTAL OSC XO 9.8304MHZ CMOS TTL |
273 | 3.15 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8F | Obsolete | Crystal | XO (Standard) | 9.8304 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|
|
ECS-8FM-018-TRXTAL OSC XO 1.8432MHZ CMOS TTL |
150 | 3.15 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | ECS-8F | Obsolete | Crystal | XO (Standard) | 1.8432 MHz | Enable/Disable | CMOS, TTL | 5V | ±200ppm | - | -40°C ~ 85°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
