| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | BaseResonator | Type | Frequency | Function | Output | Voltage-Supply | FrequencyStability | AbsolutePullRange(APR) | OperatingTemperature | SpreadSpectrumBandwidth | Current-Supply(Max) | Ratings | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

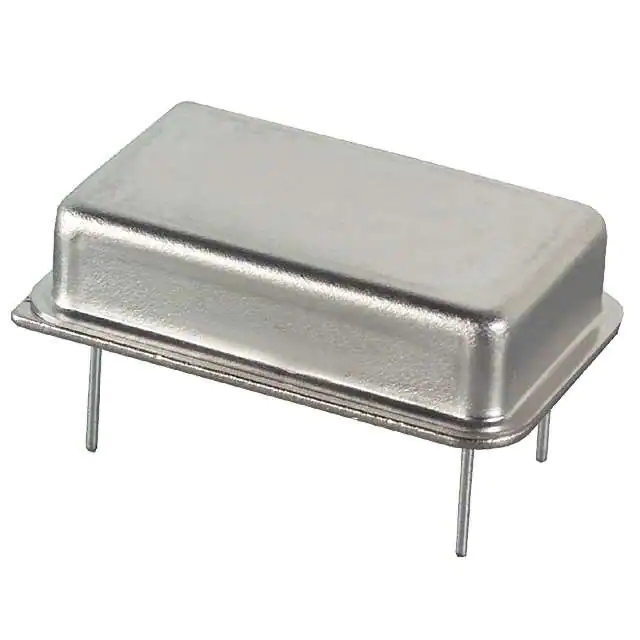

ECS-100AX-200XTAL OSC XO 20.0000MHZ TTL TH |
3,601 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100X | Active | Crystal | XO (Standard) | 20 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-100AX-040XTAL OSC XO 4.0000MHZ TTL TH |
3,089 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Tube | ECS-100X | Active | Crystal | XO (Standard) | 4 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
ECS-2100AX-147.4XTAL OSC XO 14.7456MHZ HCMOS TTL |
2,012 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100X | Active | Crystal | XO (Standard) | 14.7456 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
ECS-2200B-110.5XTAL OSC XO 11.0592MHZ HCMOS TTL |
1,017 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2200 | Active | Crystal | XO (Standard) | 11.0592 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100AX-147.4XTAL OSC XO 14.7456MHZ TTL TH |
1,754 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100X | Active | Crystal | XO (Standard) | 14.7456 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2100AX-110.5XTAL OSC XO 11.0592MHZ HCMOS TTL |
1,074 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100X | Active | Crystal | XO (Standard) | 11.0592 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-2100A-012.2XTAL OSC XO 1.2288MHZ HCMOS TTL |
1,065 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100 | Active | Crystal | XO (Standard) | 1.2288 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100AX-018XTAL OSC XO 1.8432MHZ TTL TH |
1,043 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100X | Active | Crystal | XO (Standard) | 1.8432 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2100A-018XTAL OSC XO 1.8432MHZ HCMOS TTL |
1,013 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100 | Active | Crystal | XO (Standard) | 1.8432 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100AX-100XTAL OSC XO 10.0000MHZ TTL TH |
1,025 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100X | Active | Crystal | XO (Standard) | 10 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2100A-010XTAL OSC XO 1.0000MHZ HCMOS TTL |
756 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100 | Active | Crystal | XO (Standard) | 1 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100AX-080XTAL OSC XO 8.0000MHZ TTL TH |
953 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100X | Active | Crystal | XO (Standard) | 8 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 30mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2200BX-400XTAL OSC XO 40.0000MHZ HCMOS TTL |
934 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2200X | Active | Crystal | XO (Standard) | 40 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 46mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100A-010XTAL OSC XO 1.0000MHZ TTL TH |
781 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100 | Active | Crystal | XO (Standard) | 1 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2200B-250XTAL OSC XO 25.0000MHZ HCMOS TTL |
285 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2200 | Active | Crystal | XO (Standard) | 25 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-2100A-020XTAL OSC XO 2.0000MHZ HCMOS TTL |
687 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2100 | Active | Crystal | XO (Standard) | 2 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-2200BX-160XTAL OSC XO 16.0000MHZ HCMOS TTL |
543 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Bulk | ECS-2200X | Active | Crystal | XO (Standard) | 16 MHz | Enable/Disable | HCMOS, TTL | 5V | ±50ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
|
|
ECS-100AX-400XTAL OSC XO 40.0000MHZ TTL TH |
526 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Tube | ECS-100X | Active | Crystal | XO (Standard) | 40 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 70mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-100A-049XTAL OSC XO 4.9152MHZ TTL TH |
464 | 3.15 |
RFQ |
Datasheet |
14-DIP, 4 Leads (Full Size, Metal Can) | Bulk | ECS-100 | Active | Crystal | XO (Standard) | 4.9152 MHz | - | TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 15mA | - | Through Hole | 0.821 L x 0.520 W (20.86mm x 13.20mm) |
|
|
ECS-2100AX-036XTAL OSC XO 3.6864MHZ HCMOS TTL |
360 | 3.15 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size, Metal Can) | Tube | ECS-2100X | Active | Crystal | XO (Standard) | 3.6864 MHz | - | HCMOS, TTL | 5V | ±100ppm | - | 0°C ~ 70°C | - | 25mA | - | Through Hole | 0.520 L x 0.520 W (13.20mm x 13.20mm) |
