| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | BaseResonator | Type | Frequency | Function | Output | Voltage-Supply | FrequencyStability | AbsolutePullRange(APR) | OperatingTemperature | SpreadSpectrumBandwidth | Current-Supply(Max) | Ratings | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

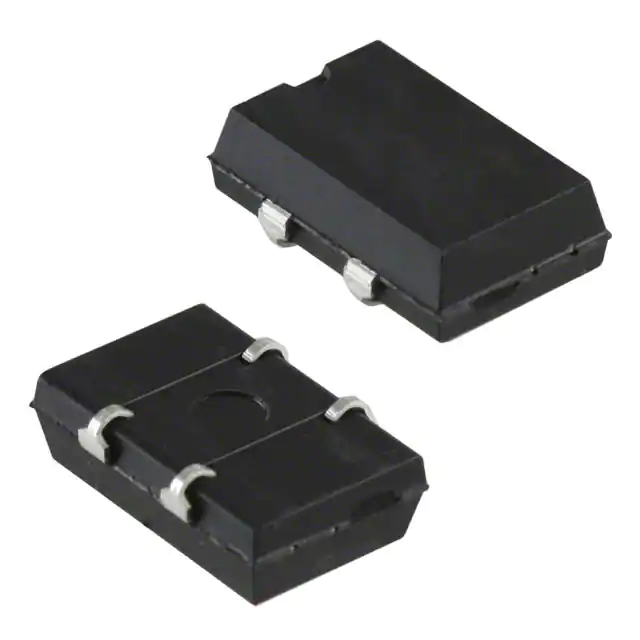

SG-615P 22.1184MC0:ROHSXTAL OSC XO 22.1184MHZ CMOS TTL |
218 | 2.41 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | SG-615 | Obsolete | Crystal | XO (Standard) | 22.1184 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Surface Mount | 0.551 L x 0.341 W (14.00mm x 8.65mm) |
|

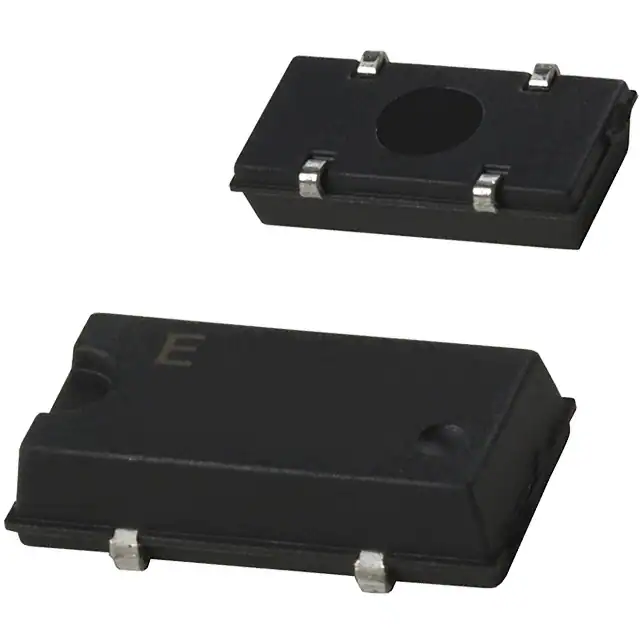

SG-636PCE 2.4576MC0:ROHSXTAL OSC XO 2.4576MHZ CMOS SMD |
1,277 | 2.47 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | SG-636 | Obsolete | Crystal | XO (Standard) | 2.4576 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 0.413 L x 0.197 W (10.50mm x 5.00mm) |
|
|
SG-636PCE 6.0000MC0:ROHSXTAL OSC XO 6.0000MHZ CMOS SMD |
854 | 2.47 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | SG-636 | Obsolete | Crystal | XO (Standard) | 6 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 0.413 L x 0.197 W (10.50mm x 5.00mm) |
|
|
SG-636PCE 24.0000MC0:ROHSXTAL OSC XO 24.0000MHZ CMOS SMD |
380 | 2.47 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | SG-636 | Obsolete | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 0.413 L x 0.197 W (10.50mm x 5.00mm) |
|
|
SG-636PCE 32.0000MC0:ROHSXTAL OSC XO 32.0000MHZ CMOS SMD |
341 | 2.47 |
RFQ |
Datasheet |
4-SOJ, 5.08mm pitch | Tape & Reel (TR),Cut Tape (CT) | SG-636 | Obsolete | Crystal | XO (Standard) | 32 MHz | Enable/Disable | CMOS | 3.3V | ±100ppm | - | -20°C ~ 70°C | - | 9mA | - | Surface Mount | 0.413 L x 0.197 W (10.50mm x 5.00mm) |
|

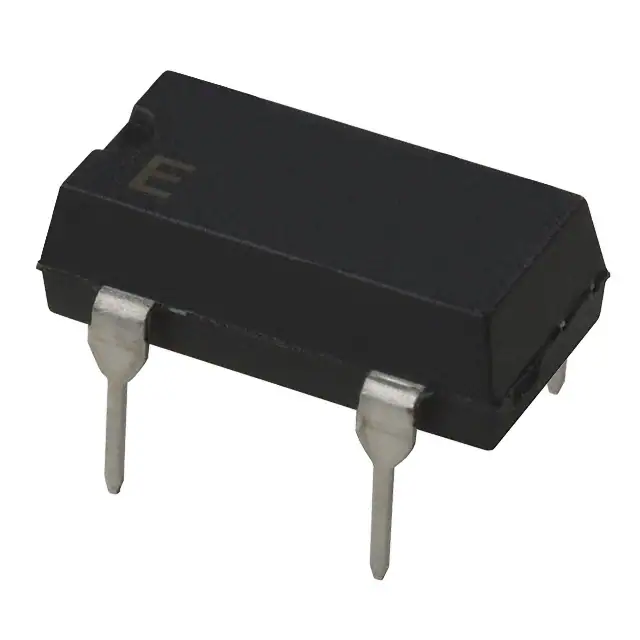

SG-531P 2.0000MC: ROHSXTAL OSC XO 2.0000MHZ CMOS TTL |
1,140 | 2.60 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size) | Tube | SG-531 | Obsolete | Crystal | XO (Standard) | 2 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Through Hole | 0.539 L x 0.260 W (13.70mm x 6.60mm) |
|
SG7050CAN 12.000000M-TJGA3XTAL OSC XO 12.0000MHZ CMOS SMD |
125 | 2.92 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG7050CAN | Active | Crystal | XO (Standard) | 12 MHz | Standby (Power Down) | CMOS | 1.6V ~ 3.6V | ±50ppm | - | -40°C ~ 85°C | - | 3mA | - | Surface Mount | 0.276 L x 0.197 W (7.00mm x 5.00mm) |
|
SG5032EAN 400.000000M-KEGA3XTAL OSC XO 400.0000MHZ LVPECL |
198 | 3.41 |
RFQ |
Datasheet |
6-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG5032 | Active | Crystal | XO (Standard) | 400 MHz | Enable/Disable | LVPECL | 2.5V ~ 3.3V | - | - | -40°C ~ 85°C | - | 65mA | - | Surface Mount | 0.197 L x 0.126 W (5.00mm x 3.20mm) |
|
|
SG5032EAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVPECL |
125 | 3.41 |
RFQ |
Datasheet |
6-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG5032 | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVPECL | 2.5V ~ 3.3V | - | - | -40°C ~ 85°C | - | 65mA | - | Surface Mount | 0.197 L x 0.126 W (5.00mm x 3.20mm) |
|
|
SG-531P 19.6608MC:ROHSXTAL OSC XO 19.6608MHZ CMOS TTL |
1,458 | 2.60 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size) | Tube | SG-531 | Obsolete | Crystal | XO (Standard) | 19.6608 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Through Hole | 0.539 L x 0.260 W (13.70mm x 6.60mm) |
|
|
SG-531P 24.0000MC:ROHSXTAL OSC XO 24.0000MHZ CMOS TTL |
952 | 2.60 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size) | Tube | SG-531 | Obsolete | Crystal | XO (Standard) | 24 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Through Hole | 0.539 L x 0.260 W (13.70mm x 6.60mm) |
|
|
SG-531P 4.0000MC: ROHSXTAL OSC XO 4.0000MHZ CMOS TTL |
299 | 2.60 |
RFQ |
Datasheet |
8-DIP, 4 Leads (Half Size) | Tube | SG-531 | Obsolete | Crystal | XO (Standard) | 4 MHz | Enable/Disable | CMOS, TTL | 5V | ±100ppm | - | -20°C ~ 70°C | - | 23mA | - | Through Hole | 0.539 L x 0.260 W (13.70mm x 6.60mm) |
|
SG-310SEF 25.0000MB3XTAL OSC XO 25.0000MHZ CMOS SMD |
6,715 | 2.36 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG-310 | Obsolete | Crystal | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 1.8V | ±50ppm | - | -20°C ~ 70°C | - | 2mA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
|
|
SG-310SEF 12.0000MM3XTAL OSC XO 12.0000MHZ CMOS SMD |
4,135 | 2.36 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG-310 | Obsolete | Crystal | XO (Standard) | 12 MHz | Standby (Power Down) | CMOS | 1.8V | ±100ppm | - | -40°C ~ 85°C | - | 1.5mA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
|
|
SG-310SDF 25.0000MB3XTAL OSC XO 25.0000MHZ CMOS SMD |
10,695 | 2.67 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG-310 | Obsolete | Crystal | XO (Standard) | 25 MHz | Standby (Power Down) | CMOS | 2.5V | ±50ppm | - | -20°C ~ 70°C | - | 2mA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
|
SG7050EAN 200.000000M-KEGA3XTAL OSC XO 200.0000MHZ LVPECL |
498 | 3.03 |
RFQ |
Datasheet |
6-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | SG7050 | Active | Crystal | XO (Standard) | 200 MHz | Enable/Disable | LVPECL | 2.5V ~ 3.3V | ±30ppm | - | -40°C ~ 85°C | - | 65mA | - | Surface Mount | 0.276 L x 0.197 W (7.00mm x 5.00mm) |
|
|
SG-310SCF 8.0000MLXTAL OSC XO 8.0000MHZ CMOS SMD |
1,534 | 2.67 |
RFQ |
Datasheet |
4-SMD, No Lead | Strip | SG-310SCF | Obsolete | Crystal | XO (Standard) | 8 MHz | Standby (Power Down) | CMOS | 3.3V | ±50ppm | - | -40°C ~ 85°C | - | 2mA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
|
TG2520SMN 27.0000M-MCGNNM3XTAL OSC TCXO 27MHZ CSW 2.8~3.3V |
1,058 | 3.61 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | TG2520SMN | Active | Crystal | TCXO | 27 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|
|
TG2520SMN 27.6000M-MCGNNM3XTAL OSC TCXO 27MHZ CSW 2.8~3.3V |
193 | 3.61 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | TG2520SMN | Active | Crystal | TCXO | 27.6 MHz | - | Clipped Sine Wave | 2.8V ~ 3.3V | ±500ppb | - | -40°C ~ 85°C | - | 1.8mA | - | Surface Mount | 0.098 L x 0.079 W (2.50mm x 2.00mm) |
|

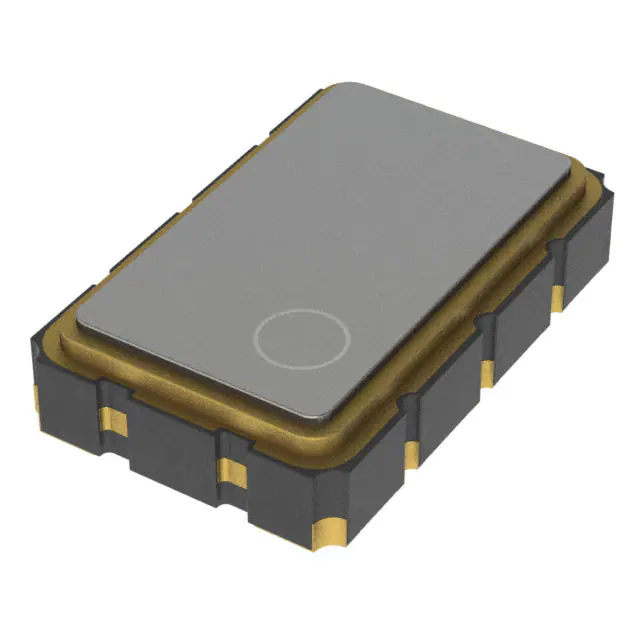

TG-3541CE 32.7680KXA0XTAL OSC TCXO 32.7680KHZ CMOS |
264 | 3.83 |
RFQ |
Datasheet |
10-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | TG-3541CE | Active | Crystal | TCXO | 32.768 kHz | Enable/Disable | CMOS | 1.5V ~ 5.5V | ±8ppm | - | -40°C ~ 105°C | - | 3µA | - | Surface Mount | 0.126 L x 0.098 W (3.20mm x 2.50mm) |
