| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC355NJ0000FOPTOISO 3.75KV DARL 4-MINI-FLAT |
2,407 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 1mA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 50 mA | 1V | -30°C ~ 100°C | Surface Mount |
|
PC364NJ0000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,964 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC365NJ0000FOPTOISO 3.75KV DARL 4-MINI-FLAT |
3,599 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 600% @ 500µA | - | - | 60µs, 53µs | DC | Darlington | 35V | 80mA | 1.2V | 10 mA | 1V | -30°C ~ 100°C | Surface Mount |
|
PC357NJ0000FOPTOISO 3.75KV TRANSISTOR 4BESOP |
2,300 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC357N3J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,852 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC367N2J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
3,536 | 1.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|

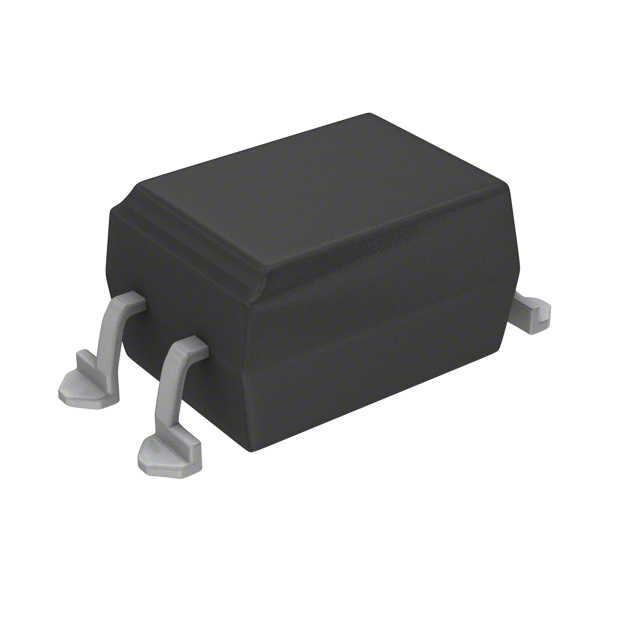

PC81710NIP1BOPTOISOLATOR 5KV TRANS 4SMD |
2,707 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 500µA | 600% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC3H710NIP1HOPTOISOLATOR TRANSISTOR SMD |
2,513 | 1.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PC3H71 | Active | 1 | 2500Vrms | 100% @ 500µA | 700% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 500µA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC452J00000FOPTOISOLATOR 3.75KV DARL 4SMD |
3,893 | 1.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 1000% @ 1mA | - | - | 100µs, 20µs | DC | Darlington | 350V | 150mA | 1.2V | 50 mA | 1.2V | -30°C ~ 100°C | Surface Mount |
|
PC457L0YIP0FOPTOISO 3.75KV TRANSISTOR 6-SMD |
3,156 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OPIC™ | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
PC457L0NIP0FOPTOISO 3.75KV TRANSISTOR 5-SMD |
3,608 | 2.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OPIC™ | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 400ns | - | DC | Transistor | 20V | 8mA | 1.7V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
PC12311NSZ1BOPTOISO 5KV TRANS OUTPUT 4DIP |
2,489 | 0.00 |
RFQ |
Datasheet |
Tube | PC1231xNSZ1B | Active | 1 | 5000Vrms | 50% @ 500µA | 400% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
PC357N1J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
3,133 | 0.80 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC357N2J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,861 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC851XNNIP1HOPTOISOLATOR 5KV TRANS SMD |
3,067 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | - | - | - | - | 4µs, 5µs | DC | Transistor | 350V | 50mA | 1.2V | 50 mA | 300mV | -25°C ~ 100°C | Surface Mount |
|
|
PC354NJ0000FOPTOISOLATOR 3.75KV TRANS 4-SMD |
3,284 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 20% @ 1mA | 400% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC354N1J000FOPTOISOLATOR 3.75KV TRANS 4-SMD |
2,486 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 1mA | 150% @ 1mA | - | 4µs, 3µs | AC, DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC357N4J000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
3,792 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
PC367NJ0000FOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,594 | 1.12 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 500µA | 500% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
PC3H712NIP1HOPTOISOLATOR TRANSISTOR SMD |
2,253 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PC3H71 | Active | 1 | 2500Vrms | 100% @ 500µA | 700% @ 500µA | - | 4µs, 3µs | DC | Transistor | 80V | 500µA | 1.2V | 10 mA | 200mV | -30°C ~ 100°C | Surface Mount |
