| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

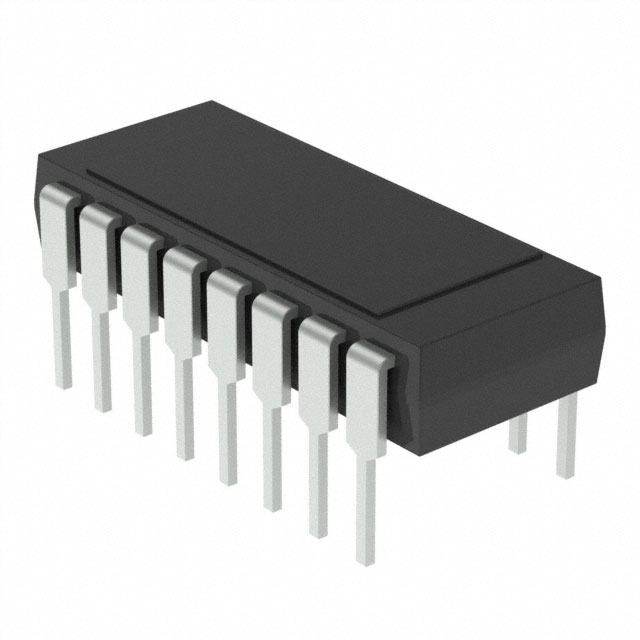

5962-9800201KEAOPTOISO 1.5KV 4CH DARLNG 16-DIP |
2,663 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
|
5962-9800201KECOPTOISO 1.5KV 4CH DARLNG 16-DIP |
2,203 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
5962-9800201KXAOPTOISO 1.5KV 4CH DARL 16-SMD GW |
3,028 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
5962-9800201KYAOPTOISO 1.5KV 4CH DARL 16-SMD BJ |
2,528 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
|
5962-9800201KYCOPTOISO 1.5KV 4CH DARL 16-SMD BJ |
3,558 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
|
5962-9800201KZAOPTOISO 1.5KV 4CH DARL 16-SMD CC |
2,204 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
|
5962-9800201KZCOPTOISO 1.5KV 4CH DARL 16-SMD CC |
2,347 | 641.50 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
ACPL-177KLOPTOISO 1.5KV 4CH DARLNG 16-CDIP |
3,124 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
|
ACPL-177KL-100OPTOISO 1.5KV 4CH DARL 16-DIP BJ |
2,577 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
ACPL-177KL-200OPTOISO 1.5KV 4CH DARLNG 16-CDIP |
3,515 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
|
ACPL-177KL-300OPTOISO 1.5KV 4CH DARL 16-DIP GW |
3,844 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
5962-0822703KEAOPTOISO 1.5KV 4CH DARLNG 16-DIP |
2,674 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
|
5962-0822703KECOPTOISO 1.5KV 4CH DARLNG 16-DIP |
3,840 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
5962-0822703KTAOPTOISO 1.5KV 4CH DARL 8-SMD GW |
3,179 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
5962-0822703KUAOPTOISO 1.5KV 4CH DARL 16-SMD BJ |
2,373 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Surface Mount |
|
|
5962-0822703KUCOPTOISO 1.5KV 4CH DARL 16-SMD BJ |
2,329 | 645.18 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Surface Mount |
|
HCPL-573KOPTOISO 1.5KV 2CH DARLNG 8-DIP |
2,524 | 645.26 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
|
HCPL-573K-100OPTOISO 1.5KV 2CH DARL 8-SMD BJ |
3,632 | 645.26 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount, Butt Joint |
|
|
HCPL-573K#200OPTOISO 1.5KV 2CH DARLNG 8-DIP |
2,590 | 645.26 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
|
HCPL-573K#300OPTOISO 1.5KV 2CH DARL 8-DIP GW |
2,053 | 645.26 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
