| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACPL-827-00CEOPTOISOLATOR 5KV 2CH TRANS 8DIP |
2,344 | 1.05 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
HCPL-817-300EOPTOISOLATOR 5KV TRANSISTOR 4SMD |
2,097 | 0.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
4N35-300EOPTOISO 3.55KV TRANS W/BASE 6SMD |
2,419 | 0.69 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3550Vrms | 100% @ 10mA | - | - | 3µs, 3µs | DC | Transistor with Base | 30V | 100mA | 1.2V | 60 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
CNY17-2-000EOPTOISO 5KV TRANS W/BASE 6DIP |
2,265 | 0.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 63% @ 10mA | 125% @ 10mA | - | 5µs, 5µs | DC | Transistor with Base | 70V | 150mA | 1.4V | 60 mA | 300mV | -55°C ~ 100°C | Through Hole |
|
HCPL-0534-000EOPTOISO 3.75KV 2CH TRANS 8SOIC |
404 | 6.97 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 15% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-0454-500EOPTOISOLATOR 3.75KV TRANS 8-SO |
2,442 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 21% @ 16mA | - | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-827-300EOPTOISOLATOR 5KV 2CH TRANS 8SMD |
2,042 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
|
ACPL-827-30BEOPTOISOLATOR 5KV 2CH TRANS 8SMD |
384 | 1.03 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Surface Mount |
|
ACPL-W454-500EOPTOISOLATOR 5KV TRANS 6SOIC |
2,285 | 3.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
6N138-000EOPTOISO 3.75KV DARL W/BASE 8DIP |
2,886 | 1.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 300% @ 1.6mA | 2600% @ 1.6mA | 1.6µs, 10µs | - | DC | Darlington with Base | 7V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCPL-0500-000EOPTOISO 3.75KV TRANS W/BASE 8SO |
2,735 | 2.00 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 5% @ 16mA | - | 200ns, 1.3µs | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCNW139-300EOPTOISO 5KV DARL W/BASE 8SMD |
979 | 2.41 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 12mA | - | 11µs, 11µs | - | DC | Darlington with Base | 18V | 60mA | 1.45V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|

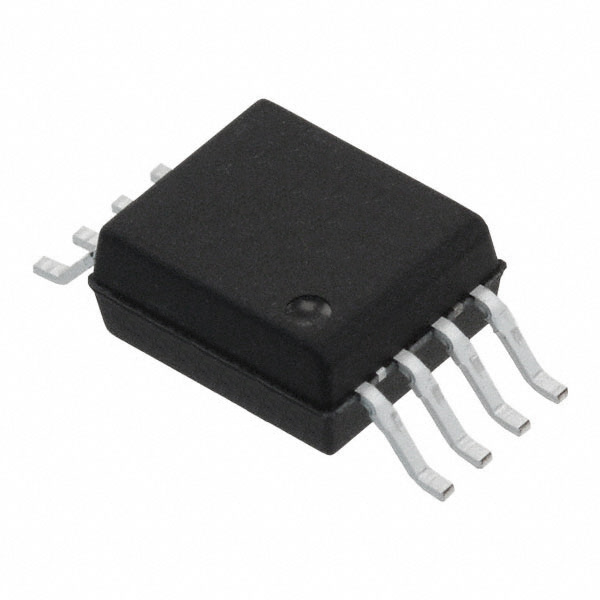

ACPL-K54L-500EOPTOISOLATOR 5KV 2CH TRANS 8-SO |
782 | 5.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
HCPL-4504-000EOPTOISO 3.75KV TRANSISTOR 8DIP |
2,873 | 2.70 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
HCPL-4504-300EOPTOISO 3.75KV TRANSISTOR 8DIPGW |
2,593 | 2.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
HCPL-M701-000EOPTOISO 3.75KV DARLINGTON 6SOIC |
2,490 | 3.16 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 500ns, 1µs | - | DC | Darlington | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-M454-000EOPTOISO 3.75KV TRANSISTOR 6SOIC |
2,393 | 3.29 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 25% @ 16mA | 60% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-053L-000EOPTOISOLTR 3.75KV 2CH TRANS 8-SO |
570 | 4.57 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 7V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
ACPL-K43T-000EOPTOISOLATOR 5KV TRANSISTOR |
3,539 | 4.70 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100, R²Coupler™ | Active | 1 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
ACPL-M43U-000EOPTOISOLATOR 3.75KV TRANS 5-SO |
2,793 | 5.82 |
RFQ |
Datasheet |
Tube | R²Coupler™ | Active | 1 | 3750Vrms | 32% @ 10mA | 80% @ 10mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
