| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

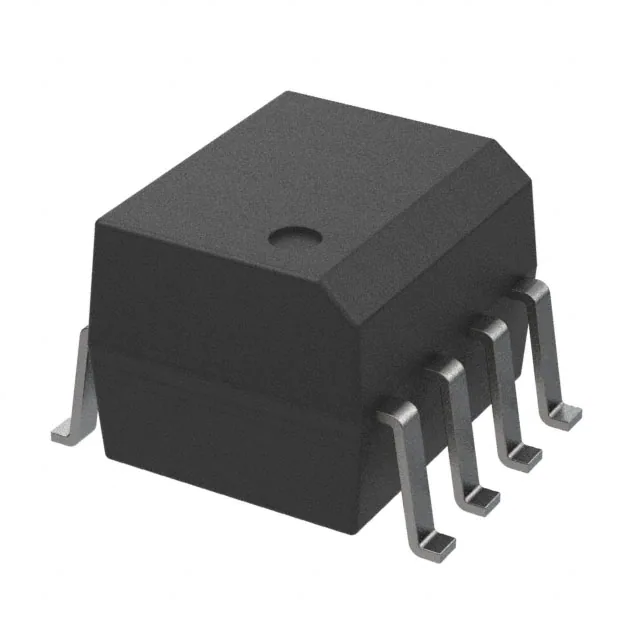

MOCD217R2VMOPTOISO 2.5KV 2CH TRANS 8SOIC |
2,391 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
H11G2TVMOPTOISO 4.17KV DARL W/BASE 6DIP |
2,186 | 0.45 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 5µs, 100µs | - | DC | Darlington with Base | 80V | - | 1.3V | 60 mA | 1V | -40°C ~ 100°C | Through Hole |
|
FOD2712AVOPTOISO 2.5KV TRANSISTOR 8SOIC |
2,460 | 0.45 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Surface Mount |
|
H11AV1SR2VMOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,509 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 100% @ 10mA | 300% @ 10mA | 15µs, 15µs (Max) | - | DC | Transistor with Base | 70V | - | 1.18V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
H11AG1VMOPTOISO 4.17KV TRANS W/BASE 6DIP |
3,906 | 0.48 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 1mA | - | 5µs, 5µs | - | DC | Transistor with Base | 30V | 50mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
FOD2711ATVOPTOISOLATOR 5KV TRANSISTOR 8DIP |
2,214 | 0.49 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Through Hole |
|
FOD2711AVOPTOISOLATOR 5KV TRANSISTOR 8DIP |
3,654 | 0.49 |
RFQ |
Datasheet |
Tube,Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Through Hole |
|
MCT623SOPTOISO 5KV 2CH TRANSISTOR 8SMD |
2,108 | 0.51 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 2 | 5000Vrms | 100% @ 5mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
H11AG1TVMOPTOISO 4.17KV TRANS W/BASE 6DIP |
2,202 | 0.51 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 1mA | - | 5µs, 5µs | - | DC | Transistor with Base | 30V | 50mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
|
H11G2VMOPTOISO 4.17KV DARL W/BASE 6DIP |
2,685 | 0.52 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 5µs, 100µs | - | DC | Darlington with Base | 80V | - | 1.3V | 60 mA | 1V | -40°C ~ 100°C | Through Hole |
|
|
FOD2742BVOPTOISO 2.5KV TRANSISTOR 8SOIC |
3,635 | 0.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 70V | 50mA | 1.2V | - | 400mV | -25°C ~ 85°C | Surface Mount |
|
|
FOD2742BOPTOISO 2.5KV TRANSISTOR 8SOIC |
2,938 | 1.59 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 70V | 50mA | 1.2V | - | 400mV | -25°C ~ 85°C | Surface Mount |
|
MOCD207VMOPTOISO 2.5KV 2CH TRANS 8SOIC |
3,954 | 0.56 |
RFQ |
Datasheet |
Tube,Tube | - | Active | 2 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 70V | 150mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MCT6WOPTOISOLATOR 5KV 2CH TRANS 8-DIP |
3,211 | 0.57 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 2 | 5000Vrms | 20% @ 10mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
FODM8801BR2VOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,398 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptoHit™ | Active | 1 | 3750Vrms | 130% @ 1mA | 260% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | -40°C ~ 125°C | Surface Mount |
|
|
MCT623SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
2,891 | 0.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 100% @ 5mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
FODM8801BVOPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,685 | 1.75 |
RFQ |
Datasheet |
Tube,Tube | OptoHit™ | Active | 1 | 3750Vrms | 130% @ 1mA | 260% @ 1mA | 6µs, 6µs | 5µs, 5.5µs | DC | Transistor | 75V | 30mA | 1.35V | 20 mA | 400mV | -40°C ~ 125°C | Surface Mount |
|
|
6N135SMOPTOISO 5KV TRANS W/BASE 8SMD |
2,380 | 0.61 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 7% @ 16mA | 50% @ 16mA | 230ns, 450ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -40°C ~ 100°C | Surface Mount |
|
MCT5211TVMOPTOISO 4.17KV TRANS W/BASE 6DIP |
3,771 | 0.62 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 4170Vrms | 150% @ 1.6mA | - | 14µs, 2.5µs | - | DC | Transistor with Base | 30V | 150mA | 1.25V | 50 mA | 400mV | -40°C ~ 100°C | Through Hole |
|
|
FOD2711AOPTOISOLATOR 5KV TRANSISTOR 8DIP |
3,372 | 0.62 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | - | - | DC | Transistor | 30V | 50mA | 1.5V (Max) | - | 400mV | -40°C ~ 85°C | Through Hole |
