| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

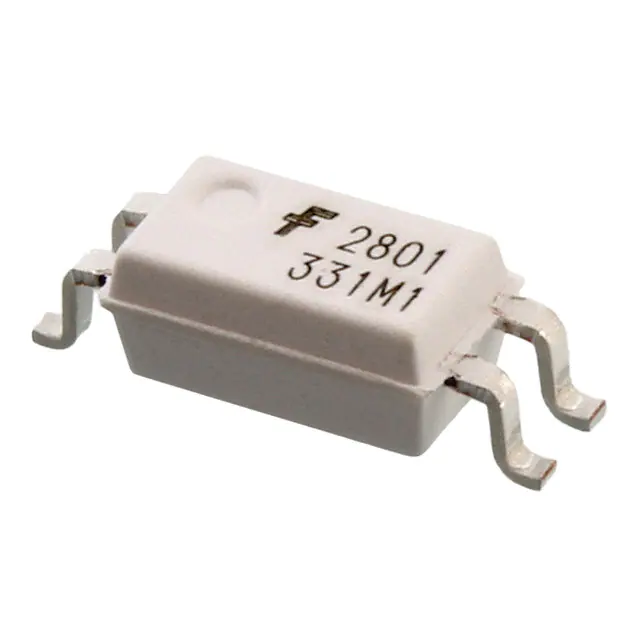

HMHA2801OPTOISO 3.75KV TRANSISTOR 4SMD |
2,018 | 0.75 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 3750Vrms | 80% @ 5mA | 600% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
MOC213MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
3,541 | 0.77 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
4N25SMOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,154 | 0.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 20% @ 10mA | - | 2µs, 2µs | - | DC | Transistor with Base | 30V | - | 1.18V | 60 mA | 500mV | -55°C ~ 100°C | Surface Mount |
|
MOC8050MOPTOISO 4.17KV DARLINGTON 6DIP |
2,896 | 0.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 500% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 80V | 150mA | 1.18V | 60 mA | - | -40°C ~ 100°C | Through Hole |
|
|
MOC217MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
2,954 | 0.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 2500Vrms | 100% @ 10mA | - | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.07V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
CNY172SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,807 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 63% @ 10mA | 125% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor with Base | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
HMHA2801AR2OPTOISO 3.75KV TRANS 4-MINI-FLAT |
2,896 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 3µs, 3µs | DC | Transistor | 80V | 50mA | 1.3V (Max) | 50 mA | 300mV | -55°C ~ 100°C | Surface Mount |
|
|
CNY17F3SR2MOPTOISO 4.17KV TRANS 6SMD |
3,292 | 0.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 100% @ 10mA | 200% @ 10mA | 2µs, 3µs | 4µs, 3.5µs (Max) | DC | Transistor | 70V | 50mA | 1.35V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
H11AA1SR2VMOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,425 | 1.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 20% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
H11AV1SR2MOPTOISO 4.17KV TRANS W/BASE 6SMD |
2,187 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 100% @ 10mA | 300% @ 10mA | 15µs, 15µs (Max) | - | DC | Transistor with Base | 70V | - | 1.18V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MOC8050SR2MOPTOISO 4.17KV DARLINGTON 6SMD |
2,827 | 1.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 4170Vrms | 500% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 80V | 150mA | 1.18V | 60 mA | - | -40°C ~ 100°C | Surface Mount |
|
MCT61SDOPTOISO 5KV 2CH TRANSISTOR 8SMD |
3,572 | 1.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 50% @ 5mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
|
|
MOC223MOPTOISO 2.5KV DARL W/BASE 8SOIC |
3,381 | 1.05 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | 1 | 2500Vrms | 500% @ 1mA | - | 10µs, 125µs | 8µs, 110µs | DC | Darlington with Base | 30V | 150mA | 1.08V | 60 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
|
H11G2SMOPTOISO 4.17KV DARL W/BASE 6SMD |
2,188 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 5µs, 100µs | - | DC | Darlington with Base | 80V | - | 1.3V | 60 mA | 1V | -40°C ~ 100°C | Surface Mount |
|
H11G1TVMOPTOISO 4.17KV DARL W/BASE 6DIP |
2,797 | 1.11 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 5µs, 100µs | - | DC | Darlington with Base | 100V | - | 1.3V | 60 mA | 1V | -40°C ~ 100°C | Through Hole |
|
|
MOC8021MOPTOISO 4.17KV DARLINGTON 6DIP |
2,262 | 0.95 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 1000% @ 10mA | - | 8.5µs, 95µs | - | DC | Darlington | 50V | 150mA | 1.18V | 60 mA | - | -40°C ~ 100°C | Through Hole |
|
|
H11AA4SMOPTOISO 4.17KV TRANS W/BASE 6SOP |
3,933 | 0.98 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 4170Vrms | 100% @ 10mA | - | - | - | AC, DC | Transistor with Base | 30V | 50mA | 1.17V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MOC207MOPTOISO 2.5KV TRANS W/BASE 8SOIC |
2,099 | 1.04 |
RFQ |
Datasheet |
Box | - | Active | 1 | 2500Vrms | 100% @ 10mA | 200% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor with Base | 30V | 150mA | 1.15V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MOCD208MOPTOISO 2.5KV 2CH TRANS 8SOIC |
2,164 | 1.06 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2500Vrms | 40% @ 10mA | 125% @ 10mA | 7.5µs, 5.7µs | 3.2µs, 4.7µs | DC | Transistor | 70V | 150mA | 1.25V | 60 mA | 400mV | -40°C ~ 100°C | Surface Mount |
|
|
MCT62SOPTOISO 5KV 2CH TRANSISTOR 8SMD |
3,493 | 1.07 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 5000Vrms | 100% @ 5mA | - | 2.4µs, 2.4µs | - | DC | Transistor | 30V | 30mA | 1.2V | 60 mA | 400mV | -55°C ~ 100°C | Surface Mount |
