| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
;;4.jpg)
|
QTH217T1HALF PITCH MINI-FLAT PACKAGE PHO |
3,397 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.24V | 50 mA | 200mV | -55°C ~ 125°C | Surface Mount |
|
|
QTH214T1HALF PITCH MINI-FLAT PACKAGE PHO |
2,935 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 3750Vrms | 20% @ 1mA | 300% @ 1mA | - | 6µs, 8µs | AC, DC | Transistor | 80V | 50mA | 1.24V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
QT8514 PIN HIGH POWER PHOTOTRANSISTOR |
2,407 | 1.22 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 350V | 100mA | 1.2V | 80 mA | 400mV | -55°C ~ 100°C | Through Hole |
|
|
Q817CDIP 4PIN DC INPUT PHOTOTRANSISTO |
780 | 0.50 |
RFQ |
Datasheet |
Tube | Q817 | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 6µs, 8µs | DC | Transistor | 35V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Through Hole |
|
QTM357T1MINI-FLAT PACKAGE PHOTOTRANSISTO |
2,142 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 3750Vrms | 50% @ 1mA | 600% @ 1mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.24V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
Q817CST1SMD 4PIN DC INPUT PHOTOTRANSISTO |
2,089 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q817 | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 6µs, 8µs | DC | Transistor | 35V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
QTM354T1MINI-FLAT PACKAGE PHOTOTRANSISTO |
2,813 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 3750Vrms | 20% @ 1mA | 300% @ 1mA | - | 6µs, 8µs | AC, DC | Transistor | 80V | 50mA | 1.24V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
Q817BDIP 4PIN DC INPUT PHOTOTRANSISTO |
3,118 | 0.50 |
RFQ |
Datasheet |
Tube | Q817 | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 6µs, 8µs | DC | Transistor | 35V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Through Hole |
|
|
Q817BST1SMD 4PIN DC INPUT PHOTOTRANSISTO |
2,721 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Q817 | Active | 1 | 5000Vrms | 130% @ 5mA | 260% @ 5mA | - | 6µs, 8µs | DC | Transistor | 35V | 50mA | 1.24V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
QT1010T1-WLONG CREEPAGE MINI-FLAT PACKAGE |
3,188 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | 4.8µs, 4.2µs | 2.8µs, 4µs | DC | Transistor | 80V | 50mA | 1.42V | 50 mA | 400mV | -55°C ~ 125°C | Surface Mount |
|
6N1358 PIN 1 MBITS HIGH SPEED PHOTOTR |
3,085 | 2.13 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 7% @ 16mA | 50% @ 16mA | 350ns, 350ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
QT45028 PIN 1 MBITS HIGH SPEED PHOTOTR |
3,559 | 2.84 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 350ns, 350ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
QT45038 PIN 1 MBITS HIGH SPEED PHOTOTR |
2,152 | 2.84 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 350ns, 350ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
QT45048 PIN 1 MBITS HIGH SPEED PHOTOTR |
3,695 | 3.06 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 25% @ 16mA | 60% @ 16mA | 240ns, 210ns | - | DC | Transistor | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
QT1013T1-WLONG CREEPAGE MINI-FLAT PACKAGE |
2,985 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 4.8µs, 4.2µs | 2.8µs, 4µs | DC | Transistor | 80V | 50mA | 1.42V | 50 mA | 400mV | -55°C ~ 125°C | Surface Mount |
|
|
QT8524 PIN HIGH POWER PHOTODARLINGTON |
2,488 | 1.42 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 1000% @ 1mA | 15000% @ 1mA | - | 250µs, 95µs (Max) | DC | Darlington | 350V | 150mA | 1.2V | 80 mA | 1.2V | -55°C ~ 100°C | Through Hole |
|
|
6N1368 PIN 1 MBITS HIGH SPEED PHOTOTR |
3,494 | 2.13 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 19% @ 16mA | 50% @ 16mA | 350ns, 350ns | - | DC | Transistor with Base | 20V | 8mA | 1.45V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
6N1398 PIN LOW INPUT CURRENT PHOTODAR |
3,700 | 3.06 |
RFQ |
Datasheet |
Tube | Optocoupler | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 4.8µs, 15µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
|
QTM415T1MINI-FLAT PACKAGE PHOTODARLINGTO |
3,201 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Optocoupler | Active | 1 | 3750Vrms | 600% @ 1mA | - | - | 300µs, 250µs (Max) | DC | Darlington | 35V | 80mA | 1.4V | 50 mA | 1V | -55°C ~ 110°C | Surface Mount |
|

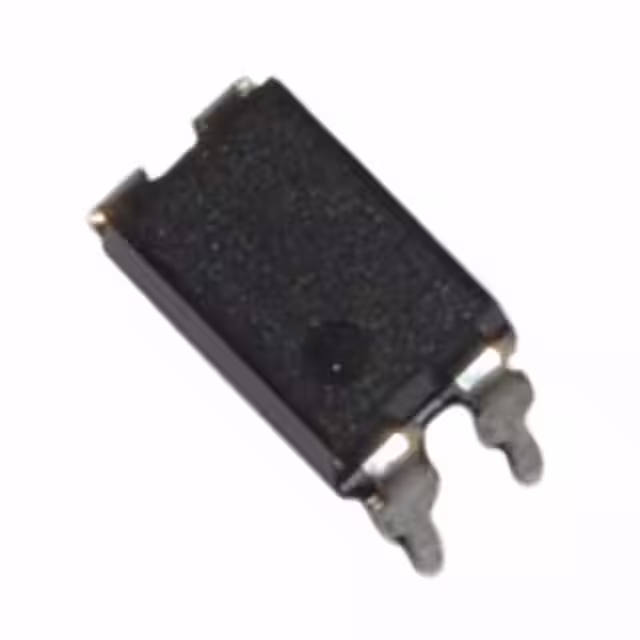

Q817OPTOCPLR DC-INPUT 1.2V 4DIP |
3,218 | 0.31 |
RFQ |
Datasheet |
Tube | Q817 | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Through Hole |
