| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
-G.jpg)
|

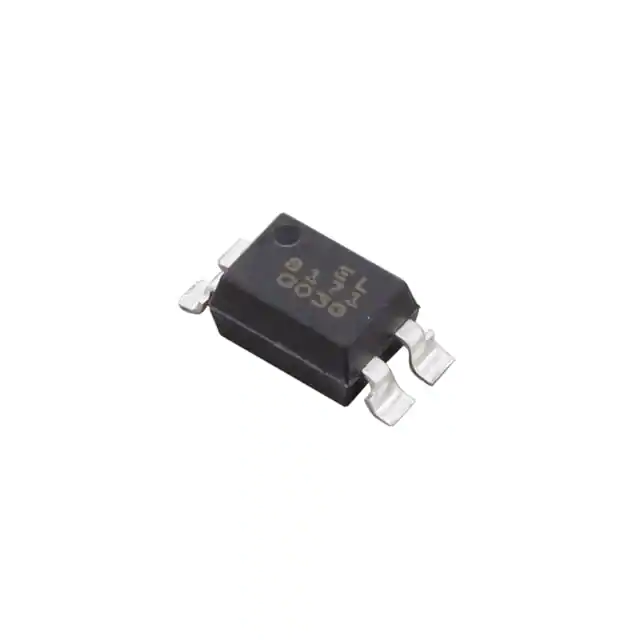

EL8171S1(TU)-GOPTOISOLTR |
3,226 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EL817-G | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|

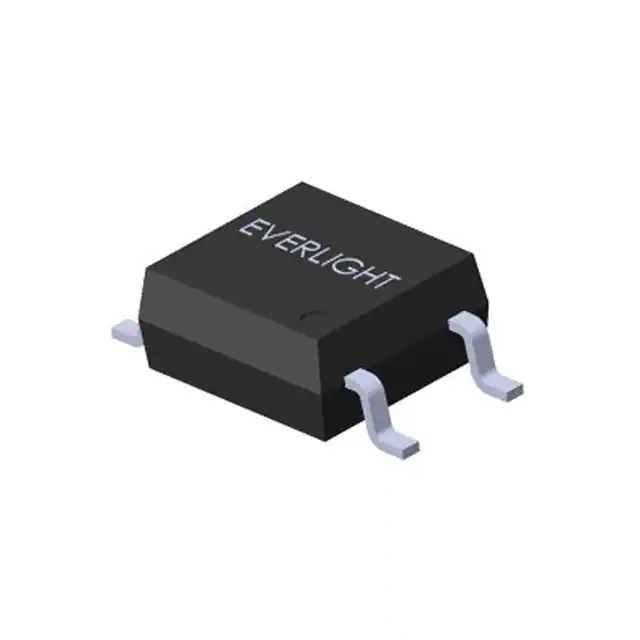

EL357N(C)(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SOP |
2,452 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
EL1017(TA)-VGOPTOISOLTR 5KV TRANSISTOR 4-SOP |
2,678 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | 4µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.45V | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|

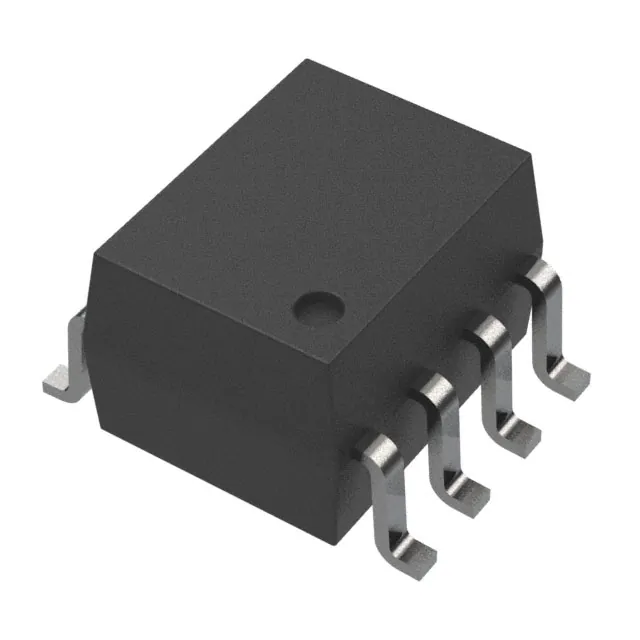

EL0501(TA)OPTOISO 3.75KV TRANS W/BASE 8SOP |
383 | 1.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 800ns, 800ns (Max) | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
6N139S(TA)OPTOISO 5KV DARL W/BASE 8SMD |
2,855 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 500% @ 1.6mA | - | 200ns, 1.7µs | - | DC | Darlington with Base | 18V | 60mA | 1.3V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
EL3H7(A)-GOPTOISOLATOR 3.75KV TRANS 4-SSOP |
247 | 0.60 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
.JPG)
|
CNY17-3S(TA)OPTOISO 5KV TRANS W/BASE 6SMD |
825 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 10µs, 9µs | 6µs, 8µs | DC | Transistor with Base | 80V | - | 1.65V (Max) | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|
|
EL827S1(TA)OPTOISOLATOR 5KV 2CH TRANS 8-SMD |
145 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(B)(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
3,024 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
3,078 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(C)(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,037 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
ELD207(TA)-VOPTOISO 3.75KV 2CH TRANS 8-SOP |
3,512 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 100% @ 10mA | 200% @ 10mA | 5µs, 4µs | 1.6µs, 2.2µs | DC | Transistor | 80V | - | 1.2V | 60 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|

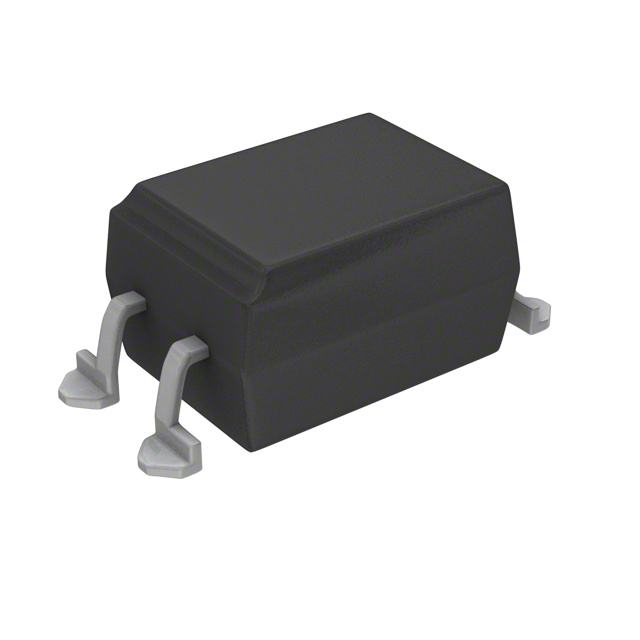

EL814S1(A)(TA)-VOPTOISOLTR 5KV TRANSISTOR 4-SMD |
2,326 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 50% @ 1mA | 150% @ 1mA | - | 7µs, 11µs | AC, DC | Transistor | 80V | - | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
EL357N-GOPTOISOLATOR 3.75KV TRANS 4-SOP |
3,896 | 0.50 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 50% @ 5mA | 600% @ 5mA | - | 3µs, 4µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
CNY17-3S(TA)-VOPTOISO 5KV TRANS W/BASE 6SMD |
2,056 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 100% @ 10mA | 200% @ 10mA | 10µs, 9µs | 6µs, 8µs | DC | Transistor with Base | 80V | - | 1.65V (Max) | 60 mA | 300mV | -55°C ~ 110°C | Surface Mount |
|

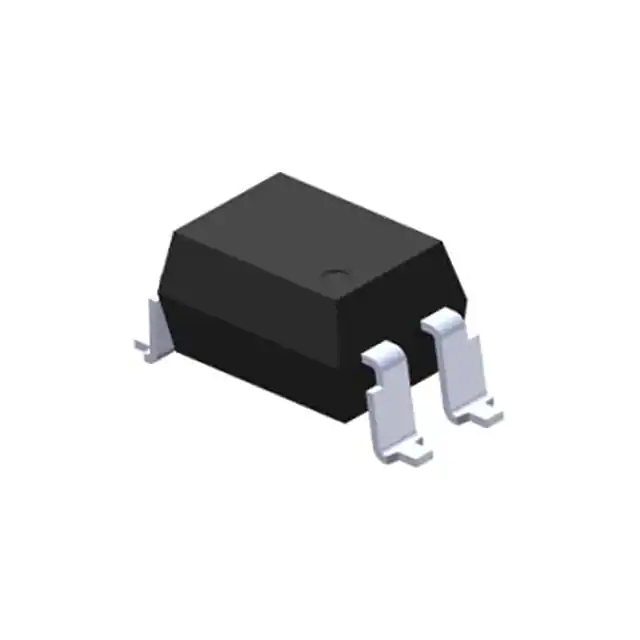

EL817(S2)(A)(TU)-GOPTOISOLATOR 5KV TRANS 4-SMD |
2,996 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 50% @ 5mA | 600% @ 5mA | - | 6µs, 8µs | DC | Transistor | 80V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(A)(TA)-GOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,258 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(F)(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,302 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 150% @ 5mA | 300% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL817S1(A)(TU)-VOPTOISOLTR 5KV TRANSISTOR 4-SMD |
2,735 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 5000Vrms | 80% @ 5mA | 160% @ 5mA | - | 4µs, 3µs | DC | Transistor | 35V | 50mA | 1.2V | 60 mA | 200mV | -55°C ~ 110°C | Surface Mount |
|
|
EL3H7(A)(TA)-VGOPTOISOLATOR 3.75KV TRANS 4-SSOP |
2,380 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 3750Vrms | 80% @ 5mA | 160% @ 5mA | - | 5µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 110°C | Surface Mount |
