| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VOW2611-X017TOPTOISO 5.3KV OPN COLLECTOR 8SMD |
2,660 | 3.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|

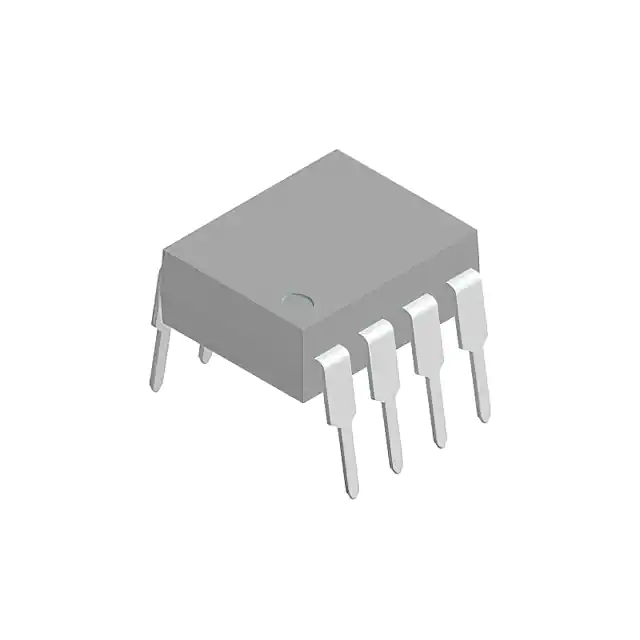

VOW137-X001WIDEBODY, HIGH ISOLATION, HIGH S |
2,624 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5300Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.65V | 20mA | 10V ~ 30V | -40°C ~ 100°C | Through Hole |
|
VOH1016AGOPTOISO 5KV OPEN COLLECTOR 6-DIP |
3,015 | 0.37 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | -40°C ~ 100°C | Through Hole |
|
|
VOH1016AB-T2OPTOISO 5KV OPEN COLLECTOR 6-SMD |
2,864 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | -40°C ~ 100°C | Surface Mount |
|
|
VOH1016AB-VT2OPTOISO 5KV OPEN COLLECTOR 6-SMD |
2,953 | 0.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 2MHz | 2µs, 1.2µs | 50ns, 40ns | 1.1V | 50mA | 16V | -40°C ~ 100°C | Surface Mount |
|
|
VO2601-X006OPTOISO 5.3KV OPEN DRAIN 8DIP |
3,322 | 0.78 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
VO2611-X006OPTOISO 5.3KV OPEN DRAIN 8DIP |
3,620 | 0.85 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5300Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
VO2611-X016OPTOISO 5.3KV OPEN DRAIN 8DIP |
2,124 | 0.88 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1/0 | 5300Vrms | 15kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
SFH6747TOPTOISO 3KV OPEN DRAIN 8SOIC |
3,861 | 1.16 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 3000Vrms | 10kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
VO2631-X006OPTOISO 5.3KV 2CH OPEN DRN 8DIP |
2,813 | 1.26 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 2/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.42V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
VOW2611-X001WIDEBODY, HIGH ISOLATION, HIGH S |
2,377 | 1.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 1 | 1/0 | 5300Vrms | 25kV/µs | DC | Open Collector | 50 mA | 10MBd | 100ns, 100ns | 14ns, 7ns | 1.65V | 20mA | 10V ~ 30V | -40°C ~ 100°C | Through Hole |
|
|
SFH6756TOPTOISO 4KV 2CH OPEN DRAIN 8SOIC |
2,654 | 1.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | 2 | 2/0 | 4000Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
VO2601-X016OPTOISO 5.3KV OPEN DRAIN 8DIP |
2,323 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | 1/0 | 5300Vrms | 5kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 20mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
VO2630-X006OPTOISO 5.3KV 2CH OPEN DRN 8DIP |
2,608 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Open Drain | 50 mA | 10MBd | 75ns, 75ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
SFH6752-X007TOPTOISO 5.3KV 2CH OPEN DRN 8SMD |
2,073 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 2 | 2/0 | 5300Vrms | 10kV/µs | DC | Open Drain | 50 mA | 10MBd | 100ns, 100ns | 23ns, 7ns | 1.4V | 15mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
|
SFH6700-X009TOPTOISO 5.3KV TRI-STATE 8SMD |
2,540 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Tri-State | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
SFH6701-X009TOPTOISO 5.3KV PUSH PULL 8SMD |
2,482 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 | 1/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
SFH6720TOPTOISO 4KV PUSH PULL 8SOIC |
3,123 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 1 | 1/0 | 4000Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
SFH6731OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
2,260 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 2/0 | 5300Vrms | 1kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | -40°C ~ 85°C | Through Hole |
|
|
SFH6732OPTOISO 5.3KV 2CH PUSH PULL 8DIP |
3,931 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | 2 | 2/0 | 5300Vrms | 5kV/µs, 10kV/µs | DC | Push-Pull, Totem Pole | 25 mA | 5MBd | 300ns, 300ns | 40ns, 10ns | 1.6V | 10mA | 4.5V ~ 15V | -40°C ~ 85°C | Through Hole |
