| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Inputs-Side1/Side2 | Voltage-Isolation | CommonModeTransientImmunity(Min) | InputType | OutputType | Current-Output/Channel | DataRate | PropagationDelaytpLH/tpHL(Max) | Rise/FallTime(Typ) | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-Supply | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCPL2631WVLOGIC IC OUTPUT OPTOCOUPLER, 2-E |
237 | 1.65 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
H11N1TVMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
174 | 2.75 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Through Hole |
|
HCPL063910MBIT/S LOGIC DUAL CHANNEL HIGH |
201 | 2.87 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
6N137WVLOGIC IC OUTPUT OPTOCOUPLER |
2,714 | 0.60 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Through Hole |
|
6N137SVLOGIC IC OUTPUT OPTOCOUPLER |
2,877 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 2500Vrms | 10kV/µs (Typ) | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0600R1LOGIC IC OUTPUT OPTOCOUPLER |
2,172 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 3750Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
FOD8163SAC IN-DARLINGTON OUT OPTOCOUPLER |
2,654 | 0.18 |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 | - | 5000Vrms | - | AC, DC | Darlington | 80 mA | - | - | 60µs, 53µs | 1.2V | 50mA | - | -30°C ~ 100°C | Surface Mount |
|
|
HCPL0601R1LOGIC IC OUTPUT OPTOCOUPLER |
2,231 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | 1 | 1/0 | 3750Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.75V (Max) | 50mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
H11N2TVMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
2,638 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Through Hole |
|
H11L1SR2MLOGIC IC OUTPUT OPTOCOUPLER, 750 |
2,465 | 0.30 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
FOD817STRANSISTOR OUTPUT OPTOCOUPLER, 5 |
3,040 | 1.00 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

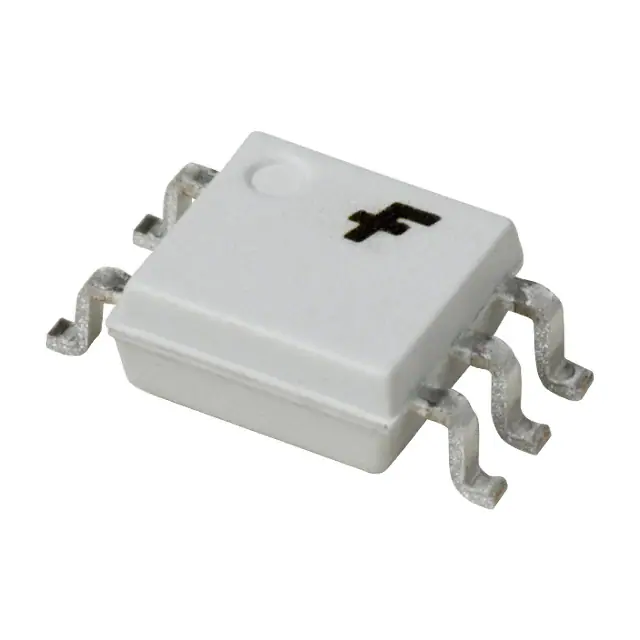

FODM8061VLOGIC IC OUTPUT OPTOCOUPLER |
3,802 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | DC | Open Collector, Schottky Clamped | 50 mA | 10Mbps | 80ns, 80ns | 20ns, 10ns | 1.45V | 50mA | 3V ~ 5.5V | -40°C ~ 110°C | Surface Mount |
|
|
H11L1SVMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
3,889 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
FOD8001R2HIGH NOISE IMMUNITY, 3.3V/5V LOG |
2,040 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 25Mbps | 40ns, 40ns | 6.5ns, 6.5ns | - | - | 3V ~ 3.6V, 4.5V ~ 5.5V | -40°C ~ 105°C | Surface Mount |
|
|
FOD0710R2HIGH CMR, 12.5MBIT/SEC LOGIC GAT |
2,534 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 3750Vrms | 20kV/µs | Logic | Push-Pull, Totem Pole | 10 mA | 12.5Mbps | 40ns, 40ns | 5ns, 4.5ns | - | - | 4.5V ~ 5.5V | -40°C ~ 100°C | Surface Mount |
|
HCPL2611MLOGIC IC OUTPUT OPTOCOUPLER, 500 |
2,550 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 5000Vrms | 10kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.45V | 50mA | 4.5V ~ 5.5V | -40°C ~ 100°C | Through Hole |
|
|
H11N1SR2VMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
3,149 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 5MHz | 330ns, 330ns | 7.5ns, 12ns | 1.4V | 30mA | 4V ~ 15V | -40°C ~ 85°C | Surface Mount |
|
|
H11L2VMLOGIC IC OUTPUT OPTOCOUPLER, 750 |
2,093 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 1/0 | 4170Vrms | - | DC | Open Collector | 50 mA | 1MHz | 4µs, 4µs | 100ns, 100ns | 1.2V | 30mA | 3V ~ 15V | -40°C ~ 85°C | Through Hole |
|
|
HCPL2631SVLOGIC IC OUTPUT OPTOCOUPLER, 2-E |
3,017 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 2500Vrms | 5kV/µs | DC | Open Collector | 50 mA | 10Mbps | 75ns, 75ns | 50ns, 12ns | 1.4V | 30mA | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
|
|
HCPL0639R210MBIT/S LOGIC DUAL CHANNEL HIGH |
2,809 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 2/0 | 3750Vrms | 25kV/µs | DC | Open Collector, Schottky Clamped | 15 mA | 10Mbps | 75ns, 75ns | 17ns, 5ns | 1.75V (Max) | - | 4.5V ~ 5.5V | -40°C ~ 85°C | Surface Mount |
