| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CableType | NumberofConductors | WireGauge | ConductorStrand | ConductorMaterial | Jacket(Insulation)Material | Jacket(Insulation)Diameter | ShieldType | Length | JacketColor | Ratings | Features | Voltage | OperatingTemperature | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83349E 0091000CBL 4COND 22AWG SHLD |
2,336 | 20681.83 |
RFQ |
Spool | MIL-W-16878/4 Type E | Active | Multi-Conductor | 4 | 22 AWG | 19/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.163 (4.14mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -65°C ~ 200°C | - | |
|
|
85103 3681000CBL 3COND 16AWG |
3,410 | 26261.24 |
RFQ |
Spool | - | Active | Multi-Conductor | 3 | 16 AWG | 19/29 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.223 (5.66mm) | - | 1000.0' (304.8m) | Clear | - | - | - | -60°C ~ 150°C | Audio, Control, Instrumentation | |
|
|
83606 0021000CBL 6COND 20AWG SHLD |
3,158 | 20689.39 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 6 | 20 AWG | 7/28 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP), Plenum | 0.207 (5.26mm) | Foil, Braid | 1000.0' (304.8m) | Red | UL Style CMP | - | 300 V | -70°C ~ 200°C | Audio, Control, Instrumentation | |
|
|
7129WS 003250CBL 25COND 16AWG HI FLEX SHLD |
3,282 | 20747.46 |
RFQ |
Spool | MachFlex™ | Active | Multi-Conductor | 25 | 16 AWG | 190/38 | Copper, Bare | Thermoplastic Elastomer (TPE) | 0.918 (23.32mm) | Braid | 250.0' (76.2m) | Orange | UL Style 20328 | Oil Resistant, UV Resistant | - | - | Industrial, Signal, Control | |
|
|
9876 060100011 FS PR #20 PP PVC |
2,476 | 20748.88 |
RFQ |
Spool | - | Active | Multi-Pair | 22 (11 Pair Twisted) | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.600 (15.24mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2919 | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | |
|
|
1474A 0107500CBL 2PR/18AWG 1COND/22AWG SHLD |
3,254 | 20805.92 |
RFQ |
Spool | - | Active | Multi-Pair | 5 (2.5 Pair) | 18 AWG, 22 AWG | 7/26; 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.410 (10.41mm) | Foil | 7500' (2286.0m) | Black | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | |
|
|
8791 0605000CBL 3COND 18AWG SHLD |
2,660 | 20859.75 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 3 | 18 AWG | 7/26 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.260 (6.60mm) | Spiral | 5000' (1524.0m) | Chrome | - | - | - | -20°C ~ 80°C | Audio, Control, Instrumentation | |
|
|
83335E 0091000CBL 3COND 20AWG SHLD |
3,944 | 20920.37 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 3 | 20 AWG | 19/32 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.168 (4.27mm) | Braid | 1000.0' (304.8m) | White | - | - | 600 V | -65°C ~ 200°C | - | |
|
|
85102 3681000CBL 2COND 16AWG |
2,583 | 20966.46 |
RFQ |
Spool | - | Active | Multi-Conductor | 2 | 16 AWG | 19/29 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.211 (5.36mm) | - | 1000.0' (304.8m) | Clear | - | - | - | -60°C ~ 150°C | Audio, Control, Instrumentation | |
|
|
1529A 0107500CBL 3PR/16AWG 1COND/22AWG SHLD |
3,085 | 21005.65 |
RFQ |
Spool | - | Active | Multi-Pair | 7 (3.5 Pair) | 18 AWG, 22 AWG | 7/26; 7/30 | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.420 (10.67mm) | Foil | 7500' (2286.0m) | Black | UL Style 2464 | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | |
|
|
9314 0605000CBL 1PR 14AWG SHLD |
3,696 | 21107.17 |
RFQ |
Spool | - | Active | Multi-Conductor | 2 (1 Pair) | 14 AWG | 42/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.325 (8.26mm) | Foil | 5000' (1524.0m) | Chrome | - | Drain Wire, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | |
|
|
8622 0601000CBL 12COND 16AWG |
2,628 | 21122.09 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 12 | 16 AWG | 19/29 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.627 (15.93mm) | - | 1000.0' (304.8m) | Chrome | - | - | 600 V | -20°C ~ 80°C | Audio, Control, Instrumentation | |
|

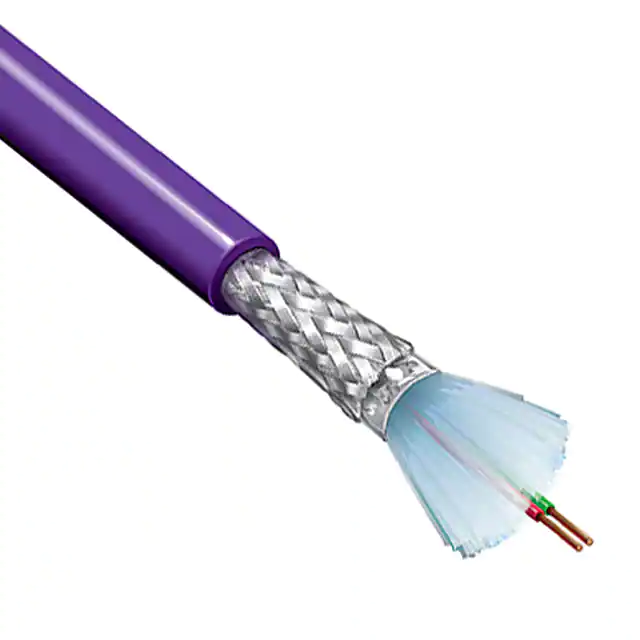

3079A 0075000CBL 1PR 22AWG SHLD |
2,386 | 21173.27 |
RFQ |
Spool | - | Active | Multi-Conductor | 2 (1 Pair) | 22 AWG | Solid | Copper, Bare | Poly-Vinyl Chloride (PVC) | 0.315 (8.00mm) | Foil, Braid | 5000' (1524.0m) | Violet | UL Style 20201 | Flame Retardant, UV Resistant | - | -30°C ~ 75°C | - | |
|
|
85240 3681000CBL 3COND 20AWG SHLD |
3,768 | 21182.90 |
RFQ |
Datasheet |
Spool | - | Active | Multi-Conductor | 3 | 20 AWG | 7/28 | Copper, Tinned | Ethylene Tetrafluoroethylene (ETFE) | 0.193 (4.90mm) | Foil | 1000.0' (304.8m) | Clear | - | Drain Wire | - | -60°C ~ 150°C | Audio, Control, Instrumentation |
|
|
83559 0021000CBL 9COND 22AWG SHLD |
2,454 | 21231.25 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 9 | 22 AWG | 7/30 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP), Plenum | 0.209 (5.31mm) | Foil, Braid | 1000.0' (304.8m) | Red | UL Style CMP | - | 300 V | -70°C ~ 200°C | Audio, Control, Instrumentation | |
|
|
9261 0601000CBL 12COND 20AWG SHLD |
2,422 | 21327.96 |
RFQ |
Datasheet |
Spool | - | Active | Multi-Conductor | 12 | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.396 (10.06mm) | Braid | 1000.0' (304.8m) | Chrome | UL Style 2464 | - | 300 V | -20°C ~ 80°C | Audio, Control, Instrumentation |
|
|
83704 0021000CBL 4COND 16AWG SHLD |
3,522 | 21391.98 |
RFQ |
Spool | Classics | Active | Multi-Conductor | 4 | 16 AWG | 19/29 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP), Plenum | 0.223 (5.66mm) | Foil, Braid | 1000.0' (304.8m) | Red | UL Style CMP | - | 300 V | -70°C ~ 200°C | Audio, Control, Instrumentation | |
|
|
9514 0605000CBL 4PR 22AWG SHLD |
3,702 | 21429.19 |
RFQ |
Spool | - | Active | Multi-Pair | 8 (4 Pair) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.356 (9.04mm) | Foil | 5000' (1524.0m) | Chrome | UL Style 2464 | Drain Wire, Flame Retardant, Rip Cord | 300 V | -30°C ~ 105°C | Instrumentation | |
|
|
8776 0601000CBL 15PR 22AWG SHLD |
2,348 | 21459.03 |
RFQ |
Spool | - | Active | Multi-Pair | 30 (15 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.548 (13.92mm) | Foil | 1000.0' (304.8m) | Chrome | UL Style 2919 | Drain Wire | - | -20°C ~ 80°C | Audio, Control, Instrumentation | |
|
|
88761 0025000CBL 1PR 22AWG SHLD |
2,751 | 21538.73 |
RFQ |
Datasheet |
Spool | Classics | Active | Multi-Conductor | 2 (1 Pair Twisted) | 22 AWG | 7/30 | Copper, Tinned | Fluorinated Ethylene-Propylene (FEP), Plenum | 0.116 (2.95mm) | Foil | 5000' (1524.0m) | Red | UL Style CMP | Drain Wire | 300 V | -70°C ~ 200°C | Audio, Control, Instrumentation |
