| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NLX1G11BMX1TCGIC GATE AND 1CH 3-INP 6ULLGA |
102,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX1G11CMX1TCGIC GATE AND 1CH 3-INP 6ULLGA |
33,000 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX1G332BMX1TCGIC GATE OR 1CH 3-INP 6ULLGA |
2,909 | 0.00 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount | |
|

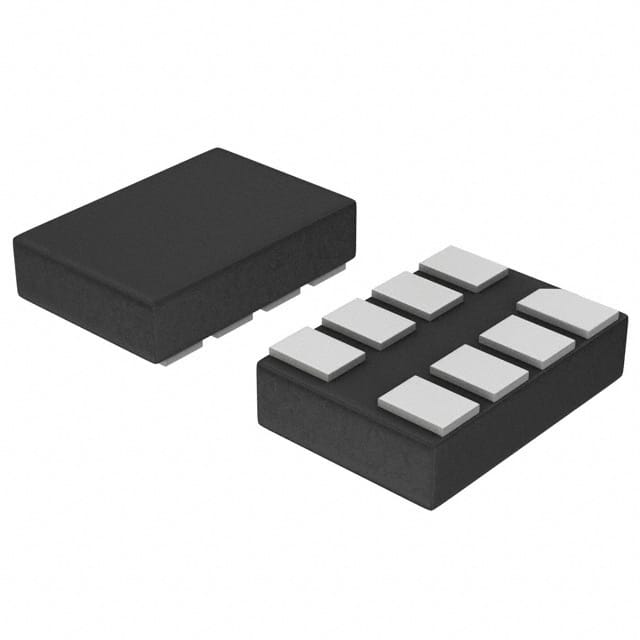

NLX2G00AMX1TCGIC GATE NAND 2CH 2-INP 8ULLGA |
2,574 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G00BMX1TCGIC GATE NAND 2CH 2-INP 8ULLGA |
4,975 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G00CMX1TCGIC GATE NAND 2CH 2-INP 8ULLGA |
8,698 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NAND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.6ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G02AMX1TCGIC GATE NOR 2CH 2-INP 8ULLGA |
6,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NOR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G02BMX1TCGIC GATE NOR 2CH 2-INP 8ULLGA |
6,000 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NOR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G02CMX1TCGIC GATE NOR 2CH 2-INP 8ULLGA |
2,980 | 0.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NOR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G32BMX1TCGIC GATE OR 2CH 2-INP 8ULLGA |
6,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
NLX2G32CMX1TCGIC GATE OR 2CH 2-INP 8ULLGA |
4,190 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
NLX2G08BMX1TCGIC GATE AND 2CH 2-INP 8UQFN |
9,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLU1G00CMX1TCGIC GATE NAND 1CH 2-INP 6ULLGA |
72,000 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | MiniGate™ | Obsolete | NAND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 1 µA | 8mA, 8mA | - | - | 7.9ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G08AMX1TCGIC GATE AND 2CH 2-INP 8UQFN |
5,970 | 0.07 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount | |
|
|
NLX2G08CMX1TCGIC GATE AND 2CH 2-INP 8UQFN |
6,000 | 0.10 |
RFQ |
Tape & Reel (TR),Bulk | - | Obsolete | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount | |
|
M74VHC1GT04DFT3GIC INVERTER 1CH 1-INP SC88A |
3,024 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | 74VHC | Obsolete | Inverter | 1 | 1 | - | 3V ~ 5.5V | 1 µA | 8mA, 8mA | 0.53V ~ 0.8V | 1.4V ~ 2V | 7.7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
MC74HC20ADTGIC GATE NAND 2CH 4-INP 14TSSOP |
16,320 | 0.24 |
RFQ |
Datasheet |
Bulk,Tube | 74HC | Obsolete | NAND Gate | 2 | 4 | - | 2V ~ 6V | 1 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 15ns @ 6V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
MC74HC30ADTGIC GATE NAND 1CH 8-INP 14TSSOP |
3,929 | 0.00 |
RFQ |
Tube | 74HC | Obsolete | NAND Gate | 1 | 8 | - | 2V ~ 6V | 2 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 30ns @ 6V, 50pF | -55°C ~ 125°C | Surface Mount | |
|
|
NLX1G10AMX1TCGIC GATE NAND 1CH 3-INP 6ULLGA |
28,875 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | NAND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 7ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount |
|
|
NLX2G32AMX1TCGIC GATE OR 2CH 2-INP 8ULLGA |
2,573 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | OR Gate | 2 | 2 | - | 1.65V ~ 5.5V | 1 µA | 32mA, 32mA | - | - | 3.7ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
