| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

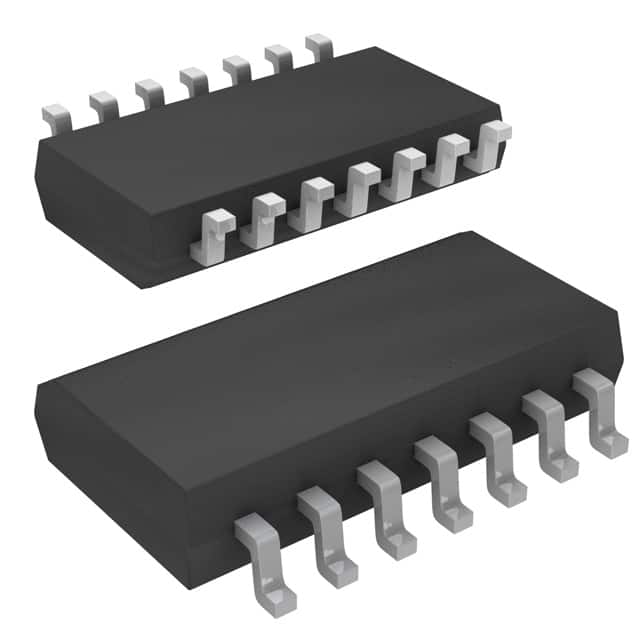

74LVQ08SJXIC GATE AND 4CH 2-INP 14SOP |
2,647 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVQ | Obsolete | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 9.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LVQ14SJIC INVERT SCHMITT 6CH 1-IN 14SOP |
2,766 | 0.00 |
RFQ |
Datasheet |
Tube | 74LVQ | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.5V | 2.2V | 13.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LVQ14SJXIC INVERT SCHMITT 6CH 1-IN 14SOP |
3,887 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVQ | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.5V | 2.2V | 13.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LVQ32SJIC GATE OR 4CH 2-INP 14SOP |
3,140 | 0.00 |
RFQ |
Datasheet |
Tube | 74LVQ | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 9ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LVQ32SJXIC GATE OR 4CH 2-INP 14SOP |
2,036 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVQ | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 9ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
DM74ALS04BSJIC INVERTER 6CH 1-INP 14SOP |
2,759 | 0.00 |
RFQ |
Datasheet |
Tube | 74ALS | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | Surface Mount |
|
|
DM74ALS04BSJXIC INVERTER 6CH 1-INP 14SOP |
3,690 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74ALS | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | Surface Mount |
|
|
74AC11MTCIC GATE AND 3CH 3-INP 14TSSOP |
2,172 | 0.00 |
RFQ |
Datasheet |
Tube | 74AC | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74AC11MTCXIC GATE AND 3CH 3-INP 14TSSOP |
3,788 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74AC | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74ACTQ14MTCIC INVERTER 6CH 1-INP 14TSSOP |
2,426 | 0.00 |
RFQ |
Datasheet |
Tube | 74ACTQ | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74ACTQ14MTCXIC INVERTER 6CH 1-INP 14TSSOP |
2,766 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74ACTQ | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 4.5V ~ 5.5V | 2 µA | 24mA, 24mA | 0.8V | 2V | 10ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LCX06MTCX_SF501652IC INVERTER OD 6CH 1-INP 14TSSOP |
2,552 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LCX | Obsolete | Inverter | 6 | 1 | Open Drain | 2V ~ 3.6V | 10 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.7ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LCX08MTCX_SF501639IC GATE AND 4CH 2-INP 14TSSOP |
2,461 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LCX | Obsolete | AND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LCX11MTCIC GATE AND 3CH 3-INP 14TSSOP |
23,159 | 0.21 |
RFQ |
Datasheet |
Bulk,Tube | 74LCX | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LCX86SJIC GATE XOR 4CH 2-INP 14SOP |
2,650 | 0.00 |
RFQ |
Datasheet |
Tube | 74LCX | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74LCX86SJXIC GATE XOR 4CH 2-INP 14SOP |
3,868 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LCX | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 6.5ns @ 3.3V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74VHC27MTCIC GATE NOR 3CH 3-INP 14TSSOP |
3,390 | 0.00 |
RFQ |
Datasheet |
Tube | 74VHC | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74VHC27SJIC GATE NOR 3CH 3-INP 14SOP |
3,344 | 0.00 |
RFQ |
Datasheet |
Tube | 74VHC | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
|
74VHC27SJXIC GATE NOR 3CH 3-INP 14SOP |
2,553 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | 74VHC | Obsolete | NOR Gate | 3 | 3 | - | 2V ~ 5.5V | 2 µA | 8mA, 8mA | 0.5V | 1.5V | 7.9ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount |
|
DM74ALS804ANIC GATE NAND 6CH 2-INP 20DIP |
2,730 | 0.00 |
RFQ |
Datasheet |
Tube | 74ALS | Obsolete | NAND Gate | 6 | 2 | - | 4.5V ~ 5.5V | - | 15mA, 24mA | 0.8V | 2V | 8ns @ 5V, 50pF | 0°C ~ 70°C | Through Hole |
