| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Color | CCT(K) | Wavelength | Configuration | LuminousFlux@Current/Temperature | Current-Test | Temperature-Test | Voltage-Forward(Vf)(Typ) | Lumens/Watt@Current-Test | Current-Max | CRI(ColorRenderingIndex) | ViewingAngle | Features | Size/Dimension | Height | LightEmittingSurface(LES) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CXA2540-0000-000N00V40E5LED HB XLAMP CXA2540 |
2,920 | 8.24 |
RFQ |
Datasheet |
Tray | XLamp® CXA2540 | Active | Chip On Board (COB) | White, Neutral | 4000K | - | Square | 4703lm (4545lm ~ 4860lm) | 1.1A | 85°C | 37V | 116 lm/W | 2.1A | 70 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB2530-0000-000N0HU440GLED COB CXB2530 4000K WHT SMD |
107 | 8.60 |
RFQ |
Datasheet |
Tray | Xlamp® CXB2530 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 4093lm (3955lm ~ 4230lm) | 800mA | 85°C | 36V | 142 lm/W | 1.6A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CXB1310-0000-000N0UK230GLED COB XLAMP CXB1310 3000K SQ |
670 | 11.34 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1310 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1245lm (1200lm ~ 1290lm) | 350mA | 85°C | 36V | 99 lm/W | 700mA | 90 | 115° | - | 13.35mm L x 13.35mm W | 1.55mm | 6.00mm Dia |
|

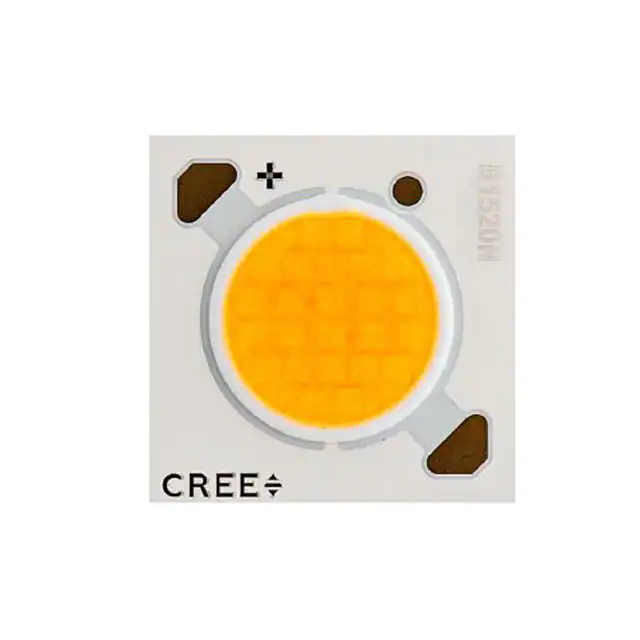

CXB1520-0000-000N0UP230GLED COB XLAMP CXB1520 3000K SQ |
792 | 17.82 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1520 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 1898lm (1830lm ~ 1965lm) | 500mA | 85°C | 33V | 115 lm/W | 1.4A | 90 | 115° | - | 15.85mm L x 15.85mm W | 1.55mm | 9.00mm Dia |
|
CXA3050-0000-000N0HX250FCREE XLAMP CXA3050 23MM WHITE |
104 | 18.90 |
RFQ |
Datasheet |
Tray | XLamp® CXA3050 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 5800lm (5590lm ~ 6010lm) | 1.4A | 85°C | 37V | 112 lm/W | 2.5A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
CMA3090-0000-000R0H0A40GXLAMP CMA LIGHT EMITTING DIODE W |
109 | 30.00 |
RFQ |
Datasheet |
Tray | XLamp® CMA3090 | Active | Chip On Board (COB) | White, Neutral | 4000K 3-Step MacAdam Ellipse | - | Square | 12372lm (Typ) | 1.2A | 85°C | 68V | 152 lm/W | 2.4A | 80 | 115° | - | 27.35mm L x 27.35mm W | 1.70mm | 23.00mm Dia |
|
CXA1512-0000-000N00M40E3LED COB CXA1512 COOL WHT SQUARE |
343 | 2.70 |
RFQ |
Datasheet |
Tray | XLamp® CXA1512 | Active | Chip On Board (COB) | White, Cool | 5000K | - | Square | 1538lm (1485lm ~ 1590lm) | 350mA | 85°C | 37V | 119 lm/W | 600mA | 70 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
CXA2520-0000-000N0HR250GLED COB CXA2520 5000K WHITE SMD |
289 | 5.38 |
RFQ |
Datasheet |
Tray | XLamp® CXA2520 | Active | Chip On Board (COB) | White, Cool | 5000K 3-Step MacAdam Ellipse | - | Square | 2510lm (2420lm ~ 2600lm) | 550mA | 85°C | 36V | 127 lm/W | 1.25A | 80 | 115° | - | 23.85mm L x 23.85mm W | 1.70mm | 19.00mm Dia |
|
CMU1006-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W |
396 | 2.40 |
RFQ |
Datasheet |
Tray | XLamp® CMU1006 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 750lm (Typ) | 180mA | 85°C | 33.7V | 124 lm/W | 480mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1006-0000-000N0Z0A27HXLAMP CMU LIGHT EMITTING DIODE W |
380 | 2.40 |
RFQ |
Datasheet |
Tray | XLamp® CMU1006 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 714lm (Typ) | 180mA | 85°C | 33.7V | 118 lm/W | 480mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1010-0000-000N0Z0A27HXLAMP CMU LIGHT EMITTING DIODE W |
400 | 3.02 |
RFQ |
Datasheet |
Tray | XLamp® CMU1010 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1055lm (Typ) | 270mA | 85°C | 33.7V | 116 lm/W | 720mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1010-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W |
372 | 3.02 |
RFQ |
Datasheet |
Tray | XLamp® CMU1010 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1144lm (Typ) | 270mA | 85°C | 33.7V | 126 lm/W | 720mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1013-0000-000N0Z0A27HXLAMP CMU LIGHT EMITTING DIODE W |
400 | 3.94 |
RFQ |
Datasheet |
Tray | XLamp® CMU1013 | Active | Chip On Board (COB) | White, Warm | 2700K 2-Step MacAdam Ellipse | - | Square | 1378lm (Typ) | 360mA | 85°C | 33.7V | 114 lm/W | 960mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1013-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W |
400 | 3.94 |
RFQ |
Datasheet |
Tray | XLamp® CMU1013 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1449lm (Typ) | 360mA | 85°C | 33.7V | 119 lm/W | 960mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
|
CMU1013-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W |
382 | 3.94 |
RFQ |
Datasheet |
Tray | XLamp® CMU1013 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1500lm (Typ) | 360mA | 85°C | 33.7V | 124 lm/W | 960mA | 95 | 115° | - | 13.50mm L x 13.50mm W | 1.50mm | 9.80mm Dia |
|
CXB1304-0000-000C0HC230GLED ARRAY 6MM 3000K 80CRI 440LM |
105 | 1.82 |
RFQ |
Datasheet |
Tray | Xlamp® CXB1304 | Active | Chip On Board (COB) | White, Warm | 3000K 3-Step MacAdam Ellipse | - | Square | 458lm (440lm ~ 475lm) | 400mA | 85°C | 9V | 127 lm/W | 1A | 80 | 115° | - | 13.35mm L x 13.35mm W | 1.70mm | 6.00mm Dia |
|
CXA1507-0000-000N00G227GLED COB CXA1507 2700K WHITE SMD |
2,001 | 1.86 |
RFQ |
Datasheet |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Warm | 2700K 3-Step MacAdam Ellipse | - | Square | 810lm (780lm ~ 840lm) | 200mA | 85°C | 36V | 113 lm/W | 375mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CXA1507-0000-000F0HG450FLED COB CXA1507 COOL WHT SQUARE |
128 | 1.88 |
RFQ |
Datasheet |
Tray | XLamp® CXA1507 | Active | Chip On Board (COB) | White, Cool | 5000K 4-Step MacAdam Ellipse | - | Square | 870lm (840lm ~ 900lm) | 400mA | 85°C | 18V | 121 lm/W | 750mA | 80 | 115° | - | 15.85mm L x 15.85mm W | 1.70mm | 8.90mm Dia |
|
|
CMU1516-0000-000N0Z0A40HXLAMP CMU LIGHT EMITTING DIODE W |
224 | 5.14 |
RFQ |
Datasheet |
Tray | XLamp® CMU1516 | Active | Chip On Board (COB) | White, Neutral | 4000K 2-Step MacAdam Ellipse | - | Square | 1955lm (Typ) | 450mA | 85°C | 33.7V | 129 lm/W | 1.2A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
|
|
CMU1516-0000-000N0Z0A30HXLAMP CMU LIGHT EMITTING DIODE W |
197 | 5.14 |
RFQ |
Datasheet |
Tray | XLamp® CMU1516 | Active | Chip On Board (COB) | White, Warm | 3000K 2-Step MacAdam Ellipse | - | Square | 1889lm (Typ) | 450mA | 85°C | 33.7V | 125 lm/W | 1.2A | 95 | 115° | - | 19.00mm L x 19.00mm W | 1.50mm | 14.50mm Dia |
